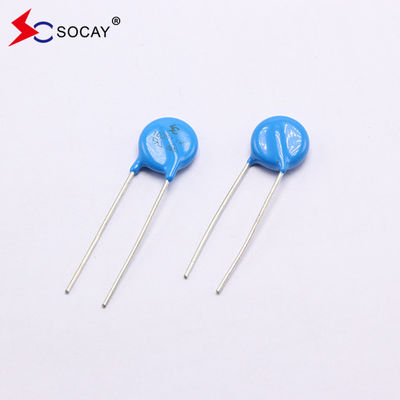

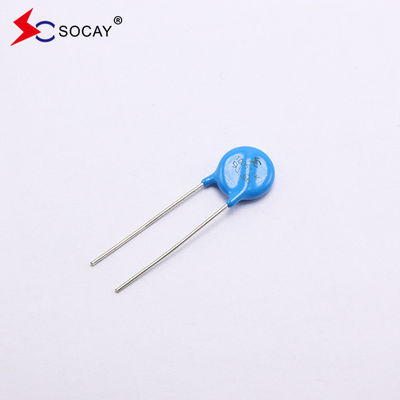

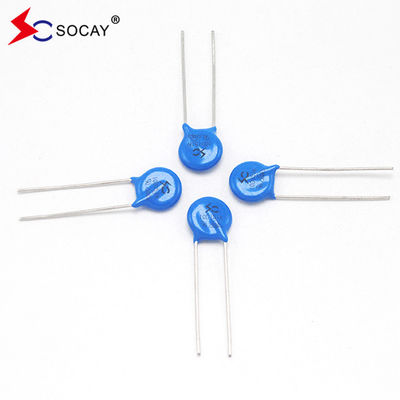

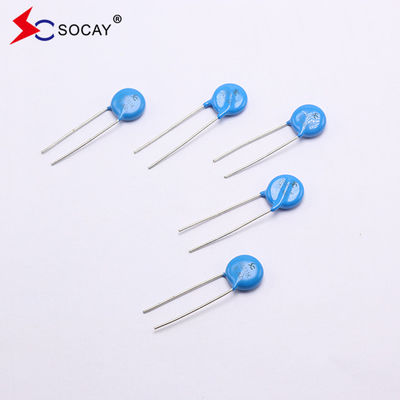

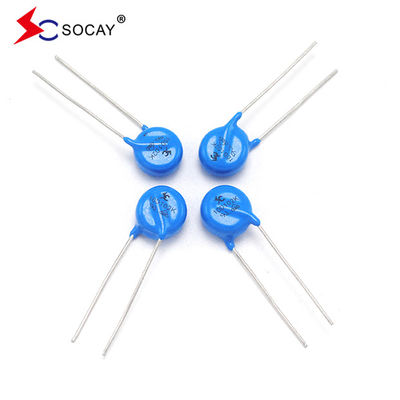

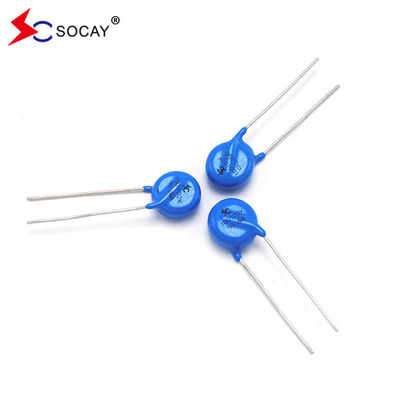

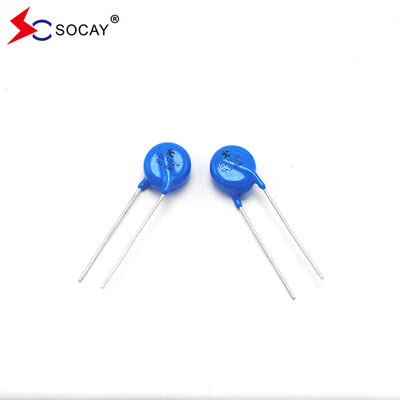

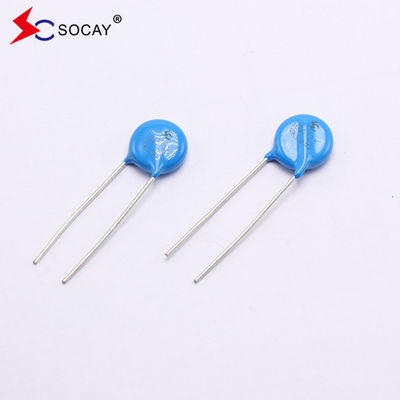

10D Series Metal Oxide Varistor 10D820K / 10D820KJ Ф10mm 135VC Rated Power 0.4W

500PCS
MOQ
Negotiable
Price
10D Series Metal Oxide Varistor 10D820K / 10D820KJ Ф10mm 135VC Rated Power 0.4W
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Metal Oxide Varistor
Package Type: Ф10mm
VAC: 50V
VDC: 65V
Varistor Voltage: 82(74~90)V
IP: 25A
VC: 135V
Rated Power: 0.4W
Typ. Capacitance: 1200pF
Withstanding Surge Current: 2.5KA (1 Time)
Highlight:

10D Metal Oxide Varistor

,

Metal Oxide Varistor 0.4W

,

10D820K
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: 10D820K/10D820KJ
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

10D820K/10D820KJ 10D Series Metal Oxide Varistor Ф10mm 135VC Rated Power 0.4W



DATASHEET:  10D Series_v2306.1.pdf



Type Number Maximum Allowable voltage Varistor Voltage

Maximum

Clamping

Voltage

Withstanding

Surge

Current

Maximum

Energy

(10/1000μs)

Rated

Power

 Typical Capacitance (Reference)
Standard High Surge VAC (V) VDC (V)

V1mA

(V)

 IP (A) VC (V)

I(A)

Standard

I(A)

High Surge

(J)

Standard

(J)

High Surge

 (W) @1KHZ (pf)
              1 Time 2 Times 1 Time 2 Times
10D180K 10D180KJ 11 14 18(15~21.6) 5 36 500 250 2000 1000 2.1 3.0 0.05 5600
10D220K 10D220KJ 14 18 22(19.5~26) 5 43 500 250 2000 1000 2.5 5.0 0.05 4500
10D270K 10D270KJ 17 22 27(24~30) 5 53 500 250 2000 1000 3.0 6.0 0.05 3700
10D330K 10D330KJ 20 26 33(29.5~36.5) 5 66 500 250 2000 1000 4.0 7.0 0.05 3000
10D390K 10D390KJ 25 31 39(35~43) 5 77 500 250 2000 1000 4.6 9.0 0.05 2400
10D470K 10D470KJ 30 38 47(42~54) 5 93 500 250 2000 1000 5.5 11.0 0.05 2100
10D560K 10D560KJ 35 45 56(50~62) 5 100 500 250 2000 1000 7.0 13.0 0.05 1800
10D680K 10D680KJ 40 56 68(61~75) 5 135 500 250 2000 1000 8.2 15.0 0.05 1500
10D820K 10D820KJ 50 65 82(74~90) 25 135 2500 1250 3500 2500 12.0 17.0 0.4 1200
10D101K 10D101KJ 60 85 100(90~110) 25 165 2500 1250 3500 2500 15.0 18.0 0.4 1000
10D121K 10D121KJ 75 100 120(108~132) 25 200 2500 1250 3500 2500 18.0 21.0 0.4 830
10D151K 10D151KJ 95 125 150(135~165) 25 250 2500 1250 3500 2500 22.0 25.0 0.4 670
10D181K 10D181KJ 115 150 180(162~198) 25 300 2500 1250 3500 2500 27.0 30.0 0.4 560
10D201K 10D201KJ 130 170 200(185~225) 25 340 2500 1250 3500 2500 30.0 35.0 0.4 500
10D221K 10D221KJ 140 180 220(198~242) 25 360 2500 1250 3500 2500 32.0 39.0 0.4 450
10D241K 10D241KJ 150 200 240(216~264) 25 395 2500 1250 3500 2500 35.0 42.0 0.4 420
10D271K 10D271KJ 175 225 270(243~297) 25 455 2500 1250 3500 2500 40.0 49.0 0.4 370
10D301K 10D301KJ 190 250 300(270~330) 25 500 2500 1250 3500 2500 40.0 54.0 0.4 330
10D331K 10D331KJ 210 275 330(297~363) 25 550 2500 1250 3500 2500 40.0 58.0 0.4 300
10D361K 10D361KJ 230 300 360(324~396) 25 595 2500 1250 3500 2500 43.0 65.0 0.4 280
10D391K 10D391KJ 250 320 390(351~429) 25 650 2500 1250 3500 2500 47.0 70.0 0.4 260
10D431K 10D431KJ 275 350 430(387~473 25 710 2500 1250 3500 2500 60.0 80.0 0.4 230
10D471K 10D471KJ 300 385 470(423~517) 25 775 2500 1250 3500 2500 65.0 85.0 0.4 210
10D511K 10D511KJ 320 415 510(459~561) 25 845 2500 1250 3500 2500 70.0 90.0 0.4 200
10D561K 10D561KJ 350 460 560(504~616) 25 925 2500 1250 3500 2500 70.0 92.0 0.4 180
10D621K 10D621KJ 385 505 620(558~682) 25 1025 2500 1250 3500 2500 70.0 95.0 0.4 160
10D681K 10D681KJ 420 560 680(612~748) 25 1120 2500 1250 3500 2500 70.0 98.0 0.4 150
10D751K 10D751KJ 460 615 750(675~825) 25 1240 2500 1250 3500 2500 70.0 100.0 0.4 130
10D781K 10D781KJ 485 640 780(702~858) 25 1290 2500 1250 3500 2500 80.0 105.0 0.4 130
10D821K 10D821KJ 510 670 820(738~902) 25 1355 2500 1250 3500 2500 85.0 110.0 0.4 120
10D911K 10D911KJ 550 745 910(819~1001) 25 1500 2500 1250 3500 2500 93.0 130.0 0.4 110
10D102K 10D102KJ 625 825 1000(900~1100) 25 1650 2500 1250 3500 2500 102.0 140.0 0.4 100
10D112K 10D112KJ 680 895 1100(990~1210) 25 1814 2500 1250 3500 2500 115.0 155.0 0.4 90



10D Series Metal Oxide Varistor 10D820K / 10D820KJ Ф10mm 135VC Rated Power 0.4W 0



Description:

The 10D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by offering higher surge ratings than ever before available in such small discs.
The maximum peak surge current rating can reach up to 3.5KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients and abnormal fast transients from the power source.





Applications:



Power protection, Switches, POS machines, Lightning arresters, Building intercoms, Monitoring systems, Parking cards, Transmission systems, Instrumentation,Meters, Communication products, Control panels.







Material No Radioactive Material
Operating Temperature -40℃ ~ +85℃
Storage Temperature -55℃ ~ +125℃
Body Nickel Plated
Leads Tin Plated
Devices with No lead Nickel Plated





Part Number Quantity Packaging Option Packaging Specification
10DXXXXX 500 Plastic bag Bulk Pack

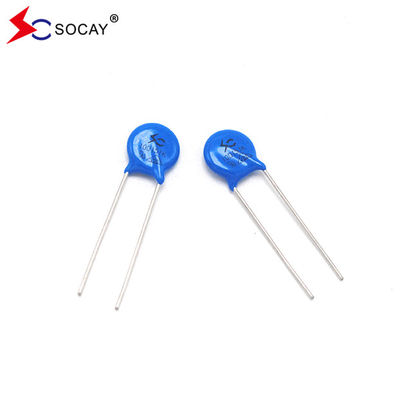

10D Series Metal Oxide Varistor 10D820K / 10D820KJ Ф10mm 135VC Rated Power 0.4W 1

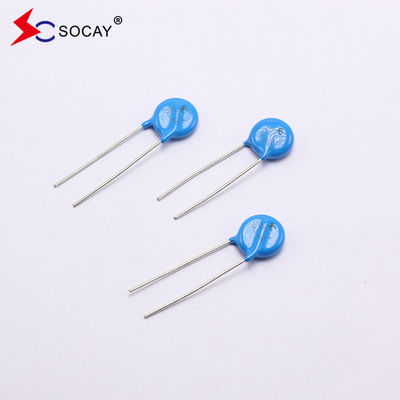

10D Series Metal Oxide Varistor 10D820K / 10D820KJ Ф10mm 135VC Rated Power 0.4W 2

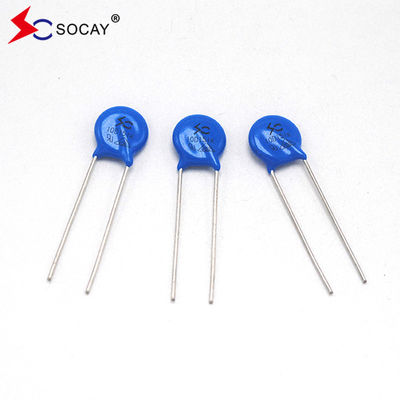

10D Series Metal Oxide Varistor 10D820K / 10D820KJ Ф10mm 135VC Rated Power 0.4W 3

FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ ?
A: MOQ depend on the type of product, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
