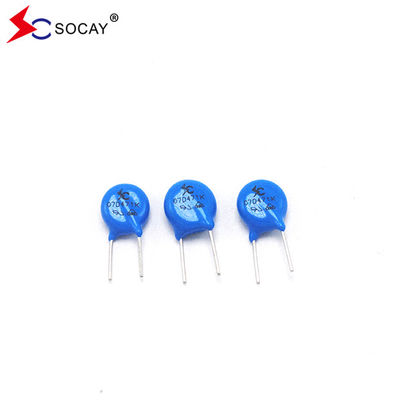

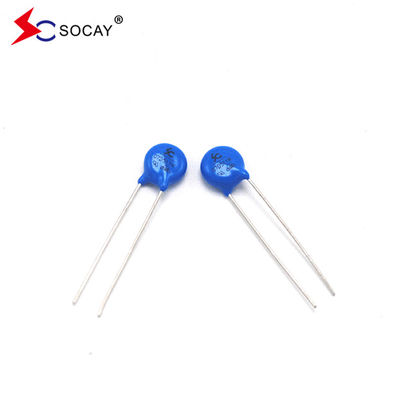

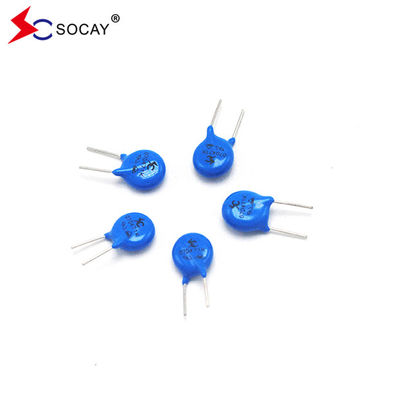

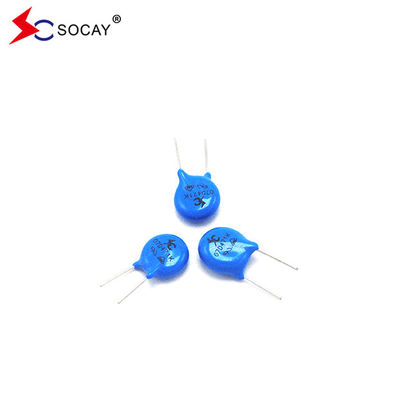

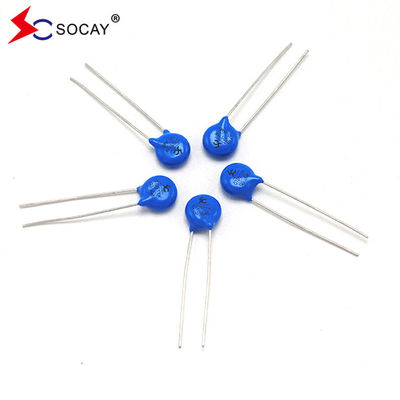

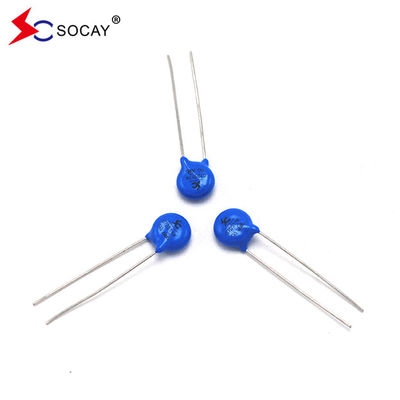

07D Series Metal Oxide Varistor 07D820K/07D820KJ, Ф7mm 82V Varistor Voltage MOV 1200A
DATASHEET: 07D Series_v2306.1.pdf
MOV Varistor Slection Method
1,To know the customer's product, operating voltage, application port, protection level.
2,DC (operating voltage) > 1.5 times the operating voltage in the circuit when used in high voltage products
3,Select the size, voltage and flow rate of the device according to the application port and protection class.
| Type Number |
Maximum Allowable voltage |
Varistor Voltage |
Maximum
Clamping
Voltage
|
Withstanding
Surge
Current
|
Maximum
Energy
(10/1000μs)
|
Rated
Power
|
Typical Capacitance (Reference) |
| Standard |
High Surge |
VAC (V) |
VDC (V) |
V1mA
(V)
|
IP (A) |
VC (V) |
I(A)
Standard
|
I(A)
High Surge
|
(J)
Standard
|
(J)
High Surge
|
(W) |
@1KHZ (pf) |
| 1 Time |
2 Times |
1 Time |
2 Times |
| 07D180K |
07D180KJ |
11 |
14 |
18(15~21.6) |
2.5 |
36 |
250 |
125 |
500 |
250 |
0.9 |
2.0 |
0.02 |
2800 |
| 07D220K |
07D220KJ |
14 |
18 |
22(19.5~26) |
2.5 |
43 |
250 |
125 |
500 |
250 |
1.1 |
2.4 |
0.02 |
2300 |
| 07D270K |
07D270KJ |
17 |
22 |
27(24~30) |
2.5 |
53 |
250 |
125 |
500 |
250 |
1.4 |
3.0 |
0.02 |
1800 |
| 07D330K |
07D330KJ |
20 |
26 |
33(29.5~36.5) |
2.5 |
66 |
250 |
125 |
500 |
250 |
1.7 |
3.5 |
0.02 |
1500 |
| 07D390K |
07D390KJ |
25 |
31 |
39(35~43) |
2.5 |
77 |
250 |
125 |
500 |
250 |
2.1 |
4.0 |
0.02 |
1300 |
| 07D470K |
07D470KJ |
30 |
38 |
47(42~54) |
2.5 |
93 |
250 |
125 |
500 |
250 |
2.5 |
5.0 |
0.02 |
1100 |
| 07D560K |
07D560KJ |
35 |
45 |
56(50~62) |
2.5 |
110 |
250 |
125 |
500 |
250 |
3.1 |
6.0 |
0.02 |
900 |
| 07D680K |
07D680KJ |
40 |
56 |
68(61~75) |
2.5 |
135 |
250 |
125 |
500 |
250 |
3.6 |
7.0 |
0.02 |
740 |
| 07D820K |
07D820KJ |
50 |
65 |
82(74~90) |
10 |
135 |
1200 |
600 |
1750 |
1250 |
5.5 |
10.0 |
0.25 |
600 |
| 07D101K |
07D101KJ |
60 |
85 |
100(90~110) |
10 |
165 |
1200 |
600 |
1750 |
1250 |
6.5 |
12.0 |
0.25 |
500 |
| 07D121K |
07D121KJ |
75 |
100 |
120(108~132) |
10 |
200 |
1200 |
600 |
1750 |
1250 |
7.8 |
13.0 |
0.25 |
420 |
| 07D151K |
07D151KJ |
95 |
125 |
150(135~165) |
10 |
250 |
1200 |
600 |
1750 |
1250 |
9.7 |
13.0 |
0.25 |
330 |
| 07D181K |
07D181KJ |
115 |
150 |
180(162~198) |
10 |
300 |
1200 |
600 |
1750 |
1250 |
11.7 |
16.0 |
0.25 |
280 |
| 07D201K |
07D201KJ |
130 |
170 |
200(180~220) |
10 |
340 |
1200 |
600 |
1750 |
1250 |
13.0 |
17.0 |
0.25 |
250 |
| 07D221K |
07D221KJ |
140 |
180 |
220(198~242) |
10 |
360 |
1200 |
600 |
1750 |
1250 |
14.0 |
19.0 |
0.25 |
230 |
| 07D241K |
07D241KJ |
150 |
200 |
240(216~264) |
10 |
395 |
1200 |
600 |
1750 |
1250 |
15.0 |
21.0 |
0.25 |
210 |
| 07D271K |
07D271KJ |
175 |
225 |
270(243~297) |
10 |
455 |
1200 |
600 |
1750 |
1250 |
18.0 |
24.0 |
0.25 |
185 |
| 07D301K |
07D301KJ |
190 |
250 |
300(270~330) |
10 |
500 |
1200 |
600 |
1750 |
1250 |
20.0 |
26.0 |
0.25 |
165 |
| 07D331K |
07D331KJ |
210 |
275 |
330(297~363) |
10 |
550 |
1200 |
600 |
1750 |
1250 |
23.0 |
28.0 |
0.25 |
150 |
| 07D361K |
07D361KJ |
230 |
300 |
360(324~396) |
10 |
595 |
1200 |
600 |
1750 |
1250 |
25.0 |
32.0 |
0.25 |
140 |
| 07D391K |
07D391KJ |
250 |
320 |
390(351~429) |
10 |
650 |
1200 |
600 |
1750 |
1250 |
25.0 |
35.0 |
0.25 |
130 |
| 07D431K |
07D431KJ |
275 |
350 |
430(387~473 |
10 |
710 |
1200 |
600 |
1750 |
1250 |
28.0 |
40.0 |
0.25 |
115 |
| 07D471K |
07D471KJ |
300 |
385 |
470(423~517) |
10 |
775 |
1200 |
600 |
1750 |
1250 |
30.0 |
42.0 |
0.25 |
105 |
| 07D511K |
07D511KJ |
320 |
415 |
510(459~561) |
10 |
845 |
1200 |
600 |
1750 |
1250 |
30.0 |
45.0 |
0.25 |
100 |
| 07D561K |
07D561KJ |
350 |
460 |
560(504~616) |
10 |
925 |
1200 |
600 |
1750 |
1250 |
30.0 |
49.0 |
0.25 |
90 |
| 07D621K |
07D621KJ |
385 |
505 |
620(558~682) |
10 |
1025 |
1200 |
600 |
1750 |
1250 |
33.0 |
55.0 |
0.25 |
80 |
| 07D681K |
07D681KJ |
420 |
560 |
680(612~748) |
10 |
1120 |
1200 |
600 |
1750 |
1250 |
33.0 |
60.0 |
0.25 |
75 |
| 07D751K |
07D751KJ |
460 |
615 |
750(675~825) |
10 |
1240 |
1200 |
600 |
1750 |
1250 |
67.2 |
65.0 |
0.25 |
70 |
| 07D781K |
07D781KJ |
485 |
640 |
780(702~858) |
10 |
1290 |
1200 |
600 |
1750 |
1250 |
67.2 |
65.0 |
0.25 |
70 |
| 07D821K |
07D821KJ |
510 |
670 |
820(738~902) |
10 |
1355 |
1200 |
600 |
1750 |
1250 |
67.2 |
70.0 |
0.25 |
60 |
Remark: Voltage>33V, K is ±10%
Description:
The 07D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by offering higher surge ratings than ever before available in such small discs.
The maximum peak surge current rating can reach up to 1.75KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients and abnormal fast transients from the power source.
| Material |
No Radioactive Material |
| Operating Temperature |
-40℃ ~ +85℃ |
| Storage Temperature |
-55℃ ~ +125℃ |
| Body |
Nickel Plated |
| Leads |
Tin Plated |
| Devices with No lead |
Nickel Plated |
Classification:
SMD:0402,0603,0805,1206,1210,1812,2220
DIP:5D,7D,10D,14D,20D,25D,32D
Current:1A~15KA
The smaller the size, the lower the price,
The lower the throughput, the larger the size,
The higher the throughput, the more expensive,
The higher the voltage, the thicker the tube.
Response time≤10NS
