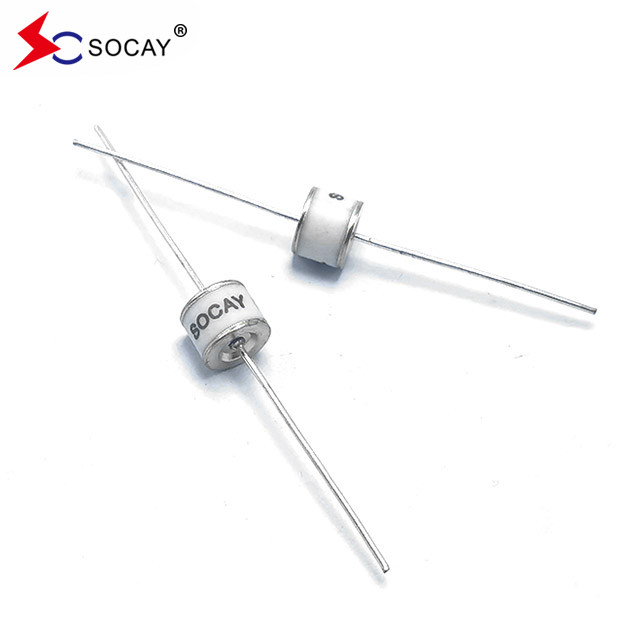

800V Axial Leaded Ceramic GDT Tube SC2E8-800ML Classical Components

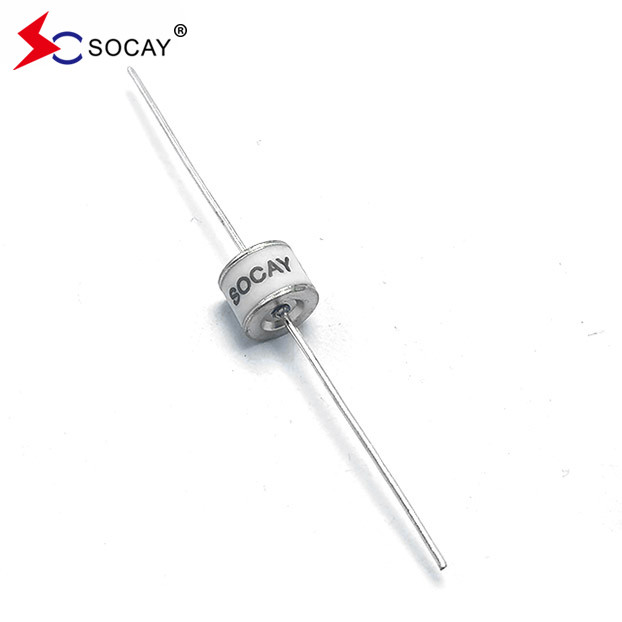

800V Axial Leaded Ceramic GDT Tube SC2E8-800ML Classical Components

DATASHEET:   SC2E8_v91.1.pdf

Gas discharge tube (GDT) typical application circuit
Ceramic gas discharge tubes (GDT) are widely used in communication lines and power line protection of electronic products such as communications, security, and industry. When used in power line protection, ceramic gas discharge tubes (GDT) should
Applied in series with MOV or TVS, as shown in Figure 2. Figure 3 shows the RJ45 interface protection, Figure 4 and Figure 5 show the RS485 interface and BNC respectively.
Two-level interface protection scheme, the first level uses ceramic gas discharge tube.













Main characteristics of gas discharge tube
>DC breakdown voltage: 70~7500 V
>Impact discharge current (8/20 μs): maximum 100 kA
>Impact discharge current (10/350 μs): maximum 100 kA
>Power frequency discharge current (1 s): maximum 20 A
>Power frequency discharge current (0.2 s): maximum 300 A
>Arc voltage: 10~35 V
>Insulation resistance: minimum 1 GΩ
>Capacitance: 0.2 pF minimum




Characteristics of Ceramic Gas Discharge Tube (GDT)
> The junction capacitance is low, the junction capacitance of most series products does not exceed 2pF, and the junction capacitance of extra-large flow products is in the tens to tens of picofarads;
> Large flow rate, our ceramic gas discharge tube (GDT) single unit has a flow rate range of 8/20μs from 500A to 100kA;
> High insulation resistance, generally above 1GΩ, not easy to age and has high reliability;
> DC breakdown voltage range is 75V~6000V, pulse breakdown voltage range is 600V~7800V;
> Various packages, including SMD devices and plug-in devices, two-terminal devices and three-terminal devices, to meet different application needs;
> Easy to install;

About SOCAY

we are manufacturer and supplier of NTC ,DIODES ect passive components more than 20 years from China .if you have any request please contact us freely .
