Name: Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection
Brand: Shenzhen Socay Electronics Co., Ltd.
SKU: SC2E8-99L
Availability: InStock

Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection

1000PCS

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Gas Discharge Tube

Size: φ8*6mm

DC Spark-over Voltage @100V/μs: 90V±20%

Max. Spark-over Impulse Voltage @100V/μs: 500V

Max. Spark-over Impulse Voltage @1KV/μs: 600V

Min. Insulation Resistance: 1GΩ (@50V)

Nom. Impulse Discharge Current: 20KA

Max. Impulse Discharge Current: 25KA

Storage Temperature: -40°C~+90°C

Max. Capacitance: 1.5pF

Highlight:

Gas Discharge Tube Axial Leaded

Gas Discharge Tube GDT

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: SC2E8-99L

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

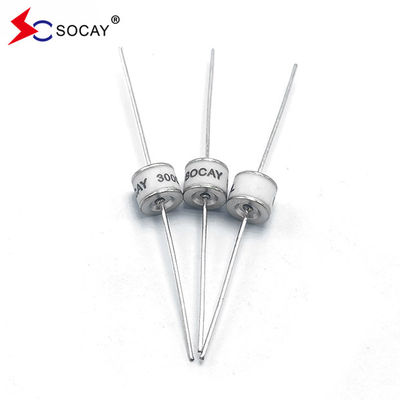

Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection

Product Description

90V±20% Ceramic Gas Discharge Tube SC2E8-90HL, Axial Leaded GDT for Telecom SLIC Protection

DATASHEET: SC2E8_v91.1.pdf

Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection 0

Part Number	Marking	DC Spark- over Voltage	Maximum Impulse Spark-over Voltage		Minimum Insulation Resistance	Maximum Capacitance	Arc Voltage	Service Life
								Nominal Impulse Discharge Current	Max Impulse Discharge Current	Nominal Impulse Discharge Current	Impulse Life
		@100V/S	@100V/μs	@1KV/μs		@1MHz	@1A	@8/20μs ±5 times	@8/20μs 1 time	@50Hz 1 Sec 10 times	@10/1000μs 300 times
SC2E8-75H SC2E8-75HL SC2E8-75HSMD	SOCAY 75H	75V±20%	＜500V	＜600V	1 GΩ (at 25V)	＜1.5pF	~15V	20KA	25KA	20A	200A
SC2E8-90H SC2E8-90HL SC2E8-90HSMD	SOCAY 90H	90V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.5pF	~15V	20KA	25KA	20A	200A
SC2E8-150H SC2E8-150HL SC2E8-150HSMD	SOCAY 150H	150V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-230H SC2E8-230HL SC2E8-230HSMD	SOCAY 230H	230V±20%	＜600V	＜700V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-250H SC2E8-250HL SC2E8-250HSMD	SOCAY 250H	250V±20%	＜700V	＜800V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-300H SC2E8-300HL SC2E8-300HSMD	SOCAY 300H	300V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-350H SC2E8-350HL SC2E8-350HSMD	SOCAY 350H	350V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-420H SC2E8-420HL SC2E8-420HSMD	SOCAY 420H	420V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-470H SC2E8-470HL SC2E8-470HSMD	SOCAY 470H	470V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-600H SC2E8-600HL SC2E8-600HSMD	SOCAY 600H	600V±20%	＜1100V	＜1200V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-800H SC2E8-800HL SC2E8-800HSMD	SOCAY 800H	800V±20%	＜1200V	＜1400V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
Notes: 1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008 2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859

Applications:

Communication equipment.

CATV equipment.

Test equipment.

Data lines.

Power supplies.

Telecom SLIC protection.

Broadband equipment.

ADSL equipment, including ADSL2+.

XDSL equipment.

Satellite and CATV equipment.

Consumer electronics.

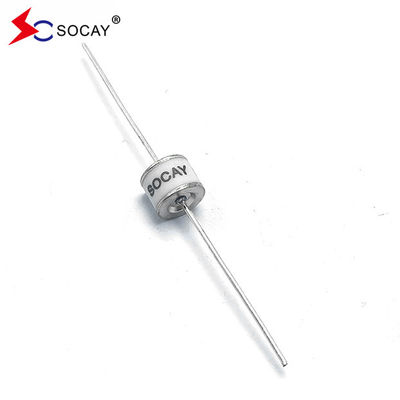

Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection 1

Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection 2

Ceramic Gas Discharge Tube SC2E8-90HL Axial Leaded GDT For Telecom SLIC Protection 3
