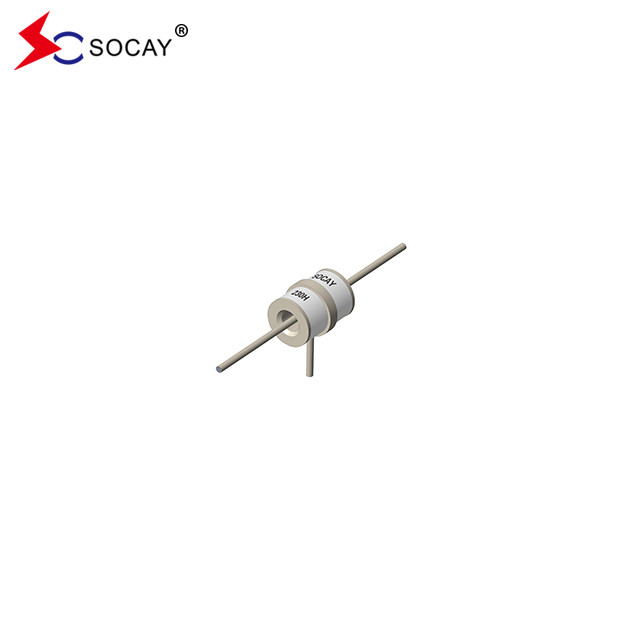

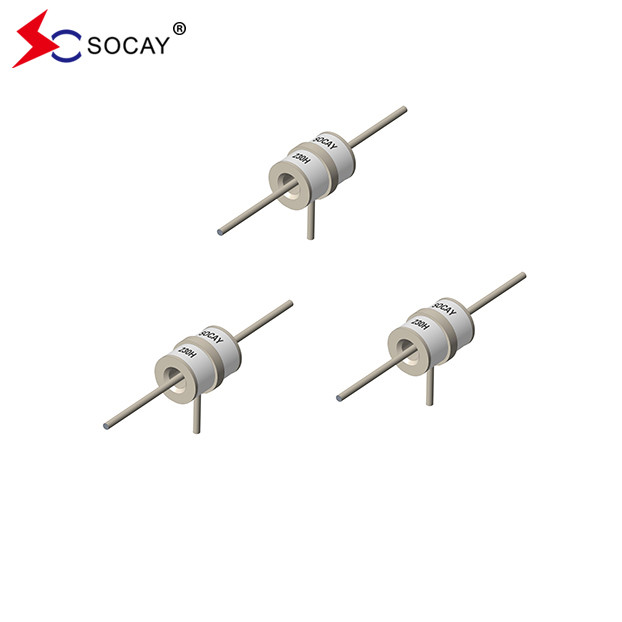

SC3E8-600HP GDT Gas Surge Arrester 3 Pole T Lead Devices Classical Components

Gas Surge Arrester SC3E8-600HP, 3 Pole "T" Lead Devices Gas Discharge Tube

DATASHEET:   SC3E8_v2308.1.pdf

Descriptions:

Gas discharge Tubes (GDT) are classical components for protecting the installations of the telecommunications. It is essential that IT and telecommunications systems -with their high-grade but sensitive electronic circuits - be protected by arresters. They are thus fitted at the input of the power supply system together with varistors and at the connection points to telecommunication lines. They have become equally indispensable for protecting base stations in mobile telephone systems as well as extensive cable television (CATV) networks with their repeaters and distribution systems.

Features:

Non-Radioactive.

RoHS compliant.

Low insertion loss.

Excellent response to fast rising transients.

Ultra low capacitance.

20KA surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5.

Applications:

Communication equipment.

CATV equipment.

Test equipment.

Data lines.

Power supplies.

Telecom SLIC protection.

Broadband equipment.

ADSL equipment, including ADSL2+.

XDSL equipment.

Satellite and CATV equipment.

Consumer electronics.
