Name: 20KA SMD Gas Discharge Tube SC2E8-600HSMD Surface Mount 2-Electrode GDT
Brand: SOCAY
SKU: SC2E8-600HSMD
Rating: 4.7 (141 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Gas Discharge Tube

Size: φ8*6mm

DC Spark-over Voltage @100V/μs: 600V±20%

Max. Spark-over Impulse Voltage @100V/μs: 1100V

Max. Spark-over Impulse Voltage @1KV/μs: 1200V

Max. Capacitance: 1.5pF

Nom. Impulse Discharge Current: 20KA

Storage Temperature: -40°C~+90°C

Arc Voltage: 20V

Highlight:

Gas Discharge Tube Surface Mount

20KA Gas Discharge Tube

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: SC2E8-600HSMD

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

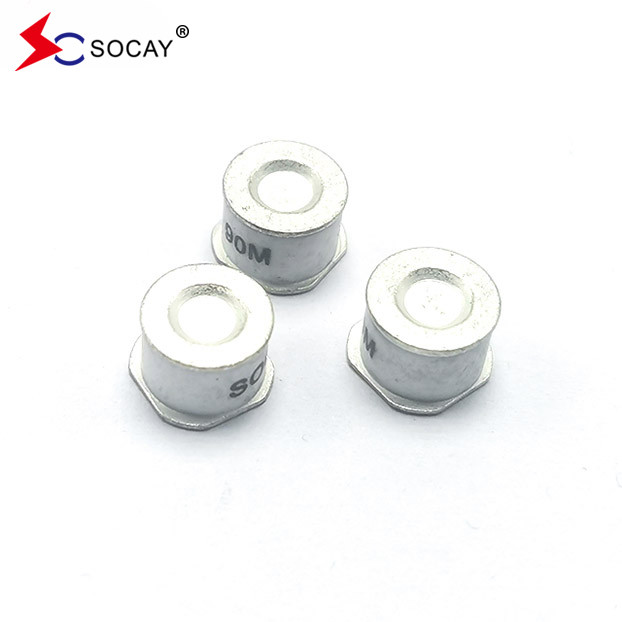

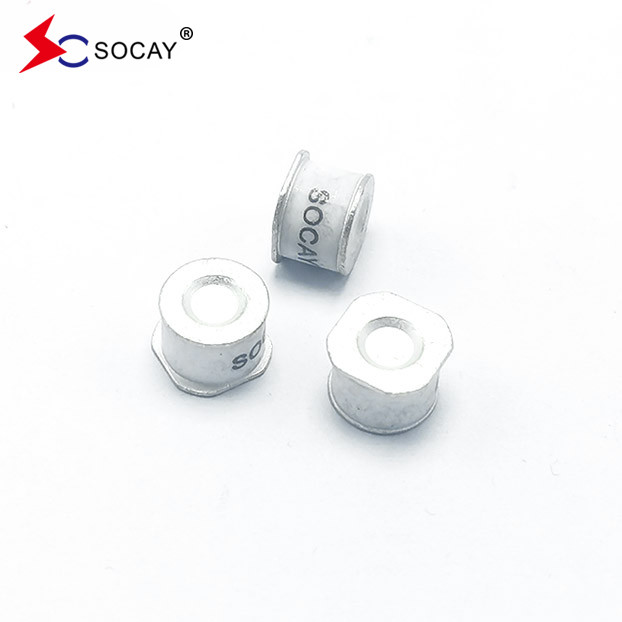

20KA SMD Gas Discharge Tube SC2E8-600HSMD Surface Mount 2-Electrode GDT

Product Description

20KA SMD Ceramic Gas Discharge Tube SC2E8-600HSMD, Surface Mount 2-Electrode GDT

DATASHEET: SC2E8_v91.1.pdf

20KA SMD Gas Discharge Tube SC2E8-600HSMD Surface Mount 2-Electrode GDT 0

20KA SMD Gas Discharge Tube SC2E8-600HSMD Surface Mount 2-Electrode GDT 1

Part Number	Marking	DC Spark- over Voltage	Maximum Impulse Spark-over Voltage		Minimum Insulation Resistance	Maximum Capacitance	Arc Voltage	Service Life
								Nominal Impulse Discharge Current	Max Impulse Discharge Current	Nominal Impulse Discharge Current	Impulse Life
		@100V/S	@100V/μs	@1KV/μs		@1MHz	@1A	@8/20μs ±5 times	@8/20μs 1 time	@50Hz 1 Sec 10 times	@10/1000μs 300 times
SC2E8-75H SC2E8-75HL SC2E8-75HSMD	SOCAY 75H	75V±20%	＜500V	＜600V	1 GΩ (at 25V)	＜1.5pF	~15V	20KA	25KA	20A	200A
SC2E8-90H SC2E8-90HL SC2E8-90HSMD	SOCAY 90H	90V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.5pF	~15V	20KA	25KA	20A	200A
SC2E8-150H SC2E8-150HL SC2E8-150HSMD	SOCAY 150H	150V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-230H SC2E8-230HL SC2E8-230HSMD	SOCAY 230H	230V±20%	＜600V	＜700V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-250H SC2E8-250HL SC2E8-250HSMD	SOCAY 250H	250V±20%	＜700V	＜800V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-300H SC2E8-300HL SC2E8-300HSMD	SOCAY 300H	300V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-350H SC2E8-350HL SC2E8-350HSMD	SOCAY 350H	350V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-420H SC2E8-420HL SC2E8-420HSMD	SOCAY 420H	420V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-470H SC2E8-470HL SC2E8-470HSMD	SOCAY 470H	470V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-600H SC2E8-600HL SC2E8-600HSMD	SOCAY 600H	600V±20%	＜1100V	＜1200V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
SC2E8-800H SC2E8-800HL SC2E8-800HSMD	SOCAY 800H	800V±20%	＜1200V	＜1400V	1 GΩ (at 100V)	＜1.5pF	~20V	20KA	25KA	20A	200A
Notes: 1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008 2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859

20KA SMD Gas Discharge Tube SC2E8-600HSMD Surface Mount 2-Electrode GDT 2

20KA SMD Gas Discharge Tube SC2E8-600HSMD Surface Mount 2-Electrode GDT 3

20KA SMD Gas Discharge Tube SC2E8-600HSMD Surface Mount 2-Electrode GDT 4

Cautions and Warnings:

Gas discharge tubes (GDT) must not be operated directly in power supply networks.
Gas discharge tubes (GDT) may become hot in case of longer periods of current stress (danger of burning).
Gas discharge tubes (GDT) may be used only within their specified values. In the event of overload, the head contacts may fail or the component may be destroyed.
Damaged Gas discharge tubes (GDT) must not be re-used.
