SMD Ceramic Gas Discharge Tube SC2E8-350MSMD Surface Mount Gas Tube Arrester

500PCS
MOQ
Negotiable
Price
SMD Ceramic Gas Discharge Tube SC2E8-350MSMD Surface Mount Gas Tube Arrester
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Gas Discharge Tube
Size: φ8*6mm
DC Spark-over Voltage @100V/μs: 350V±20%
Max. Spark-over Impulse Voltage @100V/μs: 800V
Max. Spark-over Impulse Voltage @1KV/μs: 900V
Min. Insulation Resistance: 1GΩ (@100V)
Nom. Impulse Discharge Current: 10KA
Max. Impulse Discharge Current: 20KA
Storage Temperature: -40°C~+90°C
Arc Voltage: 20V
Highlight:

SMD Gas Discharge Tube

,

Surface Mount Gas Discharge Tube

,

Ceramic Gas Tube Arrester
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SC2E8-350MSMD
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SMD Ceramic Gas Discharge Tube SC2E8-350MSMD, Surface Mount GDT Arrester



DATASHEET:   SC2E8_v91.1.pdf

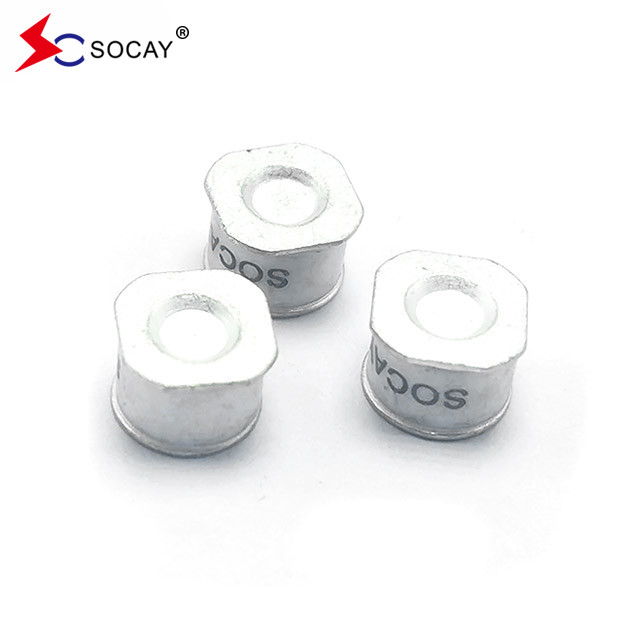

SMD Ceramic Gas Discharge Tube SC2E8-350MSMD Surface Mount Gas Tube Arrester 0

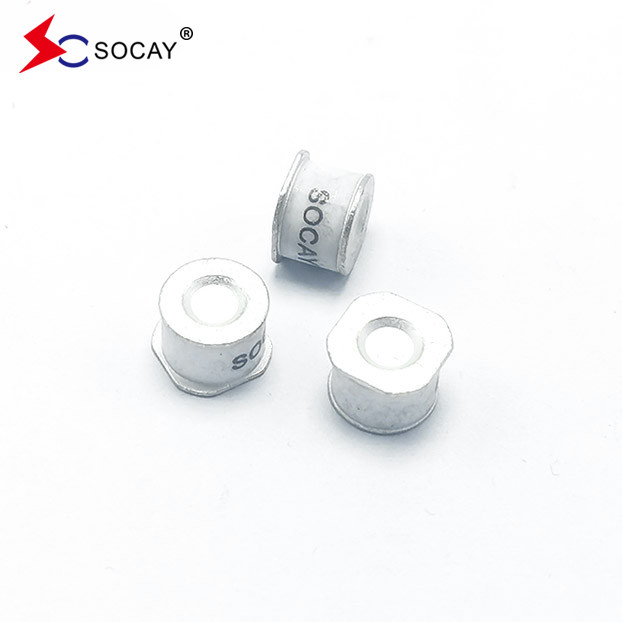

SMD Ceramic Gas Discharge Tube SC2E8-350MSMD Surface Mount Gas Tube Arrester 1

Part Number Marking

DC Spark-

over Voltage

 Maximum Impulse Spark-over Voltage Minimum Insulation Resistance Maximum Capacitance Arc Voltage Service Life


Nominal

Impulse Discharge Current

 Max Impulse Discharge Current

Nominal

Impulse Discharge Current

 Impulse Life
    @100V/S @100V/μs @1KV/μs   @1MHz @1A

@8/20μs

±5 times

@8/20μs

1 time

@50Hz

1 Sec

10 times

@10/1000μs

300 times

SC2E8-75M

SC2E8-75ML

SC2E8-75MSMD

SOCAY

75M

 75V±20% ＜500V ＜600V 1 GΩ (at 25V) ＜1.5pF ~15V 10KA 20KA 10A 100A

SC2E8-90M

SC2E8-90ML

SC2E8-90MSMD

SOCAY

90M

 90V±20% ＜500V ＜600V 1 GΩ (at 50V) ＜1.5pF ~15V 10KA 20KA 10A 100A

SC2E8-150M

SC2E8-150ML

SC2E8-150MSMD

SOCAY

150M

 150V±20% ＜500V ＜600V 1 GΩ (at 50V) ＜1.5pF ~20V 10KA 20KA 10A 100A

SC2E8-230M

SC2E8-230ML

SC2E8-230MSMD

SOCAY

230M

 230V±20% ＜600V ＜700V 1 GΩ (at 100V) ＜1.5pF ~20V 10KA 20KA 10A 100A

SC2E8-250M

SC2E8-250ML

SC2E8-250MSMD

SOCAY

250M

 250V±20% ＜700V ＜800V 1 GΩ (at 100V) ＜1.5pF ~20V 10KA 20KA 10A 100A

SC2E8-300M

SC2E8-300ML

SC2E8-300MSMD

SOCAY

300M

 300V±20% ＜800V ＜900V 1 GΩ (at 100V) ＜1.5pF ~20V 10KA 20KA 10A 100A

SC2E8-350M

SC2E8-350ML

SC2E8-350MSMD

SOCAY

350M

 350V±20% ＜800V ＜900V 1 GΩ (at 100V) ＜1.5pF ~20V 10KA 20KA 10A 100A

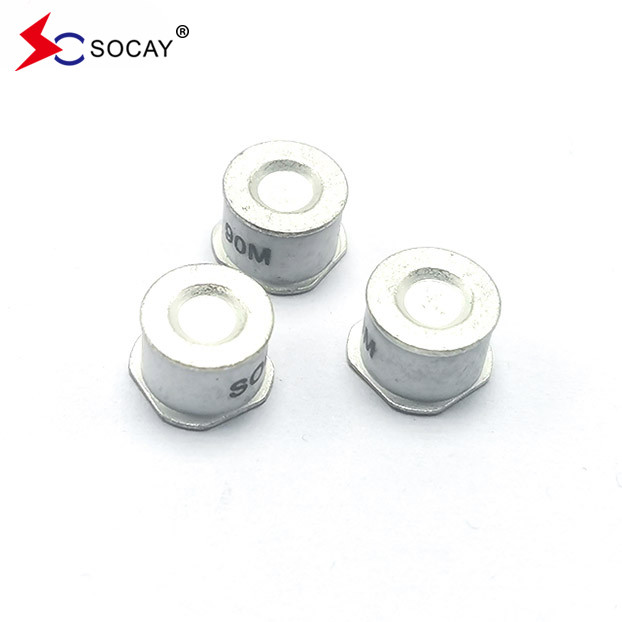

                                SMD Ceramic Gas Discharge Tube SC2E8-350MSMD Surface Mount Gas Tube Arrester 2



Materials

Leaded Device: Nickel-plated with Tinplated wires

Surface Mount: Dull Tin-plated
Product Marking

SOCAY XXXM/H

XXX -Nominal voltage

M - 10KA

H - 20KA



Glow to Arc

Transition Current

 < 0.5 Amps
Glow Voltage ~60 Volts

Storage and

Operational

Temperature

 -40 to +90°C
Weight SC2E8-XXXML ~1.5g
  SC2E8-XXXHL ~1.6g
  SC2E8-XXXM/H ~1.35g
  SC2E8-XXXM/HSMD ~1.5g
Climatic category (IEC 60068-1) 40/ 90/ 21





                                  SMD Ceramic Gas Discharge Tube SC2E8-350MSMD Surface Mount Gas Tube Arrester 3
