Name: 1.5pF Without Wire Gas Discharge Tube Arrester SC2E8-230M 2-Electrode GDT
Brand: SOCAY
SKU: SC2E8-230M
Rating: 4.8 (104 reviews)

1.5pF Without Wire Gas Discharge Tube Arrester SC2E8-230M 2-Electrode GDT

1000PCS

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Gas Discharge Tube

Size: φ8*6mm

DC Spark-over Voltage @100V/μs: 230V±20%

Max. Spark-over Impulse Voltage @100V/μs: 600V

Max. Spark-over Impulse Voltage @1KV/μs: 700V

Max. Capacitance: 1.5pF

Nom. Impulse Discharge Current: 10KA

Storage Temperature: -40°C~+90°C

Highlight:

1.5pF Gas Discharge Tube

Gas Discharge Tube Arrester

SC2E8-230M

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: SC2E8-230M

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

1.5pF Without Wire Gas Discharge Tube Arrester SC2E8-230M 2-Electrode GDT

Product Description

1.5pF Without Wire Gas Discharge Tube Arrester SC2E8-230M, 2-Electrode GDT

DATASHEET: SC2E8_v91.1.pdf

These protective components are also indispensable in other sectors, In AC power transmission systems, they are often used with current-limiting varistors, In customer premises equipment such as DSL modems, WLAN routers, TV sets and cable modems In air-conditioning equipment, the integral black-box concept offers graduated protection by combining arresters with varistors, PTC, diodes and inductor.

Part Number	Marking	DC Spark- over Voltage	Maximum Impulse Spark-over Voltage		Minimum Insulation Resistance	Maximum Capacitance	Arc Voltage	Service Life
								Nominal Impulse Discharge Current	Max Impulse Discharge Current	Nominal Impulse Discharge Current	Impulse Life
		@100V/S	@100V/μs	@1KV/μs		@1MHz	@1A	@8/20μs ±5 times	@8/20μs 1 time	@50Hz 1 Sec 10 times	@10/1000μs 300 times
SC2E8-75M SC2E8-75ML SC2E8-75MSMD	SOCAY 75M	75V±20%	＜500V	＜600V	1 GΩ (at 25V)	＜1.5pF	~15V	10KA	20KA	10A	100A
SC2E8-90M SC2E8-90ML SC2E8-90MSMD	SOCAY 90M	90V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.5pF	~15V	10KA	20KA	10A	100A
SC2E8-150M SC2E8-150ML SC2E8-150MSMD	SOCAY 150M	150V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.5pF	~20V	10KA	20KA	10A	100A
SC2E8-230M SC2E8-230ML SC2E8-230MSMD	SOCAY 230M	230V±20%	＜600V	＜700V	1 GΩ (at 100V)	＜1.5pF	~20V	10KA	20KA	10A	100A
SC2E8-250M SC2E8-250ML SC2E8-250MSMD	SOCAY 250M	250V±20%	＜700V	＜800V	1 GΩ (at 100V)	＜1.5pF	~20V	10KA	20KA	10A	100A
SC2E8-300M SC2E8-300ML SC2E8-300MSMD	SOCAY 300M	300V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.5pF	~20V	10KA	20KA	10A	100A
SC2E8-350M SC2E8-350ML SC2E8-350MSMD	SOCAY 350M	350V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.5pF	~20V	10KA	20KA	10A	100A

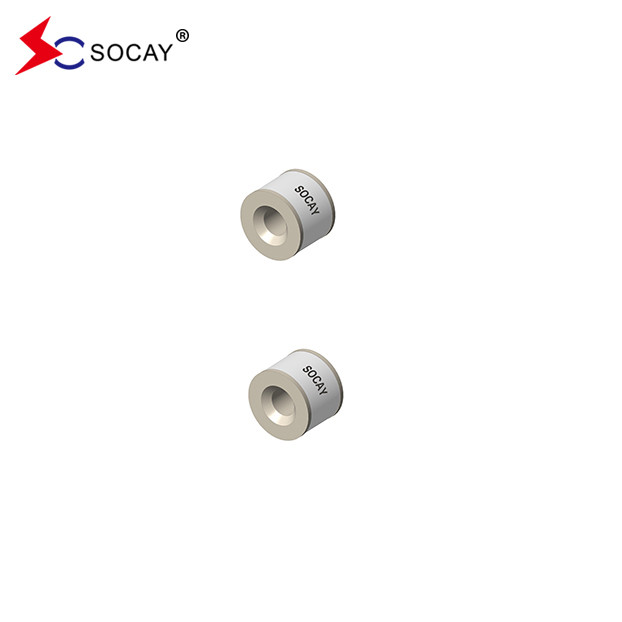

1.5pF Without Wire Gas Discharge Tube Arrester SC2E8-230M 2-Electrode GDT 0

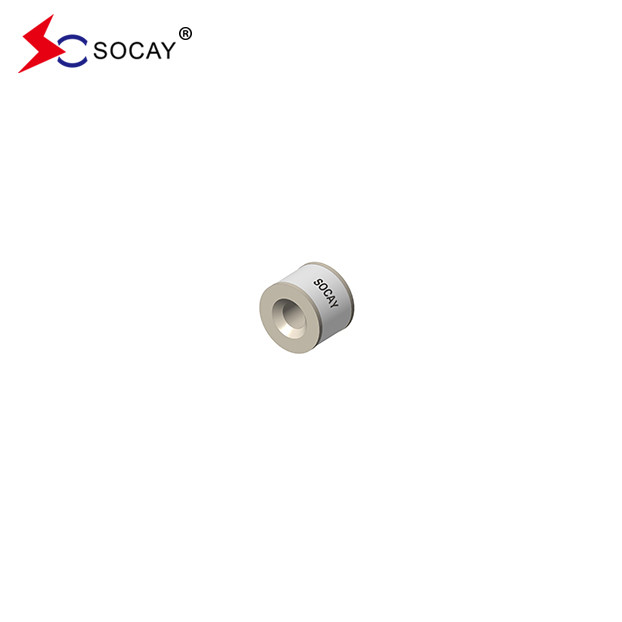

1.5pF Without Wire Gas Discharge Tube Arrester SC2E8-230M 2-Electrode GDT 1

1.5pF Without Wire Gas Discharge Tube Arrester SC2E8-230M 2-Electrode GDT 2
