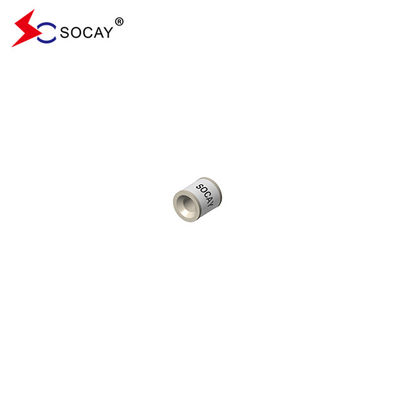

Name: Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment
Brand: SOCAY
SKU: SC2E5-800LL
Rating: 4.6 (139 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Gas Discharge Tube

Size: φ5.5*6mm

DC Spark-over Voltage @100V/μs: 800V±20%

Max. Spark-over Impulse Voltage @100V/μs: 1200V

Max. Spark-over Impulse Voltage @1KV/μs: 1400V

Max. Capacitance: 1.0pF

Arc Voltage @1A: 15V

Nom.Max. Impulse Discharge Current Impulse Discharge Current: 5KA

Storage Temperature: -40°C~+90°C

Impulse Life: 100A

Highlight:

800V GDT Tube

GDT Tube SC2E5-800LL

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: SC2E5-800LL

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

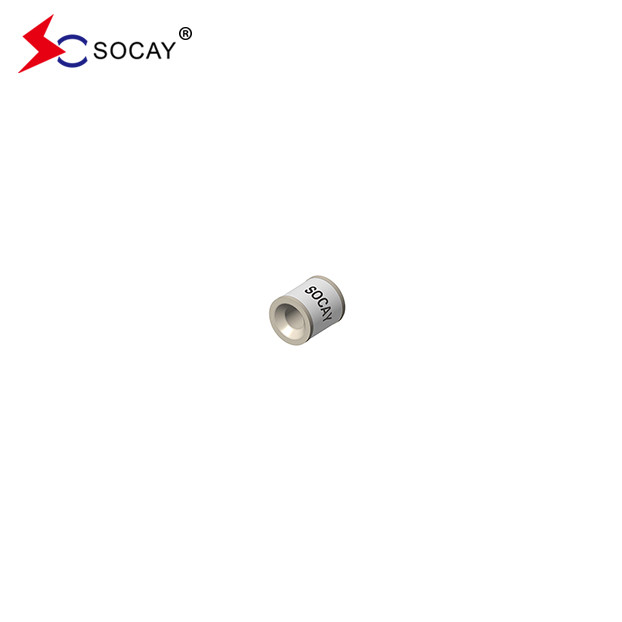

Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment

Product Description

Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment

DATASHEET: SC2E5_v91.1.pdf

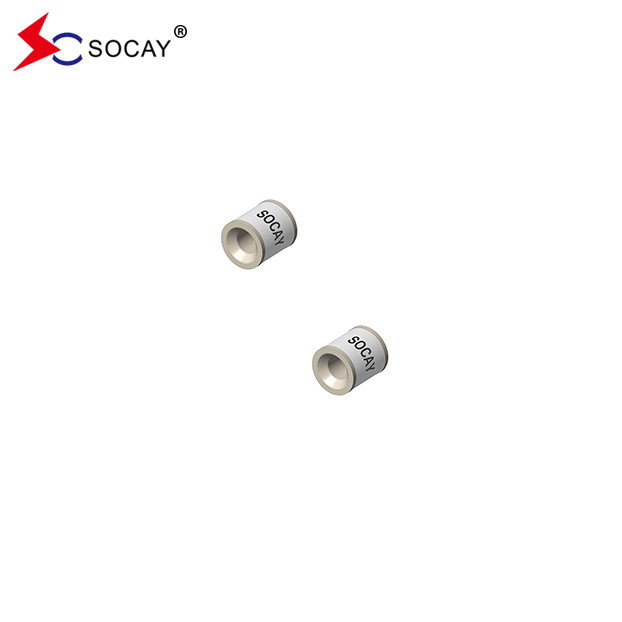

Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment 0

Descriptions:

Gas discharge Tubes (GDT) are classical components for protecting the installations of the telecommunications. It is essential that IT and telecommunications systems -with their high-grade but sensitive electronic circuits - be protected by arresters. They are thus fitted at the input of the power supply system together with varistors and at the connection points to telecommunication lines. They have become equally indispensable for protecting base stations in mobile telephone systems as well as extensive cable television (CATV) networks with their repeaters and distribution systems.

Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment 1

Part Number	Marking	DC Spark-over Voltage	Maximum Impulse Spark-over Voltage		Minimum Insulation Resistance	Maximum Capacitance	Arc Voltage	Service Life
								Nominal Impulse Discharge Current	Max Impulse Discharge Current	Nominal Alternating Discharge Current	Impulse Life
		@100V/S	@100V/μs	@1KV/μs		@1MHz	@1A	@8/20μs ±5 times	@8/20μs 1 time	@50Hz 1 Sec 10 times	@10/1000μs 300 times
SC2E5-75LL SC2E5-75L	SOCAY75L	75V±20%	＜500V	＜600V	1 GΩ (at 25V)	＜1.0pF	~15V	5KA	10KA	5A	100A
SC2E5-90LL SC2E5-90L	SOCAY90L	90V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.0pF	~15V	5KA	10KA	5A	100A
SC2E5-150LL SC2E5-150L	SOCAY150L	150V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-230LL SC2E5-230L	SOCAY230L	230V±20%	＜600V	＜700V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-250LL SC2E5-250L	SOCAY250L	250V±20%	＜700V	＜800V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-300LL SC2E5-300L	SOCAY300L	300V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-350LL SC2E5-350L	SOCAY350L	350V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-420LL SC2E5-420L	SOCAY420L	420V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-470LL SC2E5-470L	SOCAY470L	470V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-600LL SC2E5-600L	SOCAY600L	600V±20%	＜1100V	＜1200V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-800LL SC2E5-800L	SOCAY800L	800V±20%	＜1200V	＜1400V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
Notes: 1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008 2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859

Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment 2
Features:

Non-Radioactive
RoHS compliant
Low insertion loss
Excellent response to fast rising transients
Ultra low capacitance
5KA surge capability tested with 8/20μs pulse as deﬁned by IEC 61000-4-5

Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment 3

Surge Arrester Ceramic GDT Tube SC2E5-800LL For Communication Equipment 4
