Name: Axial Leaded Gas Discharge Tube 350V GDT SC2E5-350LL Low Insertion Loss
Brand: SOCAY
SKU: SC2E5-350LL
Rating: 4.9 (199 reviews)

Axial Leaded Gas Discharge Tube 350V GDT SC2E5-350LL Low Insertion Loss

1000PCS

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Gas Discharge Tube

Size: φ5.5*6mm

DC Spark-over Voltage @100V/μs: 350V±20%

Max. Spark-over Impulse Voltage @100V/μs: 800V

Max. Spark-over Impulse Voltage @1KV/μs: 900V

Min. Insulation Resistance: 1GΩ (@50V DC)

Max. Capacitance: 1.0pF

Arc Voltage @1A: 15V

Nom.Max. Impulse Discharge Current Impulse Discharge Current: 5KA

Max. Impulse Discharge Current: 10KA

Nom. Alternating Discharge Current: 5A

Impulse Life: 100A

Highlight:

Gas Discharge Tube 350V

Gas Discharge Tube Low Insertion

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: SC2E5-350LL

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

Axial Leaded Gas Discharge Tube 350V GDT SC2E5-350LL Low Insertion Loss

Product Description

350V Axial Leaded GDT SC2E5-350LL, Low Insertion Loss Gas Discharge Tube

DATASHEET: SC2E5_v91.1.pdf

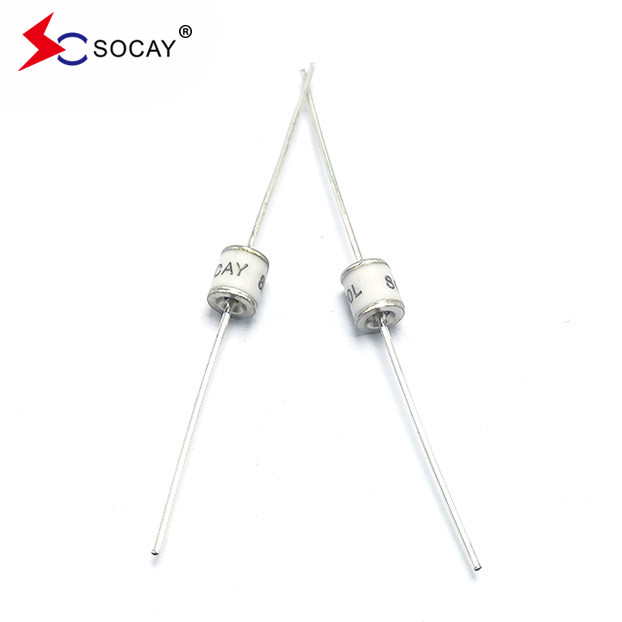

Axial Leaded Gas Discharge Tube 350V GDT SC2E5-350LL Low Insertion Loss 0

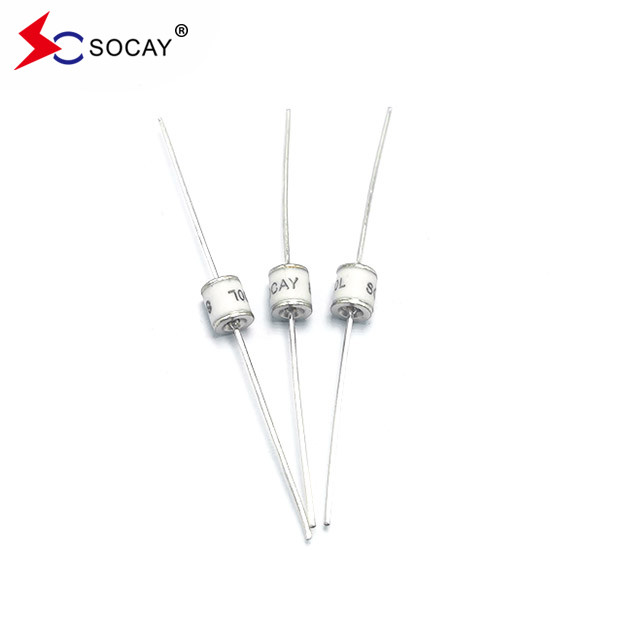

Axial Leaded Gas Discharge Tube 350V GDT SC2E5-350LL Low Insertion Loss 1

Part Number	Marking	DC Spark-over Voltage	Maximum Impulse Spark-over Voltage		Minimum Insulation Resistance	Maximum Capacitance	Arc Voltage	Service Life
								Nominal Impulse Discharge Current	Max Impulse Discharge Current	Nominal Alternating Discharge Current	Impulse Life
		@100V/S	@100V/μs	@1KV/μs		@1MHz	@1A	@8/20μs ±5 times	@8/20μs 1 time	@50Hz 1 Sec 10 times	@10/1000μs 300 times
SC2E5-75LL SC2E5-75L	SOCAY75L	75V±20%	＜500V	＜600V	1 GΩ (at 25V)	＜1.0pF	~15V	5KA	10KA	5A	100A
SC2E5-90LL SC2E5-90L	SOCAY90L	90V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.0pF	~15V	5KA	10KA	5A	100A
SC2E5-150LL SC2E5-150L	SOCAY150L	150V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-230LL SC2E5-230L	SOCAY230L	230V±20%	＜600V	＜700V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-250LL SC2E5-250L	SOCAY250L	250V±20%	＜700V	＜800V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-300LL SC2E5-300L	SOCAY300L	300V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-350LL SC2E5-350L	SOCAY350L	350V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-420LL SC2E5-420L	SOCAY420L	420V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-470LL SC2E5-470L	SOCAY470L	470V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-600LL SC2E5-600L	SOCAY600L	600V±20%	＜1100V	＜1200V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-800LL SC2E5-800L	SOCAY800L	800V±20%	＜1200V	＜1400V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
Notes: 1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008 2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859

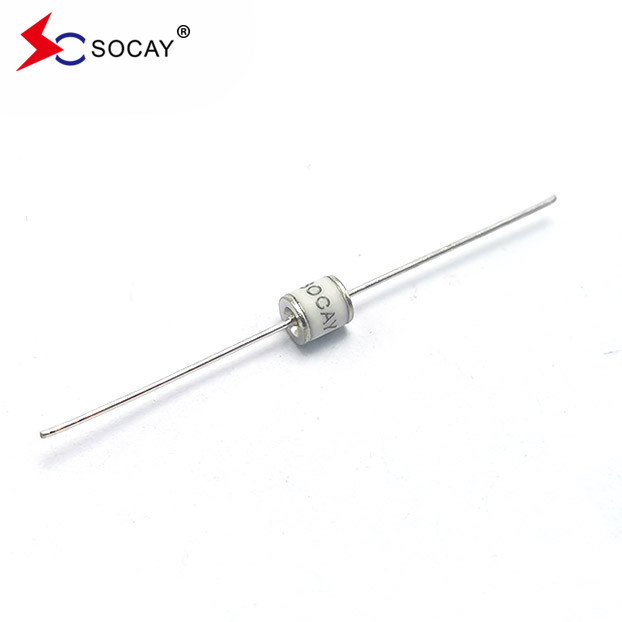

Axial Leaded Gas Discharge Tube 350V GDT SC2E5-350LL Low Insertion Loss 2

Materials	Nickel-plated with Tinplated wires
Product Marking	SOCAY XXXL XXX -Nominal voltage L -5KA
Glow to Arc Transition Current	< 0.5 Amps
Glow Voltage	~60 Volts
Storage and Operational Temperature	-40 to +90°C
Climatic category (IEC 60068-1)	40/90/21
Weight	SC2E5-XXXLL	~1.0g
	SC2E5-XXXL	~0.85g
