Name: 2-Electrode Gas Discharge Tube GDT SC2E5-90LL 90V Axial Leaded Device
Brand: SOCAY
SKU: SC2E5-90LL
Rating: 5 (132 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Other Name: Arrester Tube

Package Size: φ5.5*6mm

DC Spark-over Voltage @100V/μs: 90V±20%

Max. Spark-over Impulse Voltage @100V/μs: 500V

Max. Spark-over Impulse Voltage @1KV/μs: 600V

Min. Insulation Resistance: 1GΩ (@50V DC)

Max. Capacitance: 1.0pF

Arc Voltage @1A: 15V

Nom.Max. Impulse Discharge Current Impulse Discharge Current: 5KA

Operating Temperature: -40°C~+90°C

Storage Temperature: -40°C~+90°C

Max. Impulse Discharge Current: 10KA

Nom. Alternating Discharge Current: 5A

Impulse Life: 100A

Highlight:

2-Electrode Gas Discharge Tube

Gas Discharge Tube 90V

GDT Axial Leaded Device

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: SC2E5-90LL

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 1-3week

Gallery

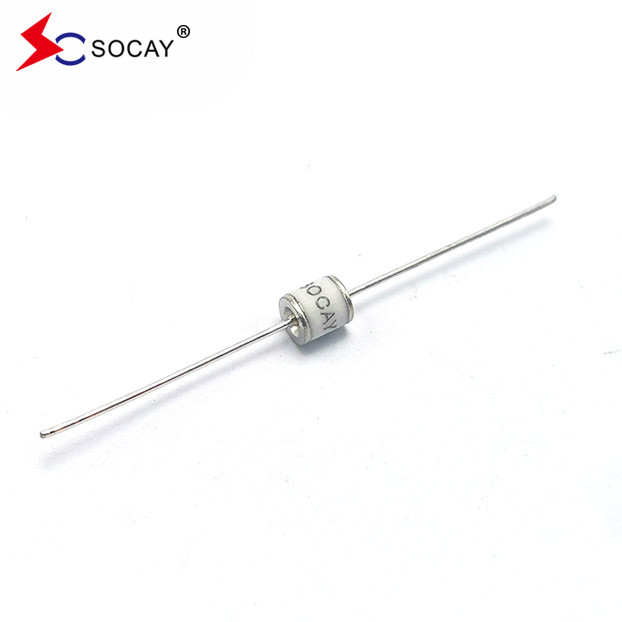

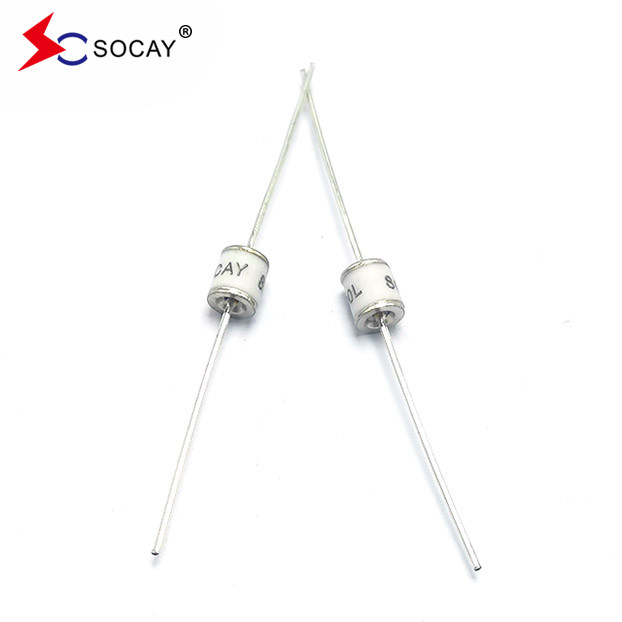

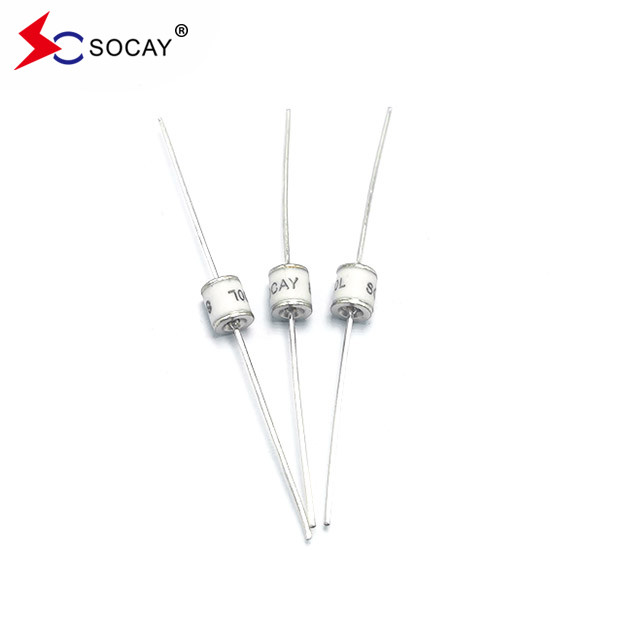

2-Electrode Gas Discharge Tube GDT SC2E5-90LL 90V Axial Leaded Device

Product Description

2-Electrode Gas Discharge Tube (GDT) SC2E5-90LL, 90V Axial Leaded Devices

DATASHEET: SC2E5_v91.1.pdf

GDT Classification

Surface Mount(package size):1206,1210,1812
DIP:2-Electrode,3-Electrode

DC Voltage:75V~800V

High DC Voltage :1000V~6000V

Current:0.5KA~20KA

Response Time≤100NS,SWITH components

2-Electrode Gas Discharge Tube GDT SC2E5-90LL 90V Axial Leaded Device 0

Part Number	Marking	DC Spark-over Voltage	Maximum Impulse Spark-over Voltage		Minimum Insulation Resistance	Maximum Capacitance	Arc Voltage	Service Life
								Nominal Impulse Discharge Current	Max Impulse Discharge Current	Nominal Alternating Discharge Current	Impulse Life
		@100V/S	@100V/μs	@1KV/μs		@1MHz	@1A	@8/20μs ±5 times	@8/20μs 1 time	@50Hz 1 Sec 10 times	@10/1000μs 300 times
SC2E5-75LL SC2E5-75L	SOCAY75L	75V±20%	＜500V	＜600V	1 GΩ (at 25V)	＜1.0pF	~15V	5KA	10KA	5A	100A
SC2E5-90LL SC2E5-90L	SOCAY90L	90V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.0pF	~15V	5KA	10KA	5A	100A
SC2E5-150LL SC2E5-150L	SOCAY150L	150V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-230LL SC2E5-230L	SOCAY230L	230V±20%	＜600V	＜700V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-250LL SC2E5-250L	SOCAY250L	250V±20%	＜700V	＜800V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-300LL SC2E5-300L	SOCAY300L	300V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-350LL SC2E5-350L	SOCAY350L	350V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-420LL SC2E5-420L	SOCAY420L	420V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-470LL SC2E5-470L	SOCAY470L	470V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-600LL SC2E5-600L	SOCAY600L	600V±20%	＜1100V	＜1200V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-800LL SC2E5-800L	SOCAY800L	800V±20%	＜1200V	＜1400V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
Notes: 1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008 2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859

2-Electrode Gas Discharge Tube GDT SC2E5-90LL 90V Axial Leaded Device 1
Features:

Non-Radioactive
RoHS compliant
Low insertion loss
Excellent response to fast rising transients
Ultra low capacitance
5KA surge capability tested with 8/20μs pulse as deﬁned by IEC 61000-4-5

Applications:

power module, isolator, inverter, medical equipment,

485 converter, communication products

(optical terminal machine, MODEL,

communication base station),

stabilizer, security products, lightning arrester.
