Non Radioactive GDT Tube 5KA SC2E5-600LSMD RoHS compliant

1000PCS
MOQ
Negotiable
Price
Non Radioactive GDT Tube 5KA SC2E5-600LSMD RoHS compliant
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Gas Discharge Tube
Size: 5*5*4.2mm
DC Spark-over Voltage @100V/μs: 600V±20%
Max. Spark-over Impulse Voltage @100V/μs: 1100V
Max. Spark-over Impulse Voltage @1KV/μs: 1200V
Max. Capacitance: 1.0pF
Nom.Max. Impulse Discharge Current Impulse Discharge Current: 5KA
Highlight:

Non Radioactive GDT Tube

,

RoHS GDT Tube
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SC2E5-600LSMD
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SOCAY GDT Gas Discharge Tube SC2E5-600LSMD, Excellent Response to Fast Rising Transients

DATASHEET:   SC2E5-SMD_v2110.1.pdf





Part Number

DC

Spark-over Voltage

Maximum

Impulse Spark-over

Voltage

 Minimum Insulation Resistance Maximum Capacitance Arc Voltage Service Life


Nominal

Impulse Discharge Current

 Max Impulse Discharge Current Nominal Alternating Discharge Current

Impulse

Life
  @100V/S @100V/μs @1KV/μs   @1MHz @1A

@8/20μs

±5 times

@8/20μs

1 time

@50Hz

1 Sec

10 times

@10/1000μs

300 times
SC2E5-75LSMD 75V±20% ＜500V ＜650V 1 GΩ (at 50V DC) ＜1.0pF ~15V 5KA 10KA 5A 100A
SC2E5-90LSMD 90V±20% ＜500V ＜650V 1 GΩ (at 50V DC) ＜1.0pF ~15V 5KA 10KA 5A 100A
SC2E5-150LSMD 150V±20% ＜500V ＜650V 1 GΩ (at 50V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-200LSMD 200V±20% ＜500V ＜650V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-230LSMD 230V±20% ＜600V ＜700V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-300LSMD 300V±20% ＜700V ＜800V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-350LSMD 350V±20% ＜700V ＜800V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-420LSMD 420V±20% ＜800V ＜950V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-470LSMD 470V±20% ＜900V ＜1000V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-600LSMD 600V±20% ＜1100V ＜1200V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-800LSMD 800V±20% ＜1200V ＜1400V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A

Notes:

  • Terms in accordance with ITU-T K.12 and GB/T 9043-2008
  • At delivery AQL 0.65 level Ⅱ, DIN ISO 2859

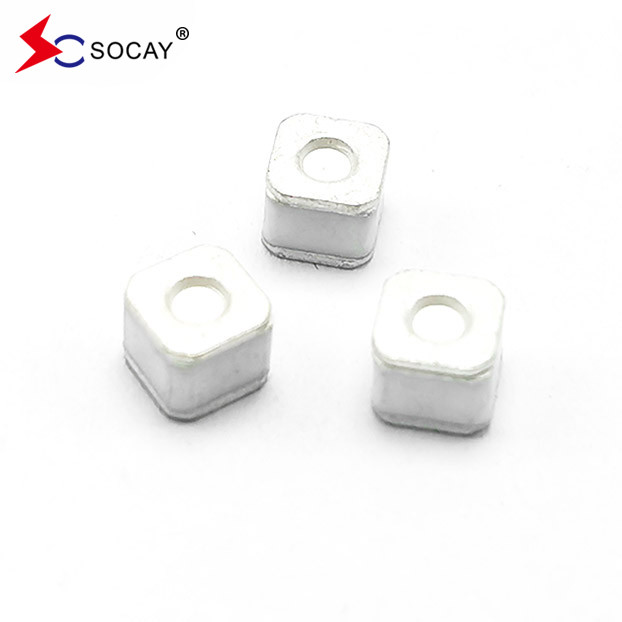

Non Radioactive GDT Tube 5KA SC2E5-600LSMD RoHS compliant 0

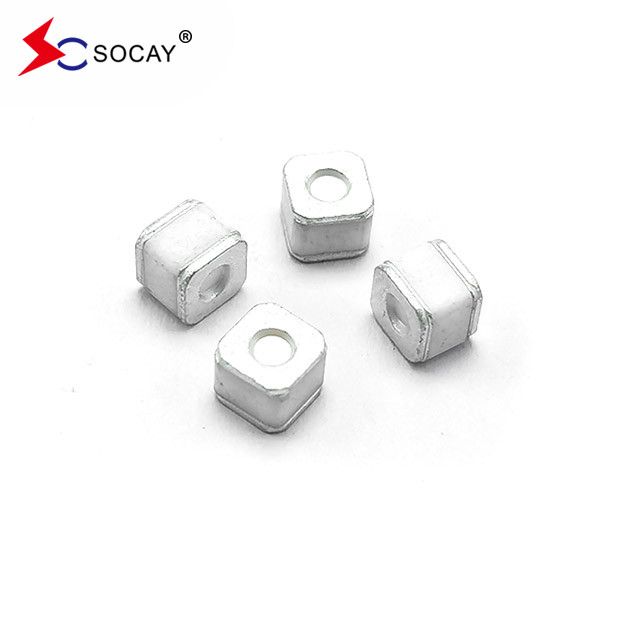

Non Radioactive GDT Tube 5KA SC2E5-600LSMD RoHS compliant 1


Features:

  • Non-Radioactive
  • RoHS compliant
  • Low insertion loss
  • Excellent response to fast rising transients
  • Ultra low capacitance

  • 5KA surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5

 Non Radioactive GDT Tube 5KA SC2E5-600LSMD RoHS compliant 2

Tag:

Gas Tube Arrester

GDT Tube

GDT Electronic Component
