350V Gas Discharge Tube Arrester Surface Mount GDT For Communication Equipment

1000PCS
MOQ
Negotiable
Price
350V Gas Discharge Tube Arrester Surface Mount GDT For Communication Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Gas Discharge Tube
Size: 5*5*4.2mm
DC Spark-over Voltage @100V/μs: 350V±20%
Max. Spark-over Impulse Voltage @100V/μs: 700V
Max. Spark-over Impulse Voltage @1KV/μs: 800V
Min. Insulation Resistance: 1GΩ (@50V DC)
Max. Capacitance: 1.0pF
Arc Voltage @1A: 15V
Nom.Max. Impulse Discharge Current Impulse Discharge Current: 5KA
Operating Temperature: -40°C~+90°C
Storage Temperature: -40°C~+90°C
Max. Impulse Discharge Current: 10KA
Nom. Alternating Discharge Current: 5A
Impulse Life: 100A
Highlight:

350V Gas Discharge Tube Arrester

,

GDT Gas Discharge Tube Arrester
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SC2E5-350LSMD
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

350V Gas Discharge Tube Arresters SC2E5-350LSMD, Surface Mount GDT Suitable for Communication Equipment

DATASHEET:   SC2E5-SMD_v2110.1.pdf


Part Number

DC

Spark-over Voltage

Maximum

Impulse Spark-over

Voltage

Minimum Insulation ResistanceMaximum CapacitanceArc VoltageService Life


Nominal

Impulse Discharge Current

Max Impulse Discharge CurrentNominal Alternating Discharge Current

Impulse

Life

 @100V/S@100V/μs@1KV/μs @1MHz@1A

@8/20μs

±5 times

@8/20μs

1 time

@50Hz

1 Sec

10 times

@10/1000μs

300 times

SC2E5-75LSMD75V±20%＜500V＜650V1 GΩ (at 50V DC)＜1.0pF~15V5KA10KA5A100A
SC2E5-90LSMD90V±20%＜500V＜650V1 GΩ (at 50V DC)＜1.0pF~15V5KA10KA5A100A
SC2E5-150LSMD150V±20%＜500V＜650V1 GΩ (at 50V DC)＜1.0pF~20V5KA10KA5A100A
SC2E5-200LSMD200V±20%＜500V＜650V1 GΩ (at 100V DC)＜1.0pF~20V5KA10KA5A100A
SC2E5-230LSMD230V±20%＜600V＜700V1 GΩ (at 100V DC)＜1.0pF~20V5KA10KA5A100A
SC2E5-300LSMD300V±20%＜700V＜800V1 GΩ (at 100V DC)＜1.0pF~20V5KA10KA5A100A
SC2E5-350LSMD350V±20%＜700V＜800V1 GΩ (at 100V DC)＜1.0pF~20V5KA10KA5A100A

Notes:

  • Terms in accordance with ITU-T K.12 and GB/T 9043-2008
  • At delivery AQL 0.65 level Ⅱ, DIN ISO 2859




Descriptions:
These protective components are also indispensable in other sectors, In AC power transmission systems, they are often used with current-limiting varistors, In customer premises equipment such as DSL modems, WLAN routers, TV sets and cable modems In air-conditioning equipment, the integral black-box concept offers graduated protection by combining arresters with varistors, PTC, diodes and inductor.

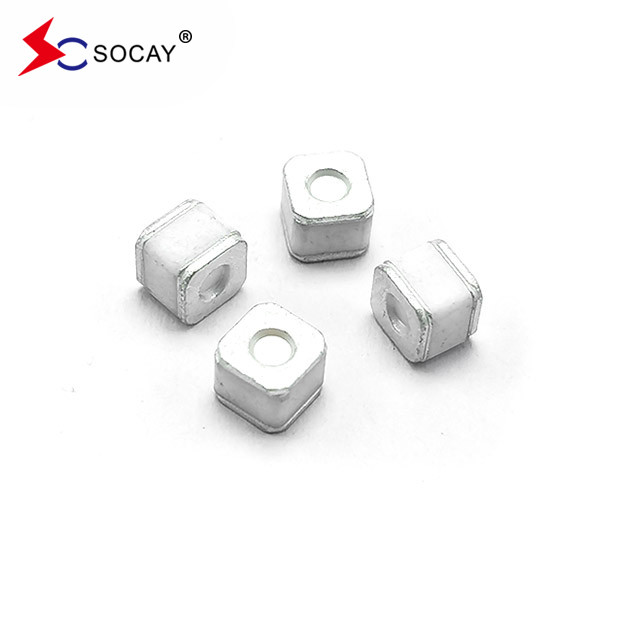

350V Gas Discharge Tube Arrester Surface Mount GDT For Communication Equipment 0

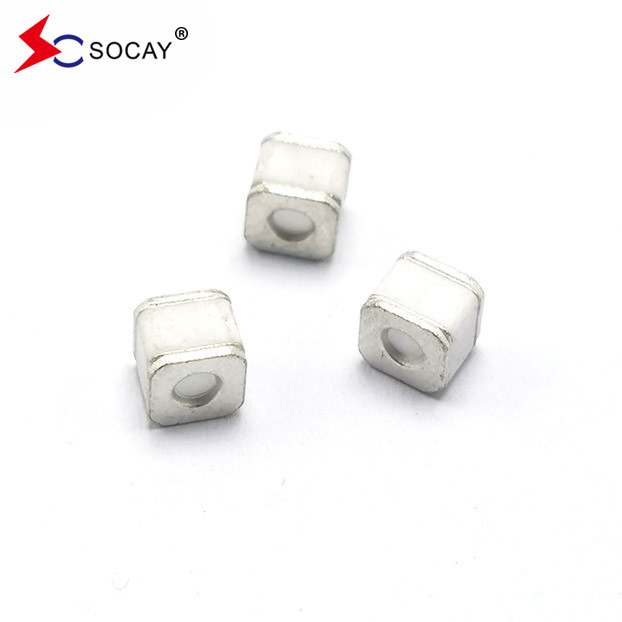

 350V Gas Discharge Tube Arrester Surface Mount GDT For Communication Equipment 1

350V Gas Discharge Tube Arrester Surface Mount GDT For Communication Equipment 2
