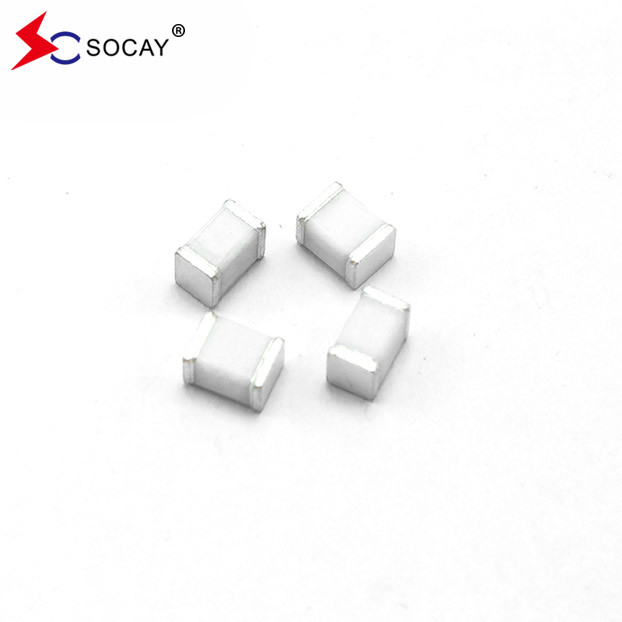

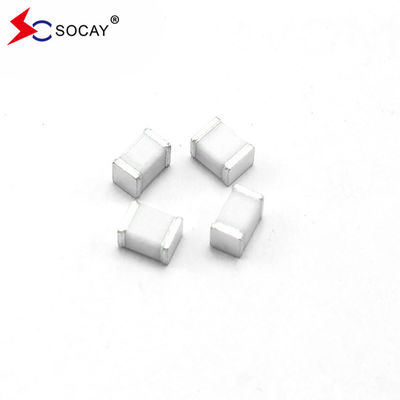

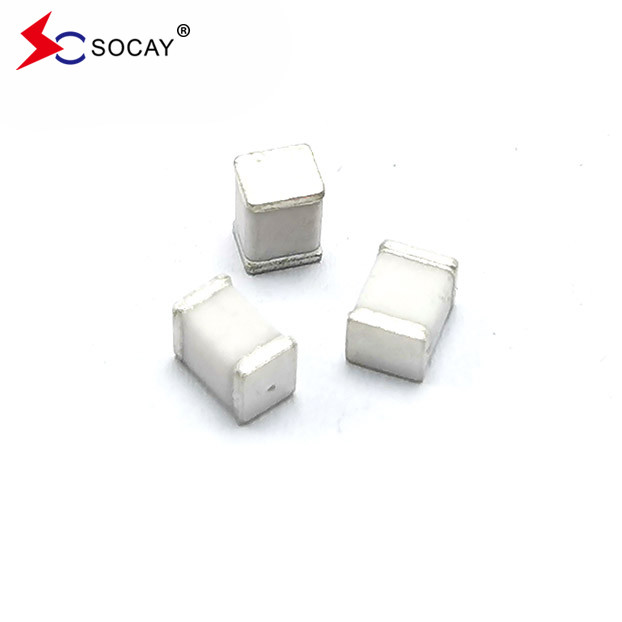

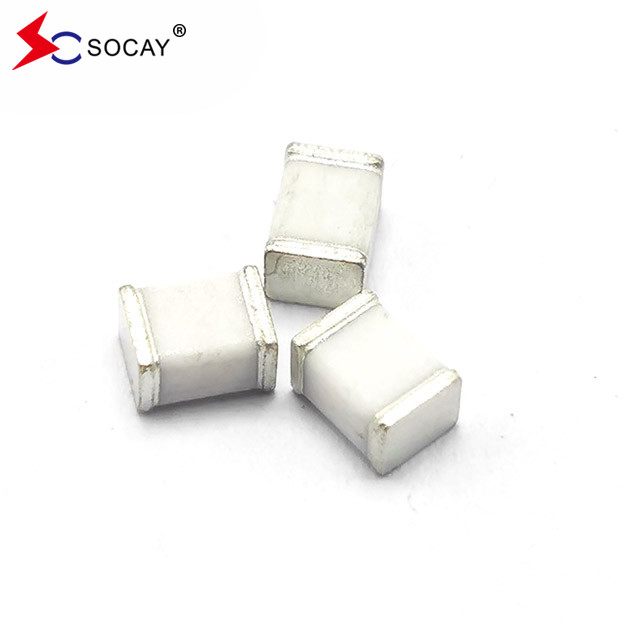

SC1812-600CSMD Ceramic GDT Non Radioactive Suitable For Data Lines

2500PCS
MOQ
Negotiable
Price
SC1812-600CSMD Ceramic GDT Non Radioactive Suitable For Data Lines
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Gas Discharge Tube
Size: 3.2*2.7*4.5mm
DC Spark-over Voltage @100V/μs: 600V±20%
Max. Spark-over Impulse Voltage @100V/μs: 1100V
Max. Spark-over Impulse Voltage @1KV/μs: 1200V
Min. Insulation Resistance: 1GΩ (@50V DC)
Max. Capacitance: 1.0pF
Arc Voltage @1A: 15V
Nom. Impulse Discharge Current: 2KA
Operating Temperature: -40°C~+90°C
Storage Temperature: -40°C~+90°C
Highlight:

Ceramic GDT Non Radioactive

,

Data Lines Ceramic GDT
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SC1812-600CSMD
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SOCAY Ceramic Gas Discharge Tube SC1812-600CSMD, Non-Radioactive, Suitable for Data Lines

DATASHEET:   SC1812_v2106.1.pdf

Descriptions:
Gas discharge Tubes (GDT) are classical components for protecting the installations of the telecommunications. It is essential that IT and telecommunications systems -with their high-grade but sensitive electronic circuits - be protected by arresters.


The 1812 series GDT offers high surge ratings in a miniature package. It’s designed for surface mounting on PCB with small size 4.5x3.2x2.7mm. Low insertion loss is perfectly suited to broadband equipment applications. The capacitance does not vary with voltage, and will not cause operational problems with ADSL2+, where capacitance variation across Tip and Ring is undesirable. These devices are extremely robust and are able to divert a 500A pulse in a miniature package 1812 without destruction.





SC1812-600CSMD Ceramic GDT Non Radioactive Suitable For Data Lines 0

Part Number DC Spark-over Voltage Maximum Impulse Spark-over Voltage Minimum Insulation Resistance Maximum Capacitance Arc Voltage

Nominal

Impulse Discharge Current
  @100V/S @100V/μs @1KV/μs   @1MHz @1A

@8/20μs

±5 times
SC1812-600CSMD 600V±20% ＜1100V ＜1200V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA

Notes:

  • Terms in accordance with ITU-T K.12 and GB/T 9043-2008
  • At delivery AQL 0.65 level Ⅱ, DIN ISO 2859





Features:

  • Non-Radioactive
  • RoHS compliant
  • Ultra low capacitance (<1.0 pF)
  • UL recognized
  • Excellent response to fast rising transients
  • 2KA surge capability tested with 8/20μs



SC1812-600CSMD Ceramic GDT Non Radioactive Suitable For Data Lines 1



SC1812-600CSMD Ceramic GDT Non Radioactive Suitable For Data Lines 2
