2KA Surge Capability Gas Discharge Tube SC1812-350CSMD Square Outline GDT

2500PCS
MOQ
Negotiable
Price
2KA Surge Capability Gas Discharge Tube SC1812-350CSMD Square Outline GDT
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Gas Discharge Tube
Size: 3.2*2.7*4.5mm
DC Spark-over Voltage @100V/μs: 350V±20%
Max. Spark-over Impulse Voltage @100V/μs: 800V
Max. Spark-over Impulse Voltage @1KV/μs: 900V
Min. Insulation Resistance: 1GΩ (@50V DC)
Max. Capacitance: 1.0pF
Arc Voltage @1A: 15V
Nom. Impulse Discharge Current: 2KA
Operating Temperature: -40°C~+90°C
Storage Temperature: -40°C~+90°C
Highlight:

2KA Gas Discharge Tube

,

Square Gas Discharge Tube

,

2KA Squared GDT
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SC1812-350CSMD
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

2KA Surge Capability Gas Discharge Tube (GDT) SC1812-350CSMD, Square Outline

DATASHEET:   SC1812_v2106.1.pdf


Part Number DC Spark-over Voltage Maximum Impulse Spark-over Voltage Minimum Insulation Resistance Maximum Capacitance Arc Voltage

Nominal

Impulse Discharge Current
  @100V/S @100V/μs @1KV/μs   @1MHz @1A

@8/20μs

±5 times
SC1812-75CSMD 75V±30% ＜600V ＜700V 1 GΩ (at 50V DC) ＜1.0pF ~15V 2 KA
SC1812-90CSMD 90V±20% ＜600V ＜700V 1 GΩ (at 50V DC) ＜1.0pF ~15V 2 KA
SC1812-150CSMD 150V±20% ＜600V ＜700V 1 GΩ (at 50V DC) ＜1.0pF ~15V 2 KA
SC1812-200CSMD 200V±20% ＜600V ＜750V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA
SC1812-230CSMD 230V±20% ＜600V ＜750V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA
SC1812-300CSMD 300V±20% ＜800V ＜900V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA
SC1812-350CSMD 350V±20% ＜800V ＜900V 1 GΩ (at 100V DC) ＜1.0pF ~15V 2 KA

Notes:

  • Terms in accordance with ITU-T K.12 and GB/T 9043-2008
  • At delivery AQL 0.65 level Ⅱ, DIN ISO 2859

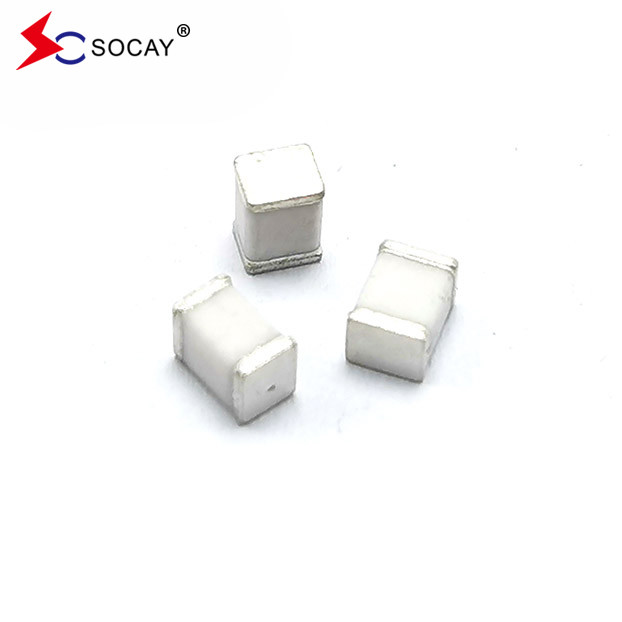

 2KA Surge Capability Gas Discharge Tube SC1812-350CSMD Square Outline GDT 0
Descriptions:

Gas discharge tube is one of the most widely used lightning protection devices, whether it is AC, current power supply lightning protection or various signals lightning protection, play a very good protection role. Its main characteristics are: large through flow, small electrode capacitance, high insulation resistance, breakdown voltage optional range, but slow reaction speed (high residual voltage).



Applications:

  • driving power supply,
  • switching power supply,
  • power module, isolator, i
  • nverter, medical equipment,
  • 485 converter,
  • communication products (optical terminal machine,
  • MODEL, communication base station),
  • stabilizer, security products, lightning arrester.

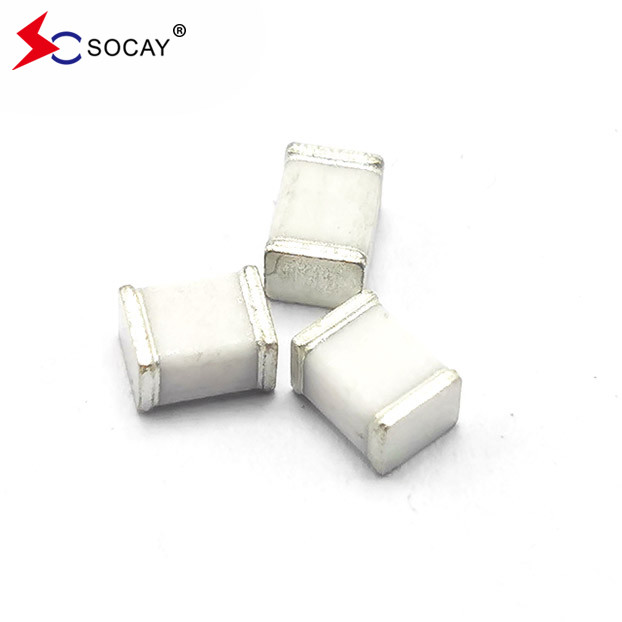

2KA Surge Capability Gas Discharge Tube SC1812-350CSMD Square Outline GDT 1
