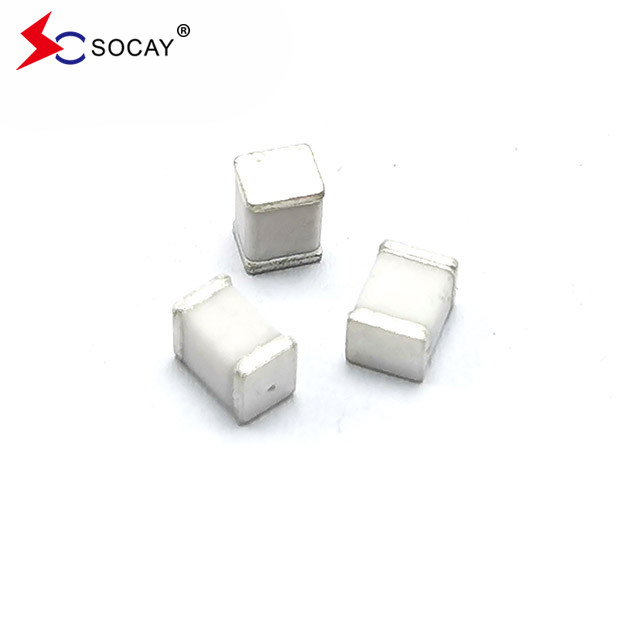

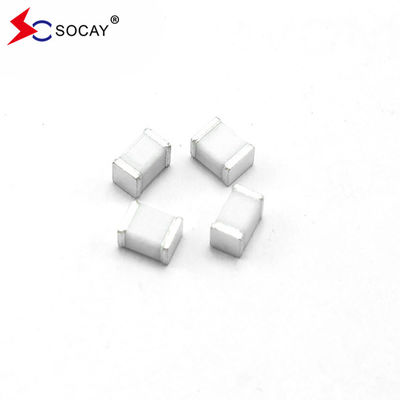

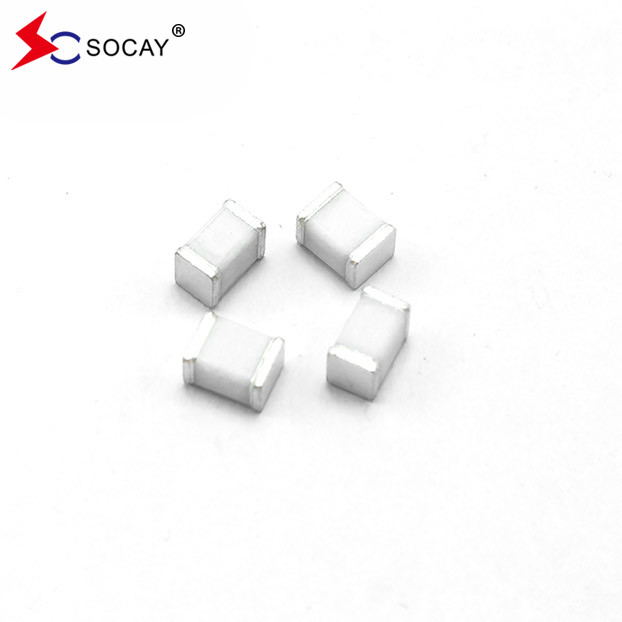

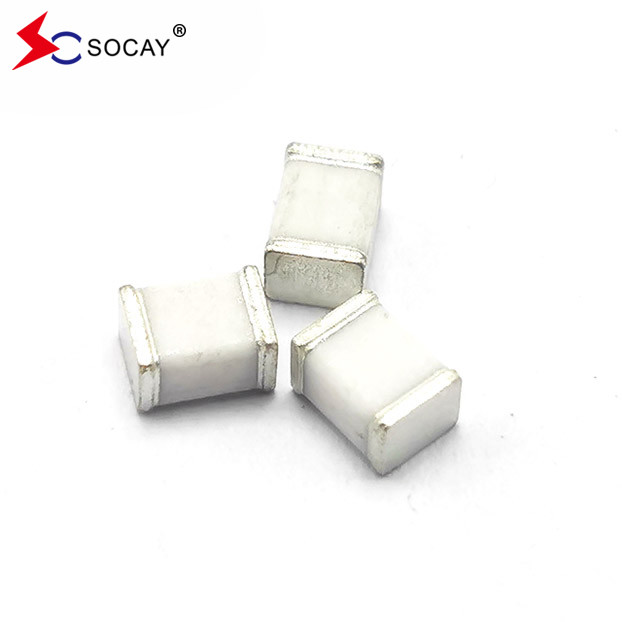

SC1812-90CSMD 2-Electrode GDT 2KA Surface Mount Device UL Recognized

2-Electrode Gas Discharge Tube (GDT) SC1812-90CSMD, Surface Mount Device, UL Recognized

DATASHEET:   SC1812_v2106.1.pdf






Descriptions:
Gas discharge Tubes (GDT) are classical components for protecting the installations of the telecommunications. It is essential that IT and telecommunications systems -with their high-grade but sensitive electronic circuits - be protected by arresters.
The 1812 series GDT offers high surge ratings in a miniature package. It’s designed for surface mounting on PCB with small size 4.5x3.2x2.7mm. Low insertion loss is perfectly suited to broadband equipment applications. The capacitance does not vary with voltage, and will not cause operational problems with ADSL2+, where capacitance variation across Tip and Ring is undesirable. These devices are extremely robust and are able to divert a 500A pulse in a miniature package 1812 without destruction.


Features:

• Non-Radioactive
• RoHS compliant
• Ultra low capacitance (<1.0 pF)
• UL recognized
• Excellent response to fast rising transients
• 2KA surge capability tested with 8/20μs



Applications:

• Communication equipment
• CATV equipment
• Test equipment
• Data lines
• Power supplies
• Telecom SLIC protection
• Broadband equipment
• ADSL equipment, including ADSL2+
• XDSL equipment
• Satellite and CATV equipment
• General telecom equipment
