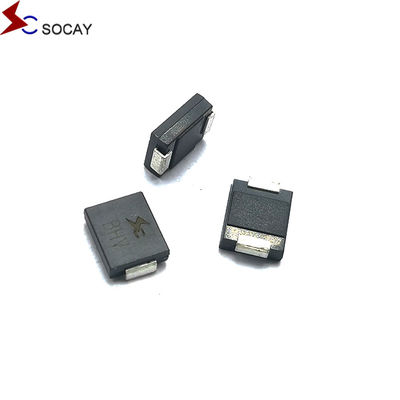

Socay TVS Bidirectional TVS Diodes 8.0SMDJ SMC 22V 8000W Surface Mount Transient Voltage Suppressor

Socay TVS Bidirectional TVS Diodes 8.0SMDJ SMC 22V 8000W Surface Mount Transient Voltage Suppressor

DATASHEET:  8.0SMDJ_v2107.1.pdf

Slection Method

1.To determine the customer's product, operating voltage, application port and required protection level, ensure that the VRWM

2.value is greater than or equal to the normal operating voltage of the customer's circuit, ensure that the VRWM value of the device is greater than or equal to the normal operating voltage of the customer's circuit.

3.It is also important to ensure that the VC (clamp voltage) value is less than or equal to the maximum voltage for the back-end chip.

4.Based on the application port and protection level, select the appropriate package and power rating.

8.0SMDJ22CA Description:

The 8.0SMDJ series is designed for the protection of sensitive electronic equipment from voltage transients due to lightning and other transient voltage events.

8.0SMDJ22CA Features:

• Low leakage rate.
• Chip with glass passivation
• Uni and Bidirectional unit
• Excellent ability to clamp down.
• Rapid response time
• RoHS Compliance
• The device has a peak power capability of 8000W when using a 10 × 1000μs waveform with a repetition rate (duty cycle) of 0.01%.

8.0SMDJ22CA Applications:

TVS devices are suitable for protecting I/O interfaces, VCC buses, and other vulnerable circuits used in telecom, computer, industrial, and consumer electronic applications.
