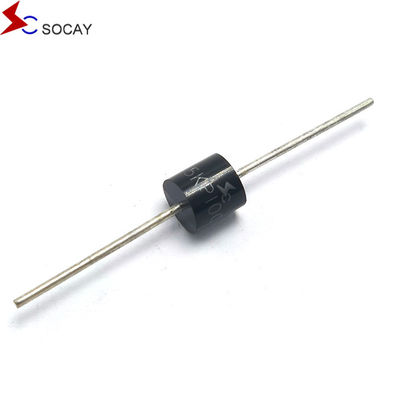

SOCAY 5KP Series 5000W TVS Diode Through Hole TVS Diode Axial Lead Transient Voltage Suppressor

Reverse

Stand-Off

Voltage V_RWM (V)

Breakdown

Voltage V_BR (V) @I_T

Test

Current

I_T

(mA)

Maximum

Clamping

Voltage V_C (V) @I_PP

Maximum

Peak Pulse

Current

I_PP (A)

Maximum

Reverse

Leakage I_R (μA) @V_RWM

5

u Glass passivated chip junction in P600 Package

u Low leakage

u Uni-directional and Bi-directional

u Excellent clamping ability

u Fast to respond and respond

u RoHS compliant and Halogen free

u Typical IR less than 5μA above 12V.

u Matt Tin Lead Free

u 5000W Peak power with 10 × 1000µs waveform Duty cycle: 0.01%

u Fast response time: Typically less than 1.0 ps from 0 volts to VBR min.
u High Temperature soldering: 260°C/40 seconds at terminals
u Typical maximum temperature coefficient ΔVBR = 0.1% ×VBR@25°C× ΔT
u Plastic package has Underwriters Laboratory Flammability 94V-0
u Typical failure mode is short due to over voltage or over current.
u Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
u IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
uESD protection of data lines according to IEC 61000-4-2
(IEC801-2)
u EFT protection of data lines according to IEC 61000-4-4
(IEC801-4)
