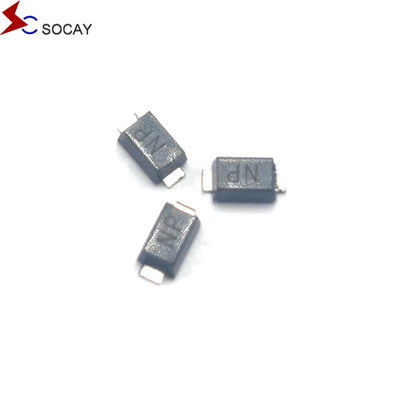

Socay TVS Diodes SMF Series SOD-123 78CA Circuit Protection Diodes 78V 220W Transient Voltage Suppressors

Socay TVS Diodes SMF Series SOD-123 78CA Circuit Protection Diodes 78V 220W Surface Mount Transient Voltage Suppressors

DATASHEET:SMF Series_v2211.1.pdf



SMF78CA Description:
The SMF Series Transient Voltage Suppressors is a semiconductor device with surge absorption capability, its response time is extremely fast, up to the sub-nanosecond level, so once the circuit receives an instantaneous high-energy shock when it can suppress this energy, by absorbing the instantaneous high-current, high-voltage clamps from the circuit, the end result is the protection of the equipment or circuit behind.




SMF78CA Specificity:

• Low leakage rate
• Uni- and Bi-directional Unit
• Passivated glass for glass junction
• Low inductivity
• Excellent grip and control capability
• Matt Tin - Lead Free
• RoHS conform and halogen free
• Compatible with the SOD-123 industrial standard package - SOD-123
• Designed to optimise board space in surface mounted applications
• 200W Peak power capability at 10 × 1000μs waveform Repetition Rate (Duty Cycle): 0.01% Duty Cycle
• Fast response: typically less than 1.0ps from 0V to VBRmin
• High-temperature solder: 260℃/40 seconds on clamps
• Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25℃×ΔT
• Plastic packaging is flammability rated 94V-0 by the Underwriters Laboratory.
• A typical failure mode is short circuiting due to overvoltage or overcurrent.
• The whisker test is carried out according to JEDEC JESD201A tables 4a and 4c.
• IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
• IEC 61000-4-2 (IEC801-2) ESD protection of data lines
• IEC 61000-4-4 (IEC801-4) EFT data line protection


SMF78CA Applications:
TVS devices are suitable for safeguarding I/O interfaces, VCC buses, and other protection circuits utilized in telecommunications, computer, consumer, and industrial applications that are susceptible to attacks.
