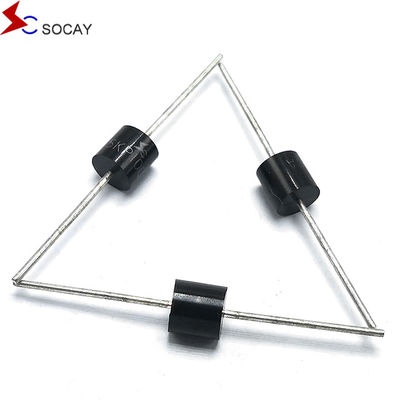

SOCAY 5000W Uni-directiona 10V TVS Diode 5KP Series Axial Lead Transient Voltage Suppressor

Reverse

Stand-Off

Voltage V_RWM (V)

Breakdown

Voltage V_BR (V) @I_T

Test

Current

I_T

(mA)

Maximum

Clamping

Voltage V_C (V) @I_PP

Maximum

Peak Pulse

Current

I_PP (A)

Maximum

Reverse

Leakage I_R (μA) @V_RWM

u Glass passivated chip junction in P600 Package

u Low leakage

u Uni and Bidirectional unit

u Excellent clamping capability

u 5000W Peak power with 10 × 1000µs waveform Duty cycle: 0.01%

u Fast to respond and respond

u RoHS compliant
u Fast response time: typically less than 1.0ps from 0 Volts to VBR min

u Typical IR less than 5μA above 12V.
u High Temperature soldering: 260°C/40 seconds at terminals
u Typical maximum temperature coefficient ΔVBR = 0.1% ×VBR@25°C× ΔT
u Plastic package has Underwriters Laboratory Flammability 94V-0
u Matte tin lead–free Plated
u Halogen free and RoHS compliant
u Typical failure mode is short from over-specified voltage or current
u Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
u IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
u ESD protection of data lines in accordance with IEC 61000-4-2
(IEC801-2)
u EFT protection of data lines in accordance with IEC 61000-4-4
(IEC801-4)
