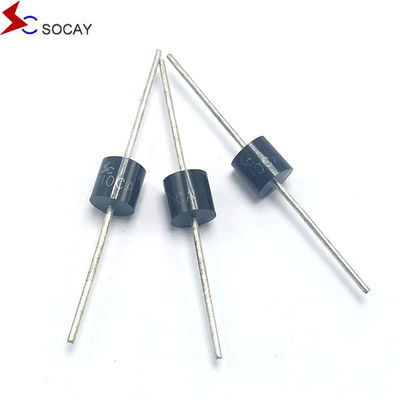

SOCAY 5000W High-power 5KP Series TVS Diode Axial Lead Transient Voltage Suppressor 5KP5.0A 5.0CA

Reverse

Stand-Off

Voltage V_RWM (V)

Breakdown

Voltage V_BR (V) @I_T

Test

Current

I_T

(mA)

Maximum

Clamping

Voltage V_C (V) @I_PP

Maximum

Peak Pulse

Current

I_PP (A)

Maximum

Reverse

Leakage I_R (μA) @V_RWM

u Glass passivated chip junction in P600 Package

u Low leakage

u Uni and Bidirectional unit

u Excellent clamping capability

u 5000W Peak power with 10 × 1000µs waveform Duty cycle: 0.01%

u Fast to respond and respond

u RoHS compliant
u Fast response time: typically less than 1.0ps from 0 Volts to VBR min

• SOCAY owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property.
• SOCAY reserves the right to make changes without further notice to any products herein.
• SOCAY makes no warranties, representations or warranties as to the fitness of its products for any particular purpose, and disclaims any liability.
• The parameters provided in the SOCAY datasheet specification may vary from application to application, and the actual performance may vary over time. All operating parameters must be verified by the customer's technical expert before application.
• Any and all responsibilities and liabilities are disclaimed if any item under this notice of warning is not complied with.
