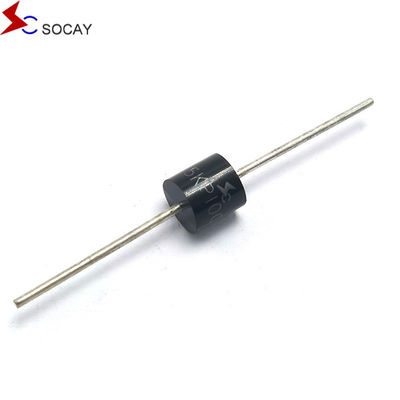

SOCAY TVS Diodes15000W 28V Axial Lead Transient Voltage Suppressors 15KPA Series

SOCAY TVS Diodes15000W 28V Axial Lead Transient Voltage Suppressors 15KPA Series

15KPA28A DATASHEET: 15KPA.pdf

15KPA28A Description:

The 15KPA series is designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

15KPA28A Features:

• Glass passivated junction in P600 package
• Low leakage
• Uni and Bidirectional unit
• Clamping capability is excellent
• 15000W Peak power capability at 10 × 1000μs waveform Repetition
  rate (duty cycle):0.01%
• Fast response time: typically less than 1.0ps from 0 Volts to VBR min
• Typical IR less than 2μA above 40V
• High Temperature soldering: 260°C/40 seconds at terminals
• Typical maximum temperature coefficient ΔVBR = 0.1% ×VBR@25°C×ΔT
• Plastic packaging with a flammability rating of Underwriters Laboratories 94V-0.
• Matte Tin Lead Free Plating
• Non-halogen and RoHS-compliant
• Common causes of failure are voltage or current exceeding specified values
• Whisker testing was carried out in accordance with Tables 4a and 4c of JEDEC JESD201A.
• IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2(IEC801-2)
• EFT protection of data lines in accordance with IEC 61000-4-4(IEC801-4)

15KPA28A Applications:

TVS devices are ideal for protecting I/O interfaces, VCC buses, and other vulnerable circuits used in telecom, computer, industrial, and consumer electronic applications.
