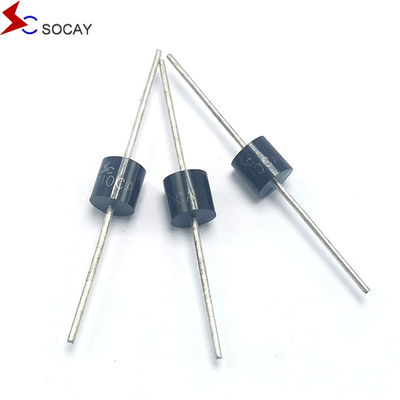

SOCAY TVS Diodes 15KPA Series Axial Lead Transient Voltage Suppressors 15000W

SOCAY TVS Diodes 15KPA Series Axial Lead Transient Voltage Suppressors 15000W

15KPA18CA DATASHEET: 15KPA.pdf

Description:

The 15KPA series is designed specifically to protect sensitive electronicequipment from voltage transients induced by lightning and other transientvoltage event.

Features:

• Glass passivated chip junction in P600 Package
• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• 15000W Peak power capability at 10 × 1000μs waveform Repetition
  rate (duty cycle):0.01%
• Fast response time: typically less than 1.0ps from 0 Volts to VBR min
• Typical IR less than 2μA above 40V
• High Temperature soldering: 260°C/40 seconds at terminals
• Typical maximum temperature coefficient ΔVBR = 0.1% ×VBR@25°C×ΔT
• Plastic package has Underwriters Laboratory Flammability 94V-0
• Matte tin lead–free Plated
• Halogen free and RoHS compliant
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table4a and 4c
• IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2(IEC801-2)
• EFT protection of data lines in accordance with IEC 61000-4-4(IEC801-4)

Applications:

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic application.
