Name: SOCAY Radial Lead TVS Diode Surge Protection KB-058 TVS 6KA High Current
Brand: Shenzhen Socay Electronics Co., Ltd.
SKU: KB-058
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: TVS Diodes

Package Type: Radial Lead

Vac: 40V

Vdc: 58V

Vbr@It (Min.): 64V

It: 10mA

Ipp: 6KA

Vc@Ipp: 110V

Ir@Vdc: 20μA

Storage Temperature Range: -55 To +150 ℃

Highlight:

Radial Lead TVS Diode Surge Protection

TVS Diode Surge Protection 6KA

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: KB-058

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

SOCAY Radial Lead TVS Diode Surge Protection KB-058 TVS 6KA High Current

Product Description

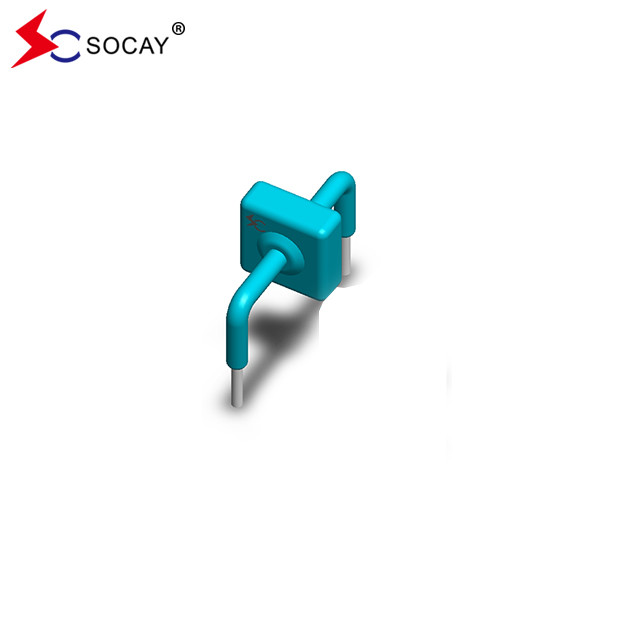

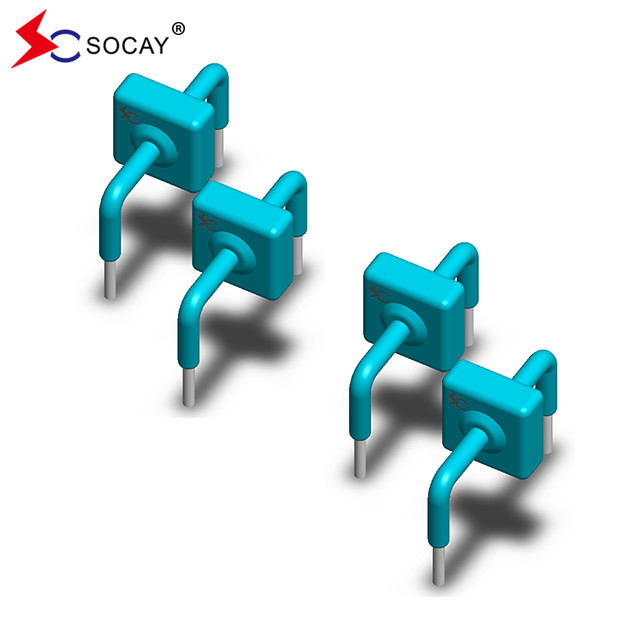

SOCAY Radial Lead TVS Diode KB-058 Blue Powder Surge Suppressor 6KA

DATASHEET: KB_v211.1.pdf

Selection Method

1.To know the customer's product, operating voltage, application port, protection level.
2.VRWM (operating voltage) value of the device ≥ normal operation in the customer's circuit
3.VC (clamp voltage) value < maximum voltage for the back-end chip
4.Select the package and power of the device according to the application port and protection level.
Description:
TVS tubes are widely used for the protection of semiconductors and sensitive devices, usually for diode protection. They are characterised by their fast response time (PS level), small size, high transient pulse suppression power and low clamping voltage.

Part Number	Reverse Stand-Off Voltage		Breakdown Voltage	Test Current	Current Rating	Maximum Clamping Voltage	Reverse Leakage
	VAC(V)	VDC(V)	V_BR(V) MIN.@I_T	I_T (mA)	I_PP8/20μs (KA)	V_C(V) @I_PP	I_R (μA) @VDC
KB-012	8.5	12.8	14	10	6	28	20
KB-015	11	15	17	10	6	30	20
KB-020	14	20	22	10	6	40	20
KB-025	17	25	28	10	6	50	20
KB-030	21	30	33	10	6	60	20
KB-042	30	42	47	10	6	77	20
KB-058	40	58	64	10	6	110	20
KB-066	45	66	70	10	6	125	20
KB-076	54	76	83	10	6	135	20
KB-100	72	100	110	10	6	165	20
KB-133	100	133	147	10	6	220	20
KB-170	130	170	180	10	6	260	20
KB-190	145	190	200	10	6	290	20
KB-200	150	200	222	10	6	330	20
KB-240	180	240	250	10	6	340	20
KB-275	210	275	300	10	6	435	20
KB-300	230	300	330	10	6	470	20
KB-380	275	380	401	10	6	520	20
KB-430	310	430	440	10	6	625	20

Classification
DIP:D0-41,DO-15,DO-201,P600
SMD:SOD-123(SMF),DO-214AC(SMA),DO-214AA(SMB),DO-214AB(SMC)
power:200W~30000W
Response time＜1PS,With clamping voltage, voltage limiting element.

Parameter	Symbol	Value	Unit
Operating junction	T_J	-55 to +150	°C
Storage Temperature Range	T_STG	-55 to +150	°C
Current Rating¹	I_PP	6	KA
Notes: 1. Rated IPP measured with 8 × 20μs pulse.

Weight	Contact manufacturer
Case	Epoxy encapsulated
Terminal	Silver plated leads, solderable per MIL-STD-750, Method 2026
