Name: Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC
Brand: SOCAY
SKU: KA-042
Rating: 4.9 (117 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: TVS Diodes

Package Type: Radial Lead

Vac: 30V

Vdc: 42V

Vbr@It (Min.): 47V

It: 10mA

Ipp: 3KA

Vc@Ipp: 77V

Ir@Vdc: 20μA

Storage Temperature Range: -55 To +150 ℃

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: KA-042

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC

Product Description

Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC

DATASHEET: KA_v211.1.pdf

Description:
The KA Series of high current transient suppressors have been specially designed for use in A.C. line protection and any demanding applications (AC or DC). Any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level. They can also be connected in series and/or parallel to create very high capacity protection solutions.

Part Number	Reverse Stand-Off Voltage		Breakdown Voltage	Test Current	Current Rating	Maximum Clamping Voltage	Reverse Leakage
	VAC(V)	VDC(V)	V_BR(V) MIN.@I_T	I_T (mA)	I_PP8/20μs (KA)	V_C(V) @I_PP	I_R (μA) @VDC
KA-012	8.5	12.8	14	10	3	28	20
KA-015	11	15	17	10	3	30	20
KA-020	14	20	22	10	3	40	20
KA-025	17	25	28	10	3	50	20
KA-030	21	30	33	10	3	60	20
KA-042	30	42	47	10	3	77	20
KA-058	40	58	64	10	3	110	20
KA-066	45	66	70	10	3	125	20
KA-076	54	76	85	10	3	140	20
KA-100	72	100	110	10	3	165	20
KA-133	100	133	147	10	3	220	20
KA-170	130	170	180	10	3	260	20
KA-190	145	190	200	10	3	290	20
KA-200	150	200	222	10	3	330	20
KA-240	180	240	250	10	3	340	20
KA-380	275	380	401	10	3	520	20
KA-430	310	430	440	10	3	325	20

Features:

Axial lead terminals
High current transient suppressor
Excellent Clamping Capability
Glass Passivated Junction
Bi-directional
Low Slope Resistance
Repetition Rate (duty cycle):0.01%
Hazardous Substances Free
RoHS Compliant
High Temperature soldering: 260°C/10 seconds at terminals
Epoxy Encapsulated
Silver plated leads
Solderable per MIL-STD-202 Method 208

Parameter	Symbol	Value	Unit
Operating junction	T_J	-55 to +150	°C
Storage Temperature Range	T_STG	-55 to +150	°C
Current Rating¹	I_PP	3	KA
Notes: 1. Rated IPP measured with 8 × 20μs pulse.

Weight	Contact manufacturer
Case	Epoxy encapsulated
Terminal	Silver plated leads, solderable per MIL-STD-750, Method 2026

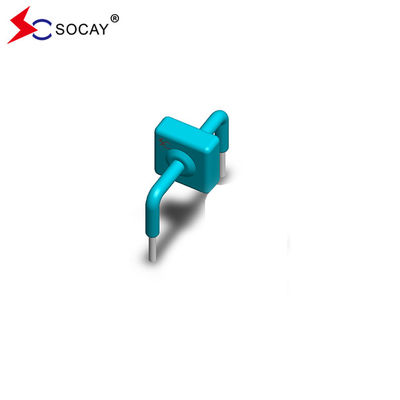

Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC 0

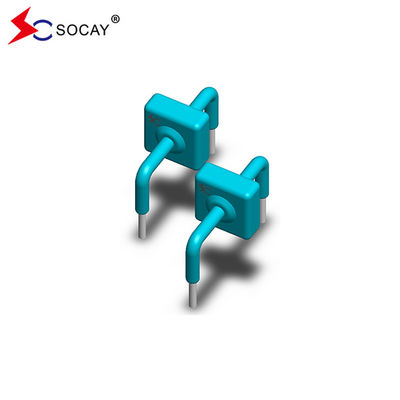

Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC 1

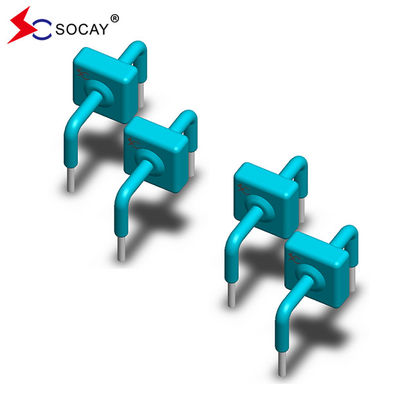

Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC 2

Blue Powder Surge Suppressor KA-042 Radial Lead TVS Diode VBR 47V 77VC 3
