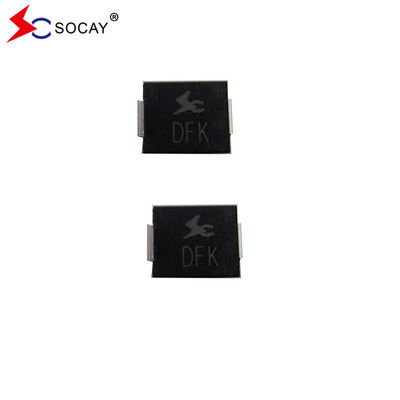

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB

3000PCS
MOQ
Negotiable
Price
SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB
Features Gallery Product Description Request A Quote
Features
Specifications
SMCJ220CA Product Name: TVS Diodes
SMCJ220CA Package Type: DO-214AB/SMC
SMCJ220CA Vrwm: 220V
Vbr@It (Min.): 246V
SMCJ220CA Vbr@It (Max.): 272V
SMCJ220CA It: 1mA
SMCJ220CA Vc@Ipp: 356V
Storage Temperature Range: -55 To +150 ℃
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMCJ220CA
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: tape reel
Delivery Time: 5-8 work days
Supply Ability: 10000000pcs
Product Description

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB



DATASHEET:  SMCJ_v2107.1 .pdf





Transient Voltage Suppressors SMCJ220CA Explanation:

Transient Voltage Suppressors SMCJ220CA (also known as a TVS Diode, transil or thyrector) is a protection diode designed to protect electronic circuits against transients and overvoltage threats such as EFT (electrically fast transients) and ESD (electro-static discharge).

Transient Voltage Suppressors SMCJ220CA is component that are used to protect sensitive components such as semiconductors. Applications of Transient Voltage Suppressor Diode can be uesd in  AC/DC power lines, and Telecommunication Equipments, Data and Signal lines, Microprocessor and MOS memory.  Its main features: low clamping voltage, doesn't degrade, broad voltage spectrum,extremely fast reseponse time, limited surge current rating, high capacitance for low voltage types.



Transient Voltage Suppressors Part Number Marking

Transient Voltage Suppressors Reverse

Stand-Off

Voltage VRWM (V)

Breakdown

Voltage VBR (V)

@IT

Transient Voltage Suppressors Test

Current

IT (mA)

Transient Voltage Suppressors Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMCJ190A SMCJ190CA GHV BHV 190.0 211.00 232.00 1 307.8 4.87 5
SMCJ200A SMCJ200CA GHW BHW 200.0 224.00 247.00 1 324.0 4.60 5
SMCJ220A SMCJ220CA GHX BHX 220.0 246.00 272.00 1 356.0 4.20 5





SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 0

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 1

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 2SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 3

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 4


SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 5

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 6

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 7



SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 8

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 9

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 10

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 11

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 12

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 13

SOCAY TVS Transient Voltage Suppressors SMCJ220CA SMCJ Series DO-214AB 14
