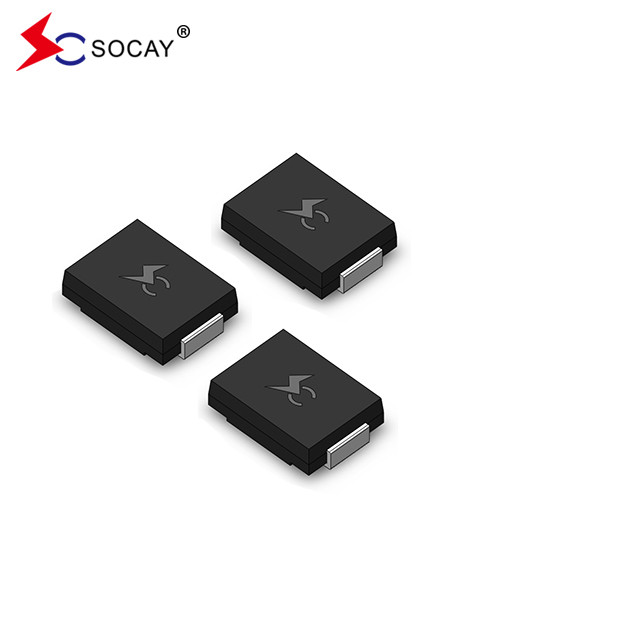

New Original SMCJ ESD Suppressors TVS Diodes DO-214AB SMCJ90CA

New Original SMCJ ESD Suppressors TVS Diodes DO-214AB SMCJ90CA

DATASHEET:  SMCJ_v2107.1 .pdf

Surface Mount Transient Voltage Suppressors (TVS) Description:

The Surface Mount Transient Voltage Suppressors (TVS) is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Surface Mount Transient Voltage Suppressors (TVS) Features:

u SMCJ90CA is suitable for surface mounted applications in order to optimize board space

u Its leakage is very low

u Bidirectional unit component

u Glass passivated junction

u SMCJ90CA 's inductance is low

u It owns excellent clamping capability

u Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%  is 1500W

u SMCJ90CA 's Fast response time: typically less than 1.0ps from 0 Volts to V_BR min

u Typical I_R less than 5μA above 12V.

u High Temperature soldering: 260°C/40 seconds at terminals

u Typical maximum temperature coefficient ΔV_BR = 0.1% × V_BR@25°C× ΔT

u Plastic package has Underwriters Laboratory Flammability 94V-0

u Matte tin lead–free Plated

u SMCJ90CA  has Halogen free and RoHS compliant

u Typical failure mode is short from over-specified voltage or current

u Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

u IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)

u SMCJ90CA 's ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)

u EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
