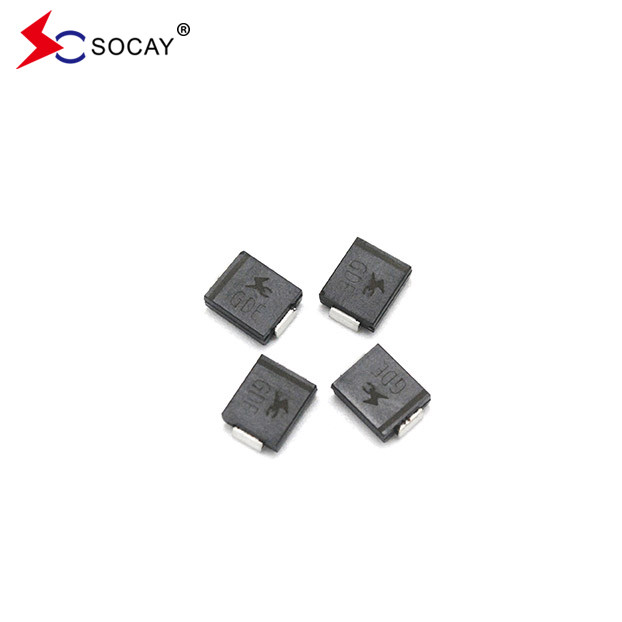

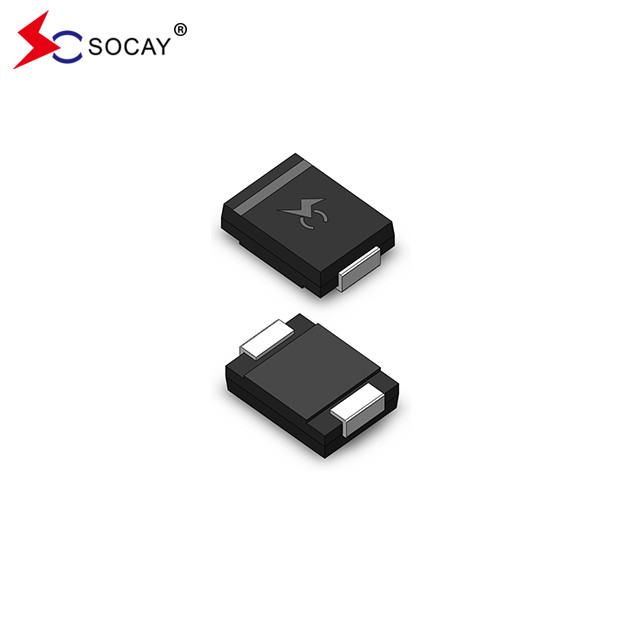

SMCJ TVS ESD Suppression Diodes DO-214AB-2 SMCJ90CA Surface Mount

SMCJ TVS ESD Suppression Diodes DO-214AB-2 SMCJ90CA Surface Mount

DATASHEET:  SMDJ_v2107.1 .pdf

TVS ESD Suppression Diodes Description:

The SMCJ serie SMCJ90CA is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

TVS ESD Suppression Diodes Features:

• SMCJ90CA is for surface mounted applications in order to optimize board space
• SMCJ90CA 's leakage is very low
• SMCJ90CA is a Bidirectional unit
• Glass passivated junction
• It has Low inductance
• It has Excellent clamping capability
• 1500W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%
• Fast response time: typically less than 1.0ps from 0 Volts to VBR min
• Typical IR less than 5μA above 12V.
• High Temperature soldering: 260°C/40 seconds at terminals
• Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT
• Plastic package has Underwriters Laboratory Flammability 94V-0
• Matte tin lead–free Plated
• Halogen free and RoHS compliant
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
• EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

TVS ESD Suppression Diodes Electrical Characteristics (T_A=25℃ unless otherwise noted) :
