Home /Products/TVS Diodes/Hot Sell SMCJ100A TVS DIODE 100VWM 162VC DO214AB SMCJ100A

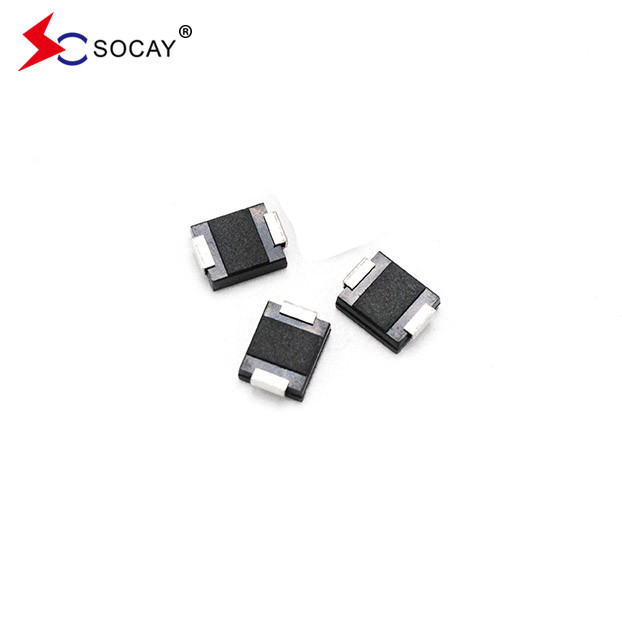

Hot Sell SMCJ100A TVS DIODE 100VWM 162VC DO214AB SMCJ100A

3000PCS
MOQ
Negotiable
Price
Hot Sell SMCJ100A TVS DIODE 100VWM 162VC DO214AB SMCJ100A
Features Gallery Product Description Request A Quote
Features
Specifications
SMCJ100A Name: TVS Diodes
Package Type: DO-214AB/SMC
SMCJ100A Vrwm: 100V
Vbr@It (Min.): 111V
Vbr@It (Max.): 123V
SMCJ100A It: 1mA
SMCJ100A Vc@Ipp: 162V
SMCJ100A Ipp: 10.27A
Ir@Vrwm: 1000μA
Storage Temperature Range: -55 To +150 ℃
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMCJ100A
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Supply Ability: 1000000pcs
Product Description

Hot Sell SMCJ100A TVS DIODE 100VWM 162VC DO214AB SMCJ100A



DATASHEET:  SMDJ_v2107.1 .pdf







TVS DIODE Electrical Characteristics (TA=25℃ unless otherwise noted) :

TVS DIODE Part Number TVS DIODE Marking

TVS DIODE Reverse

Stand-Off

Voltage VRWM (V)

TVS DIODE Breakdown

Voltage VBR (V)

@IT

TVS DIODE Test

Current

IT (mA)

Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMCJ45A SMCJ45CA GFV BFV 45.0 50.00 55.30 1 72.7 20.63 5
SMCJ48A SMCJ48CA GFX BFX 48.0 53.30 58.90 1 77.4 19.38 5
SMCJ51A SMCJ51CA GFZ BFZ 51.0 56.70 62.70 1 82.4 18.20 5
SMCJ54A SMCJ54CA GGE BGE 54.0 60.00 66.30 1 87.1 17.22 5
SMCJ58A SMCJ58CA GGG BGG 58.0 64.40 71.20 1 93.6 16.03 5
SMCJ60A SMCJ60CA GGK BGK 60.0 66.70 73.70 1 96.8 15.50 5
SMCJ64A SMCJ64CA GGM BGM 64.0 71.10 78.60 1 103.0 14.56 5
SMCJ70A SMCJ70CA GGP BGP 70.0 77.80 86.00 1 113.0 13.27 5
SMCJ75A SMCJ75CA GGR BGR 75.0 83.30 92.10 1 121.0 12.40 5
SMCJ78A SMCJ78CA GGT BGT 78.0 86.70 95.80 1 126.0 11.90 5
SMCJ80A SMCJ80CA GGB BGB 80.0 88.80 97.60 1 129.6 11.57 5
SMCJ85A SMCJ85CA GGV BGV 85.0 94.40 104.00 1 137.0 10.95 5
SMCJ90A SMCJ90CA GGX BGX 90.0 100.00 111.00 1 146.0 10.27 5
SMCJ100A SMCJ100CA GGZ BGZ 100.0 111.00 123.00 1 162.0 9.26 5
