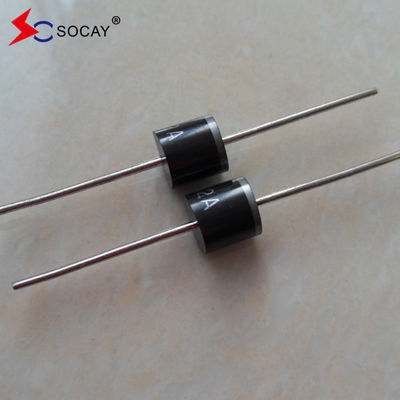

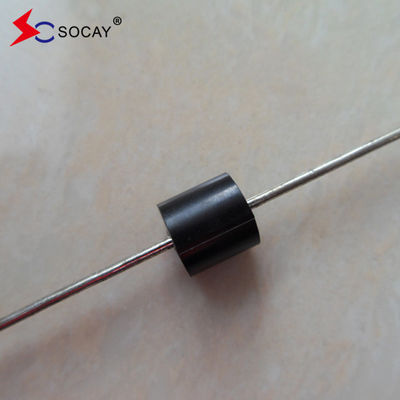

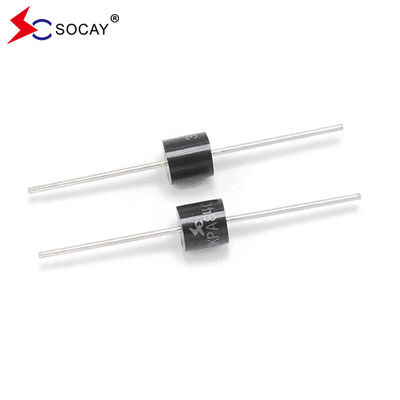

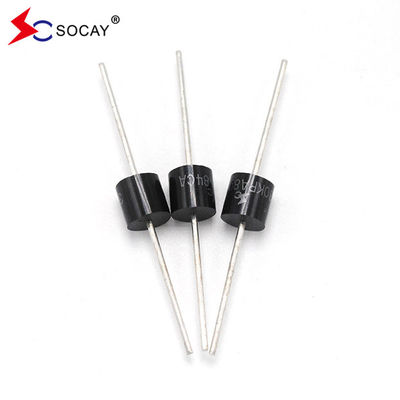

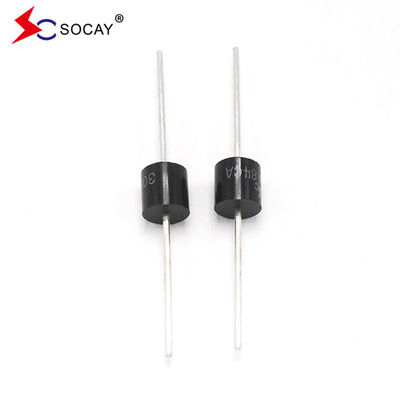

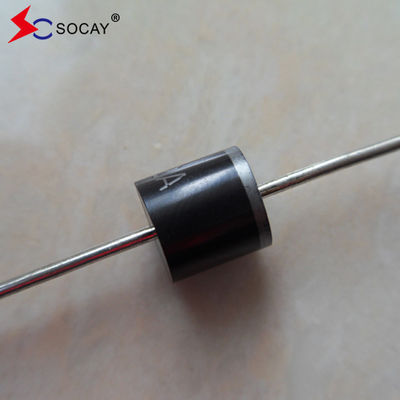

SOCAY 30KW Axial Lead Transient Voltage Suppressor High-Power 30KPA Series TVS Diode 30KPA30A

250PCS
MOQ
Negotiable
Price
SOCAY 30KW Axial Lead Transient Voltage Suppressor High-Power 30KPA Series TVS Diode 30KPA30A
Features Gallery Product Description Request A Quote
Features
Specifications
Item: TVS Diodes
Footprint: R6/P600
Vrwm: 30.0V
Vbr@It (Min.): 33.51V
It: 50mA
Vc@Ipp: 55.2V
Ipp: 548.9A
Ir@Vrwm: 5000μA
Storage Temperature Range: -55 To +150 ℃
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: 30KPAP30A
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 2-3weeks
Product Description

SOCAY 30KW Axial Lead Transient Voltage Suppressor High-power 30KPA Series TVS Diode 30KPA30A



DATASHEET:  30KPA.pdf





Introduction :

TVS tubes are widely used for the protection of semiconductors and sensitive devices, usually for diode protection. They are characterised by their fast response time (PS level), small size, high transient pulse suppression power and low clamping voltage.





Part Number

Reverse

Stand-Off

Voltage

VRWM

(V)

Breakdown

Voltage VBR (V)

@IT

Test

Current

IT

(mA)

Maximum

Clamping

Voltage VC @IPP

(V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM

(μA)
Uni Bi   MIN
30KPA28A 30KPA28CA 28 31.28 50 50.0 606.0 5000
30KPA30A 30KPA30CA 30 33.51 50 55.2 548.9 5000
30KPA33A 30KPA33CA 33 36.90 50 58.5 517.9 5000
30KPA36A 30KPA36CA 36 40.20 50 61.8 490.3 5000
30KPA39A 30KPA39CA 39 43.60 20 67.2 450.9 2000
30KPA42A 30KPA42CA 42 46.90 10 72.0 420.8 1000
30KPA43A 30KPA43CA 43 48.00 10 73.0 415.1 1000
30KPA45A 30KPA45CA 45 50.30 5 77.4 391.5 250
30KPA48A 30KPA48CA 48 53.60 5 81.6 371.3 150
30KPA51A 30KPA51CA 51 57.00 5 86.4 350.7 50
30KPA54A 30KPA54CA 54 60.30 5 91.4 331.5 20
30KPA58A 30KPA58CA 58 64.80 5 92.4 327.9 20
30KPA60A 30KPA60CA 60 67.00 5 102.0 297.1 15
30KPA64A 30KPA64CA 64 71.50 5 104.0 291.3 10
30KPA66A 30KPA66CA 66 73.70 5 107.0 283.2 2
30KPA70A 30KPA70CA 70 78.20 5 109.0 278.0 2
30KPA71A 30KPA71CA 71 79.30 5 111.5 271.7 2
30KPA72A 30KPA72CA 72 80.40 5 114.0 265.8 2
30KPA75A 30KPA75CA 75 83.80 5 119.4 253.8 2
30KPA78A 30KPA78CA 78 87.10 5 129.0 234.9 2
30KPA84A 30KPA84CA 84 93.80 5 139.2 217.7 2
30KPA90A 30KPA90CA 90 100.50 5 146.4 207.0 2
30KPA96A 30KPA96CA 96 107.20 5 156.0 194.2 2
30KPA102A 30KPA102CA 102 113.90 5 165.6 183.0 2
30KPA108A 30KPA108CA 108 120.60 5 175.2 172.9 2
30KPA120A 30KPA120CA 120 134.00 5 194.4 155.9 2
30KPA132A 30KPA132CA 132 147.40 5 213.0 142.3 2
30KPA144A 30KPA144CA 144 160.80 5 223.2 135.8 2
30KPA150A 30KPA150CA 150 167.60 5 233.4 129.8 2
30KPA156A 30KPA156CA 156 174.30 5 245.0 123.7 2
30KPA160A 30KPA160CA 160 178.70 5 252.6 120.0 2
30KPA168A 30KPA168CA 168 187.70 5 272.4 111.2 2
30KPA170A 30KPA170CA 170 189.90 5 275.0 110.2 2
30KPA180A 30KPA180CA 180 201.10 5 290.4 104.3 2
30KPA198A 30KPA198CA 198 221.20 5 319.8 94.7 2
30KPA216A 30KPA216CA 216 241.30 5 348.6 86.9 2
30KPA240A 30KPA240CA 240 268.10 5 387.0 78.3 2
30KPA258A 30KPA258CA 258 188.20 5 416.4 72.8 2
30KPA260A 30KPA260CA 260 290.40 5 416.0 72.8 2
30KPA270A 30KPA270CA 270 301.60 5 436.2 69.5 2
30KPA280A 30KPA280CA 280 312.80 5 464.0 65.3 2
30KPA288A 30KPA288CA 288 321.70 5 469.9 64.5 2











Features:

Please Kindly contact us get full datasheet of 30KP diodes





Applications:



Transmission systems,

Instruments, meters,

Communication products,

Control panels, GPS navigators .



Parameter Symbol Value Unit
Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2) PPPM 30000 Watts
Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3) IPP See Next Table Amps
Power Dissipation on Infinite Heat Sink at TL=75°C PM(AV) 8.0 Watt
Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 500 Amps
Operating junction and Storage Temperature Range. TJ , TSTG -55 to +150 °C

Notes:

1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25°C per Fig. 2.

2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.

4. VF < 3.5V for VBR < 200V and VF< 6.5V for VBR > 201V.
