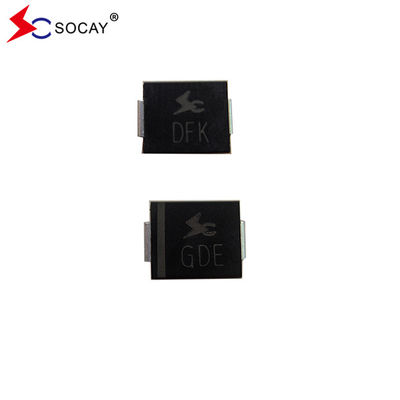

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB

3000PCS
MOQ
Negotiable
Price
SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB
Features Gallery Product Description Request A Quote
Features
Specifications
SMCJ33CA Name: TVS Diodes
SMCJ33CA Package Type: DO-214AB/SMC
SMCJ33CA Vrwm: 33V
Vbr@It (Min.): 36.7V
Vbr@It (Max.): 40.60V
SMCJ33CA It: 1mA
SMCJ33CA Vc@Ipp: 53.3V
Storage Temperature Range: -55 To +150 ℃
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMCJ33CA
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: tape reel
Delivery Time: 5-8 work days
Supply Ability: 10000000pcs
Product Description

SMCJ33 SMCJ33C Electronic Component Bidirectional Transient Voltage Suppressor SMCJ Series TVS SMCJ33CA Diode DO-214AB



DATASHEET:  SMCJ_v2107.1 .pdf





SMCJ Series TVS SMCJ33CA Illustration:

The SMCJ Series TVS SMCJ33CA is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.



SMCJ Series TVS SMCJ33CA Features:

u TVS SMCJ33CA is For surface mounted applications in order to optimize board space

u It has Low leakage

u It is a Bidirectional unit

u Glass passivated junction

u TVS SMCJ33CA has Low inductance

u Excellent clamping capability

u 1500W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%



TVS Part Number TVS Marking

TVS Reverse

Stand-Off

Voltage VRWM (V)

TVS Breakdown

Voltage VBR (V)

@IT

TVS Test

Current

IT (mA)

TVS Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMCJ30A SMCJ30CA GFK BFK 30.0 33.30 36.80 1 48.4 30.99 5
SMCJ33A SMCJ33CA GFM BFM 33.0 36.70 40.60 1 53.3 28.14 5



SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 0

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 1

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 2SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 3

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 4


SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 5

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 6

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 7



SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 8

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 9

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 10

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 11

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 12

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 13

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB 14
