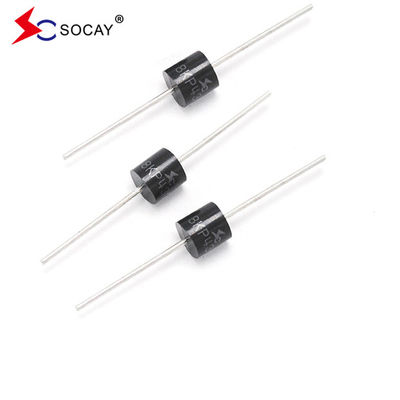

8000W High-power 8KP Series TVS Diode 8KP22A Axial Lead Transient Voltage Suppressor

Reverse

Stand-Off

Voltage V_RWM (V)

Breakdown

Voltage V_BR (V) @I_T

Test

Current

I_T

(mA)

Maximum

Clamping

Voltage V_C (V) @I_PP

Maximum

Peak Pulse

Current

I_PP (A)

Maximum

Reverse

Leakage I_R (μA) @V_RWM

u Glass passivated chip junction in P600 Package

u Low leakage

u Uni and Bidirectional unit

u Excellent clamping capability

u 8000W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%

u Fast response time

u RoHS compliant
