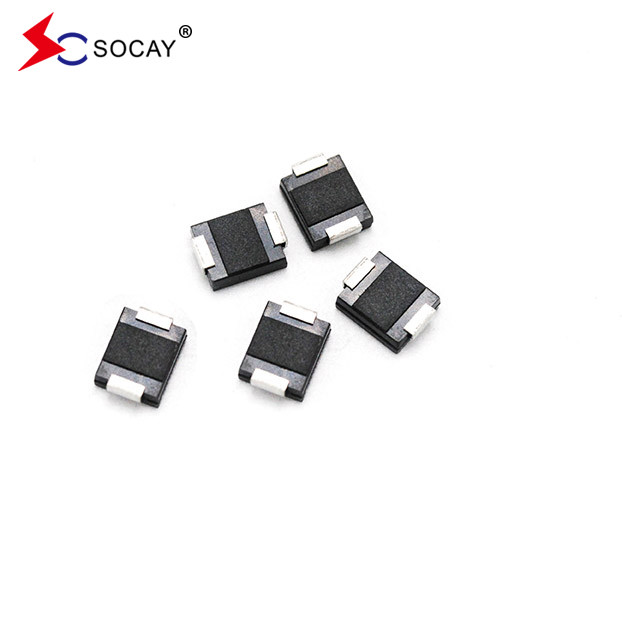

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes

3000PCS
MOQ
Negotiable
Price
SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes
Features Gallery Product Description Request A Quote
Features
Specifications
TVS Diodes Type: DO-214AB/SMC
SMDJ170CA Name: TVS Diodes
TVS Diodes Vrwm: 170V
Vbr@It (Min.): 189V
Vbr@It (Max.): 209V
TVS Diodes It: 1mA
SMDJ170CA Vc@Ipp: 275V
TVS Diodes Ipp: 10.91A
SMDJ170CA Ir@Vrwm: 1000μA
Storage Temperature Range: -55 To +150 ℃
Highlight:

TVS Diodes SMDJ51A

,

TVS Diodes SMDJ54A

,

SMDJ12CA
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMDJ170CA
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Supply Ability: 1000000pcs
Product Description

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes



TVS Diodes SMDJ170CA DATASHEET:  SMDJ_v2107.1 .pdf





TVS Diode SMDJ170CA Has this characterestic: High Temperature soldering: 260°C/40 seconds at terminals. Its response time is very fast typically less than 1.0ps from 0 Volts to VBR min. TVS Diodes SMDJ170CA'S Peak Forward Surge Current 8.3ms Single Half Sine Wave is 300 Amps. Peak Pulse Power Dissipation with a 10/1000µs waveform is 3000 Watts.





TVS Diode SMDJ170CA

Part Number



TVS Diode SMDJ170CA

Marking

 TVS Diode SMDJ170CA Reverse Stand-Off Voltage VRWM (V)

Breakdown Voltage VBR (V)

@IT

TVS Diode SMDJ170CA Test Current IT

(mA)

TVS Diode SMDJ170CA Maximum Clamping Voltage VC

@IPP (V)

TVS Diode SMDJ170CA Maximum Peak Pulse Current

IPP (A)

Maximum Reverse Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMDJ170A SMDJ170CA PHR DHR 170.0 189.00 209.00 1 275.0 10.91 5







SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 0

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 1

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 2





SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 3SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 4


SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 5

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 6

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 7



SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 8

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 9

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 10

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 11

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 12

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes 13
