Name: SMDJ48A SMD Transient Voltage Suppression Diode SMDJ Series 3000W 5V - 440V
Brand: Shenzhen Socay Electronics Co., Ltd.
SKU: SMDJ48A
Availability: InStock

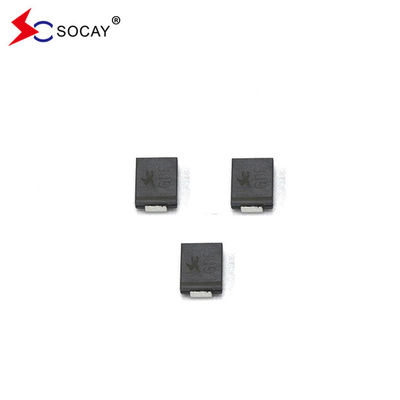

SMDJ48A SMD Transient Voltage Suppression Diode SMDJ Series 3000W 5V - 440V

3000PCS

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

SMDJ48A Name: TVS Diodes

SMDJ48A Package Type: DO-214AB/SMC

SMDJ48A Vrwm: 48V

Vbr@It (Min.): 53.3V

Vbr@It (Max.): 58.9V

SMDJ48A It: 1mA

Vc@Ipp: 77.4V

SMDJ48A Ipp: 38.76A

SMDJ48A Ir@Vrwm: 1000μA

Storage Temperature Range: -55 To +150 ℃

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: SMDJ48A

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Supply Ability: 1000000pcs

Gallery

SMDJ48A SMD Transient Voltage Suppression Diode SMDJ Series 3000W 5V - 440V

Product Description

Brand SMDJ48A SMD Transient Voltage Suppression Diode SMDJ Series 3000W 5V~440V

DATASHEET: SMDJ_v2107.1 .pdf

SMDJ48A SMD Transient Voltage Suppression Description:

The SMDJ48A SMD Transient Voltage Suppression is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

SMD TVS Parameter	Symbol	SMD TVS Value	Unit
SMD TVS Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2)	P_PPM	3000	Watts
Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3)	I_PP	See Next Table	Amps
SMD TVS Power Dissipation on Infinite Heat Sink at T_L=75°C	PM(AV)	6.0	Watt
Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3)	I_FSM	300	Amps
SMD TVS Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only (Note 4)	V_F	3.5/5.0	Voltage
SMD TVS Operating junction and Storage Temperature Range.	TJ , TSTG	-55 to +150	℃

Notes:

1. Non-repetitive current pulse, per Fig. 3 and derated above T_A = 25℃ per Fig. 2.

2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.

4. V_F < 3.5V for V_BR < 200V and V_F< 6.5V for V_BR > 201V.

SMD TVS Part Number		SMD TVS Marking		SMD TVS Reverse Stand-Off Voltage VRWM (V)	SMD TVS Breakdown Voltage VBR (V) @IT		SMD TVS Test Current IT (mA)	Maximum Clamping Voltage VC @IPP (V)	Maximum Peak Pulse Current IPP (A)	Maximum Reverse Leakage IR @VRWM (μA)
Uni	Bi	Uni	Bi		MIN	MAX
SMDJ45A	SMDJ45CA	PFV	DFV	45.0	50.00	55.30	1	72.7	41.27	5
SMDJ48A	SMDJ48CA	PFX	DFX	48.0	53.30	58.90	1	77.4	38.76	5
