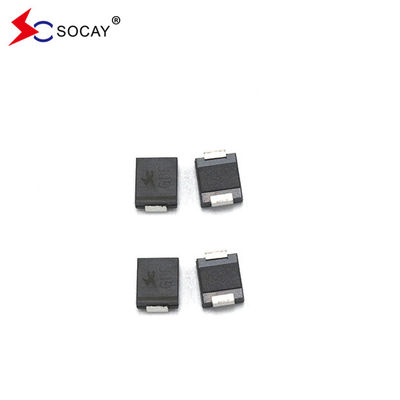

Transient Suppression Diode TVS Diode SMDJ Transient Voltage Suppressors Diodes SMDJ36A

Transient Suppression Diode TVS Diode SMDJ Transient Voltage Suppressors Diodes SMDJ36A

DATASHEET:  SMDJ_v2107.1 .pdf

SMDJ TVS Diode Features:

u SMDJ TVS can be used in surface mounted applications in order to optimize board space

u SMDJ TVS' leakage is low

u This SMDJ TVS is a Unidirectional component

u Glass passivated junction

u It has low inductance

u SMDJ TVS has a excellent clamping capability

u 3000W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%

u Fast response time: typically less than 1.0ps from 0 Volts to VBR min

u SMDJ TVS' Typical IR less than 5μA above 12V.

u High Temperature soldering: 260°C/40 seconds at terminals

u Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT

u Plastic package has Underwriters Laboratory Flammability 94V-0

u Matte tin lead–free Plated

u SMDJ TVS has Halogen free and RoHS compliant

u Typical failure mode is short from over-specified voltage or current

u Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

u IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)

u SMDJ TVS' ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)

u EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
