SOCAY Unidirectional TVS Diodes 5.0SMDJ33A For Surface Mounted Applications

500PCS
MOQ
Negotiable
Price
SOCAY Unidirectional TVS Diodes 5.0SMDJ33A For Surface Mounted Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Key Words: Diodes
Package Size: DO-214AB/SMC
Vrwm: 33.0V
Vbr@It (Min.): 36.70V
Vbr@It (Max.): 40.60V
It: 1mA
Vc@Ipp: 53.3V
Ipp: 94.75A
Ir@Vrwm: 5μA
Material: Silicon
Highlight:

Unidirectional TVS Diodes

,

TVS Diodes 5.0SMDJ33A

,

TVS Surface Mount Diodes
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: 5.0SMDJ33A
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

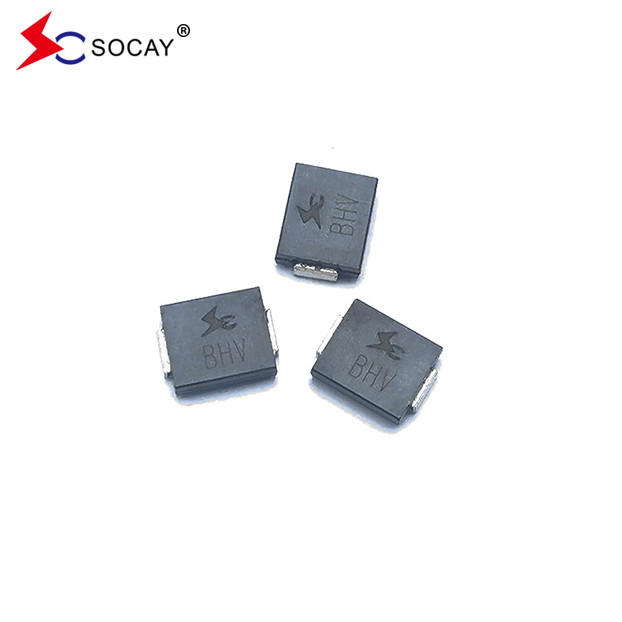

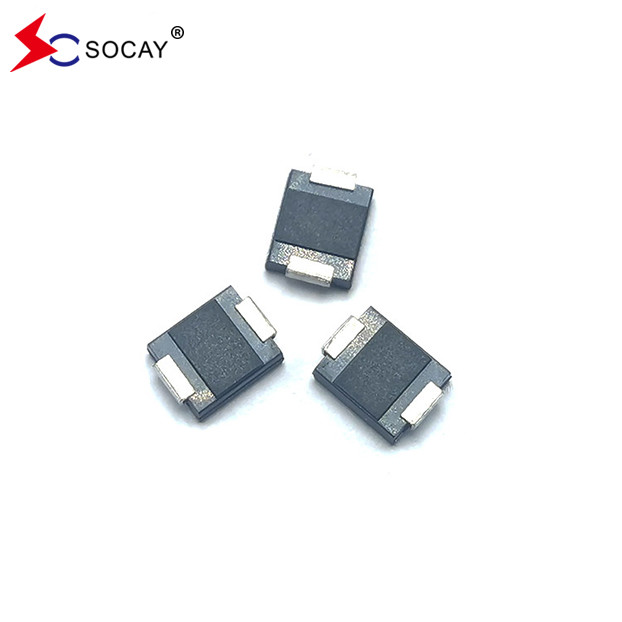

SOCAY Uni-directional TVS 5.0SMDJ33A for Surface Mounted Applications in Order to Optimize Board Space



DATASHEET:  5.0SMDJ_v2107.1 .pdf



Temperature Cycle JESD22-A104
Pressure Cooker JESD22-A102

High Temp. Storage JESD22-A103

HTRB JESD22-A108

Thermal Shock JESD22-A106



Part Number Marking

Reverse

Stand-Off

Voltage VRWM (V)

Breakdown

Voltage VBR (V)

@IT

Test

Current

IT (mA)

Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
— 5.0SMDJ8.0CA — 5BDP 8.0 8.89 9.83 1 13.6 367.60 100
5.0SMDJ11A 5.0SMDJ11CA 5PDX 5BDX 11.0 12.20 13.50 1 18.2 277.47 800
5.0SMDJ12A 5.0SMDJ12CA 5PDZ 5BDZ 12.0 13.30 14.70 1 19.9 253.77 800
5.0SMDJ13A 5.0SMDJ13CA 5PEE 5BEE 13.0 14.40 15.90 1 21.5 234.88 500
5.0SMDJ14A 5.0SMDJ14CA 5PEG 5BEG 14.0 15.60 17.20 1 23.2 217.67 200
5.0SMDJ15A 5.0SMDJ15CA 5PEK 5BEK 15.0 16.70 18.50 1 24.4 206.97 100
5.0SMDJ16A 5.0SMDJ16CA 5PEM 5BEM 16.0 17.80 19.70 1 26.0 194.23 50
5.0SMDJ17A 5.0SMDJ17CA 5PEP 5BEP 17.0 18.90 20.90 1 27.6 182.97 20
5.0SMDJ18A 5.0SMDJ18CA 5PER 5BER 18.0 20.00 22.10 1 29.2 172.95 10
5.0SMDJ19A 5.0SMDJ19CA 5PET 5BET 19.0 21.10 23.30 1 30.8 164.07 10
5.0SMDJ20A 5.0SMDJ20CA 5PEV 5BEV 20.0 22.20 24.50 1 32.4 155.86 5
5.0SMDJ22A 5.0SMDJ22CA 5PEX 5BEX 22.0 24.40 26.90 1 35.5 142.25 5
5.0SMDJ24A 5.0SMDJ24CA 5PEZ 5BEZ 24.0 26.70 29.50 1 38.9 129.82 5
5.0SMDJ26A 5.0SMDJ26CA 5PFE 5BFE 26.0 28.90 31.90 1 42.1 119.95 5
5.0SMDJ28A 5.0SMDJ28CA 5PFG 5BFG 28.0 31.10 34.40 1 45.4 111.23 5
5.0SMDJ30A 5.0SMDJ30CA 5PFK 5BFK 30.0 33.30 36.80 1 48.4 104.34 5
5.0SMDJ33A 5.0SMDJ33CA 5PFM 5BFM 33.0 36.70 40.60 1 53.3 94.75 5
5.0SMDJ36A 5.0SMDJ36CA 5PFP 5BFP 36.0 40.00 44.20 1 58.1 86.92 5
5.0SMDJ40A 5.0SMDJ40CA 5PFR 5BFR 40.0 44.40 49.10 1 64.5 78.29 5
5.0SMDJ43A 5.0SMDJ43CA 5PFT 5BFT 43.0 47.80 52.80 1 69.4 72.77 5
5.0SMDJ45A 5.0SMDJ45CA 5PFV 5BFV 45.0 50.00 55.30 1 72.7 69.46 5
5.0SMDJ48A 5.0SMDJ48CA 5PFX 5BFX 48.0 53.30 58.90 1 77.4 65.25 5
5.0SMDJ51A 5.0SMDJ51CA 5PFZ 5BFZ 51.0 56.70 62.70 1 82.4 61.29 5
5.0SMDJ54A 5.0SMDJ54CA 5PGE 5BGE 54.0 60.00 66.30 1 87.1 57.98 5
5.0SMDJ58A 5.0SMDJ58CA 5PGG 5BGG 58.0 64.40 71.20 1 93.6 53.95 5
5.0SMDJ60A 5.0SMDJ60CA 5PGK 5BGK 60.0 66.70 73.70 1 96.8 52.17 5
5.0SMDJ64A 5.0SMDJ64CA 5PGM 5BGM 64.0 71.10 78.60 1 103.0 49.03 5
5.0SMDJ70A 5.0SMDJ70CA 5PGP 5BGP 70.0 77.80 86.00 1 113.0 44.69 5
5.0SMDJ75A 5.0SMDJ75CA 5PGR 5BGR 75.0 83.30 92.10 1 121.0 41.74 5
5.0SMDJ78A 5.0SMDJ78CA 5PGT 5BGT 78.0 86.70 95.80 1 126.0 40.08 5
5.0SMDJ80A 5.0SMDJ80CA 5PGB 5BGB 80.0 88.80 97.60 1 129.6 38.97 5
5.0SMDJ85A 5.0SMDJ85CA 5PGV 5BGV 85.0 94.40 104.00 1 137.0 36.86 5
5.0SMDJ90A 5.0SMDJ90CA 5PGX 5BGX 90.0 100.00 111.00 1 146.0 34.59 5
5.0SMDJ100A 5.0SMDJ100CA 5PGZ 5BGZ 100.0 111.00 123.00 1 162.0 31.17 5
5.0SMDJ110A 5.0SMDJ110CA 5PHE 5BHE 110.0 122.00 135.00 1 177.0 28.53 5
5.0SMDJ120A 5.0SMDJ120CA 5PHG 5BHG 120.0 133.00 147.00 1 193.0 26.17 5
5.0SMDJ130A 5.0SMDJ130CA 5PHK 5BHK 130.0 144.00 159.00 1 209.0 24.16 5
5.0SMDJ140A 5.0SMDJ140CA 5PHB 5BHB 140.0 155.00 171.00 1 226.8 22.27 5
5.0SMDJ150A 5.0SMDJ150CA 5PHM 5BHM 150.0 167.00 185.00 1 243.0 20.78 5
5.0SMDJ160A 5.0SMDJ160CA 5PHP 5BHP 160.0 178.00 197.00 1 259.0 19.50 5
5.0SMDJ170A 5.0SMDJ170CA 5PHR 5BHR 170.0 189.00 209.00 1 275.0 18.36 5
5.0SMDJ180A 5.0SMDJ180CA 5PHT 5BHT 180.0 201.00 220.00 1 291.6 17.32 5
5.0SMDJ190A 5.0SMDJ190CA 5PHV 5BHV 190.0 211.00 232.00 1 307.8 16.41 5
5.0SMDJ200A 5.0SMDJ200CA 5PHW 5BHW 200.0 224.00 247.00 1 324.0 9.26 5
5.0SMDJ220A 5.0SMDJ220CA 5PHX 5BHX 220.0 246.00 272.00 1 356.0 8.43 5
5.0SMDJ250A 5.0SMDJ250CA 5PHZ 5BHZ 250.0 279.00 309.00 1 405.0 7.41 5
5.0SMDJ300A 5.0SMDJ300CA 5PJE 5BJE 300.0 335.00 371.00 1 486.0 6.17 5
5.0SMDJ350A 5.0SMDJ350CA 5PJG 5BJG 350.0 391.00 432.00 1 567.0 5.29 5
5.0SMDJ400A 5.0SMDJ400CA 5PJK 5BJK 400.0 447.00 494.00 1 648.0 4.63 5
5.0SMDJ440A 5.0SMDJ440CA 5PJM 5BJM 440.0 492.00 543.00 1 713.0 4.21 5



Tvs Diode choose method



1.To know the customer's product, operating voltage, application port, protection level.

2.VRWM (operating voltage) value of the device ≥ normal operation in the customer's circuit

3.VC (clamp voltage) value < maximum voltage for the back-end chip

4.Select the package and power of the device according to the application port and protection level.

Applications:

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications .





Maximum Ratings (TA=25℃ unless otherwise noted)

Parameter Symbol Value Unit
Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2) PPPM 5000 W
Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3) IPP See Next Table A
Power Dissipation on Infinite Heat Sink at TL=75℃ PM(AV) 6.5 W
Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 300 A
Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only (Note 4) VF 3.5/5.0 V
Operating junction and Storage Temperature Range. TJ , TSTG -55 to +150 ℃

Notes:

1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25℃ per Fig. 2.

2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.

4. VF < 3.5V for VBR < 200V and VF< 6.5V for VBR > 201V.
