Home /Products/TVS Diodes/5000W High Power Surface Mount TVS 5.0SMDJ Series 5.0SMDJ12A 12VRWM

5000W High Power Surface Mount TVS 5.0SMDJ Series 5.0SMDJ12A 12VRWM

500PCS
MOQ
Negotiable
Price
5000W High Power Surface Mount TVS 5.0SMDJ Series 5.0SMDJ12A 12VRWM
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: TVS Diodes
Package Type: DO-214AB/SMC
Vrwm: 12.0V
Vbr@It (Min.): 13.30V
Vbr@It (Max.): 14.70V
It: 1mA
Vc@Ipp: 19.9V
Ipp: 253.77A
Ir@Vrwm: 800μA
Storage Temperature Range: -55 To +150 ℃
Highlight:

5000W Surface Mount TVS

,

Surface Mount TVS 12VRWM
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: 5.0SMDJ12A
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

5000W High-power 5.0SMDJ Series TVS Diode 5.0SMDJ12A Surface Mount TVS 12VRWM



DATASHEET:  5.0SMDJ_v2107.1 .pdf





Description:

The 5.0SMDJ series TVS transient suppression diode product is a new type of high-efficiency circuit protection device developed by SOCAY for the special needs of the automotive industry. It has extremely fast response time (sub-nanosecond level) and very high surge absorption capability. Designed specifically to protect sensitive electronic equipment in automotive electronics applications from voltage transients caused by lightning strikes and other transient voltage events.



Part Number Marking

Reverse

Stand-Off

Voltage VRWM (V)

Breakdown

Voltage VBR (V)

@IT

Test

Current

IT (mA)

Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
— 5.0SMDJ8.0CA — 5BDP 8.0 8.89 9.83 1 13.6 367.60 100
5.0SMDJ11A 5.0SMDJ11CA 5PDX 5BDX 11.0 12.20 13.50 1 18.2 277.47 800
5.0SMDJ12A 5.0SMDJ12CA 5PDZ 5BDZ 12.0 13.30 14.70 1 19.9 253.77 800
5.0SMDJ13A 5.0SMDJ13CA 5PEE 5BEE 13.0 14.40 15.90 1 21.5 234.88 500
5.0SMDJ14A 5.0SMDJ14CA 5PEG 5BEG 14.0 15.60 17.20 1 23.2 217.67 200
5.0SMDJ15A 5.0SMDJ15CA 5PEK 5BEK 15.0 16.70 18.50 1 24.4 206.97 100
5.0SMDJ16A 5.0SMDJ16CA 5PEM 5BEM 16.0 17.80 19.70 1 26.0 194.23 50
5.0SMDJ17A 5.0SMDJ17CA 5PEP 5BEP 17.0 18.90 20.90 1 27.6 182.97 20
5.0SMDJ18A 5.0SMDJ18CA 5PER 5BER 18.0 20.00 22.10 1 29.2 172.95 10
5.0SMDJ19A 5.0SMDJ19CA 5PET 5BET 19.0 21.10 23.30 1 30.8 164.07 10
5.0SMDJ20A 5.0SMDJ20CA 5PEV 5BEV 20.0 22.20 24.50 1 32.4 155.86 5
5.0SMDJ22A 5.0SMDJ22CA 5PEX 5BEX 22.0 24.40 26.90 1 35.5 142.25 5
5.0SMDJ24A 5.0SMDJ24CA 5PEZ 5BEZ 24.0 26.70 29.50 1 38.9 129.82 5
5.0SMDJ26A 5.0SMDJ26CA 5PFE 5BFE 26.0 28.90 31.90 1 42.1 119.95 5
5.0SMDJ28A 5.0SMDJ28CA 5PFG 5BFG 28.0 31.10 34.40 1 45.4 111.23 5
5.0SMDJ30A 5.0SMDJ30CA 5PFK 5BFK 30.0 33.30 36.80 1 48.4 104.34 5
5.0SMDJ33A 5.0SMDJ33CA 5PFM 5BFM 33.0 36.70 40.60 1 53.3 94.75 5
5.0SMDJ36A 5.0SMDJ36CA 5PFP 5BFP 36.0 40.00 44.20 1 58.1 86.92 5
5.0SMDJ40A 5.0SMDJ40CA 5PFR 5BFR 40.0 44.40 49.10 1 64.5 78.29 5
5.0SMDJ43A 5.0SMDJ43CA 5PFT 5BFT 43.0 47.80 52.80 1 69.4 72.77 5
5.0SMDJ45A 5.0SMDJ45CA 5PFV 5BFV 45.0 50.00 55.30 1 72.7 69.46 5
5.0SMDJ48A 5.0SMDJ48CA 5PFX 5BFX 48.0 53.30 58.90 1 77.4 65.25 5
5.0SMDJ51A 5.0SMDJ51CA 5PFZ 5BFZ 51.0 56.70 62.70 1 82.4 61.29 5
5.0SMDJ54A 5.0SMDJ54CA 5PGE 5BGE 54.0 60.00 66.30 1 87.1 57.98 5
5.0SMDJ58A 5.0SMDJ58CA 5PGG 5BGG 58.0 64.40 71.20 1 93.6 53.95 5
5.0SMDJ60A 5.0SMDJ60CA 5PGK 5BGK 60.0 66.70 73.70 1 96.8 52.17 5
5.0SMDJ64A 5.0SMDJ64CA 5PGM 5BGM 64.0 71.10 78.60 1 103.0 49.03 5
5.0SMDJ70A 5.0SMDJ70CA 5PGP 5BGP 70.0 77.80 86.00 1 113.0 44.69 5
5.0SMDJ75A 5.0SMDJ75CA 5PGR 5BGR 75.0 83.30 92.10 1 121.0 41.74 5
5.0SMDJ78A 5.0SMDJ78CA 5PGT 5BGT 78.0 86.70 95.80 1 126.0 40.08 5
5.0SMDJ80A 5.0SMDJ80CA 5PGB 5BGB 80.0 88.80 97.60 1 129.6 38.97 5
5.0SMDJ85A 5.0SMDJ85CA 5PGV 5BGV 85.0 94.40 104.00 1 137.0 36.86 5
5.0SMDJ90A 5.0SMDJ90CA 5PGX 5BGX 90.0 100.00 111.00 1 146.0 34.59 5
5.0SMDJ100A 5.0SMDJ100CA 5PGZ 5BGZ 100.0 111.00 123.00 1 162.0 31.17 5
5.0SMDJ110A 5.0SMDJ110CA 5PHE 5BHE 110.0 122.00 135.00 1 177.0 28.53 5
5.0SMDJ120A 5.0SMDJ120CA 5PHG 5BHG 120.0 133.00 147.00 1 193.0 26.17 5
5.0SMDJ130A 5.0SMDJ130CA 5PHK 5BHK 130.0 144.00 159.00 1 209.0 24.16 5
5.0SMDJ140A 5.0SMDJ140CA 5PHB 5BHB 140.0 155.00 171.00 1 226.8 22.27 5
5.0SMDJ150A 5.0SMDJ150CA 5PHM 5BHM 150.0 167.00 185.00 1 243.0 20.78 5
5.0SMDJ160A 5.0SMDJ160CA 5PHP 5BHP 160.0 178.00 197.00 1 259.0 19.50 5
5.0SMDJ170A 5.0SMDJ170CA 5PHR 5BHR 170.0 189.00 209.00 1 275.0 18.36 5
5.0SMDJ180A 5.0SMDJ180CA 5PHT 5BHT 180.0 201.00 220.00 1 291.6 17.32 5
5.0SMDJ190A 5.0SMDJ190CA 5PHV 5BHV 190.0 211.00 232.00 1 307.8 16.41 5
5.0SMDJ200A 5.0SMDJ200CA 5PHW 5BHW 200.0 224.00 247.00 1 324.0 9.26 5
5.0SMDJ220A 5.0SMDJ220CA 5PHX 5BHX 220.0 246.00 272.00 1 356.0 8.43 5
5.0SMDJ250A 5.0SMDJ250CA 5PHZ 5BHZ 250.0 279.00 309.00 1 405.0 7.41 5
5.0SMDJ300A 5.0SMDJ300CA 5PJE 5BJE 300.0 335.00 371.00 1 486.0 6.17 5
5.0SMDJ350A 5.0SMDJ350CA 5PJG 5BJG 350.0 391.00 432.00 1 567.0 5.29 5
5.0SMDJ400A 5.0SMDJ400CA 5PJK 5BJK 400.0 447.00 494.00 1 648.0 4.63 5
5.0SMDJ440A 5.0SMDJ440CA 5PJM 5BJM 440.0 492.00 543.00 1 713.0 4.21 5





Applications:

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications .





Maximum Ratings (TA=25℃ unless otherwise noted)

Parameter Symbol Value Unit
Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2) PPPM 5000 W
Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3) IPP See Next Table A
Power Dissipation on Infinite Heat Sink at TL=75℃ PM(AV) 6.5 W
Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 300 A
Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only (Note 4) VF 3.5/5.0 V
Operating junction and Storage Temperature Range. TJ , TSTG -55 to +150 ℃

Notes:

1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25℃ per Fig. 2.

2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.

4. VF < 3.5V for VBR < 200V and VF< 6.5V for VBR > 201V.

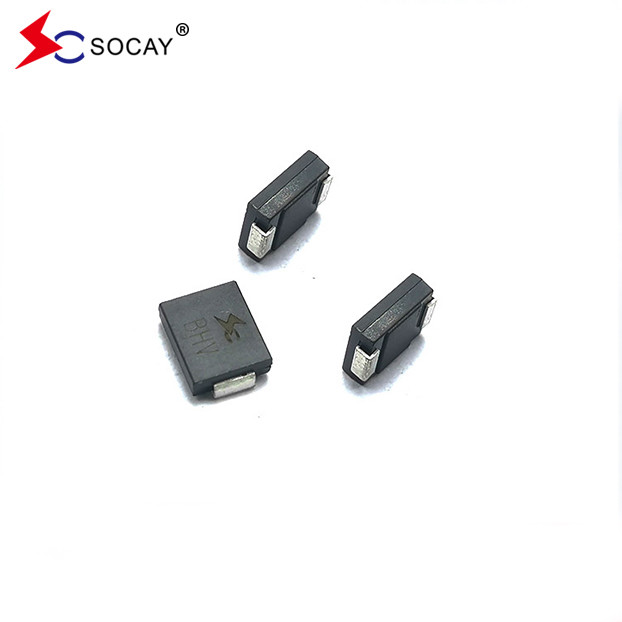

5000W High Power Surface Mount TVS 5.0SMDJ Series 5.0SMDJ12A 12VRWM 0



5000W High Power Surface Mount TVS 5.0SMDJ Series 5.0SMDJ12A 12VRWM 1

5000W High Power Surface Mount TVS 5.0SMDJ Series 5.0SMDJ12A 12VRWM 2



5000W High Power Surface Mount TVS 5.0SMDJ Series 5.0SMDJ12A 12VRWM 3



5000W High Power Surface Mount TVS 5.0SMDJ Series 5.0SMDJ12A 12VRWM 4

5000W High Power Surface Mount TVS 5.0SMDJ Series 5.0SMDJ12A 12VRWM 5

5000W High Power Surface Mount TVS 5.0SMDJ Series 5.0SMDJ12A 12VRWM 6





SOCAY's main products include a full range of Ceramic Gas Discharge Tubes (GDT), Transient Suppression Diodes (TVS Diodes), ESD Suppressor, Thyristor Surge Suppressors (TSS), Spark Gap Protectors (SPG), Varistors (MOV), Chip Varistors (MLV), PTC Resettable Fuse, Negative Temperature Coefficient thermistors (NTC Thermistors), Chip Bead, Schottky Diodes , Zener Diode, etc. From circuit design to product testing (and provide test reports), we will provide you with one-stop services in the field of circuit protection. With excellent quality and service, SOCAY has won extensive praise from customers and respect from the industry.
