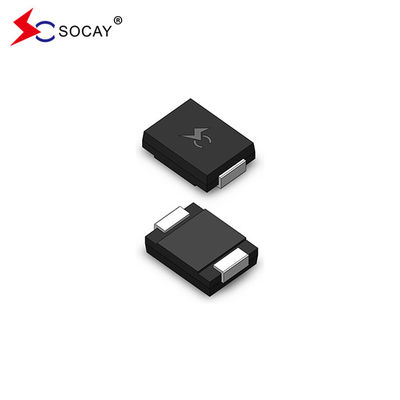

3000W SMDJ Series SMDJ5.0A Surface Mount TVS Diode VRWM 5.0V Transient Voltage Suppressor
DATASHEET: SMDJ_v2107.1 .pdf
Description:
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
|
Part Number
|
Marking
|
Reverse Stand-Off Voltage VRWM (V)
|
Breakdown Voltage VBR (V)
@IT
|
Test Current IT
(mA)
|
Maximum Clamping Voltage VC
@IPP (V)
|
Maximum Peak Pulse Current IPP (A)
|
Maximum Reverse Leakage IR
@VRWM (μA)
|
|
Uni
|
Bi
|
Uni
|
Bi
|
|
MIN
|
MAX
|
|
|
|
|
| SMDJ5.0A |
SMDJ5.0CA |
RDE |
DDE |
5.0 |
6.40 |
7.00 |
10 |
9.2 |
326.09 |
1000 |
| SMDJ6.0A |
SMDJ6.0CA |
RDG |
DDG |
6.0 |
6.67 |
7.37 |
10 |
10.3 |
291.26 |
1000 |
| SMDJ6.5A |
SMDJ6.5CA |
RDK |
DDK |
6.5 |
7.22 |
7.98 |
10 |
11.2 |
267.86 |
500 |
| SMDJ7.0A |
SMDJ7.0CA |
PDM |
DDM |
7.0 |
7.78 |
8.60 |
10 |
12.0 |
250.00 |
200 |
| SMDJ7.5A |
SMDJ7.5CA |
PDP |
DDP |
7.5 |
8.33 |
9.21 |
1 |
12.9 |
232.56 |
100 |
| SMDJ8.0A |
SMDJ8.0CA |
PDR |
DDR |
8.0 |
8.89 |
9.83 |
1 |
13.6 |
220.59 |
50 |
| SMDJ8.5A |
SMDJ8.5CA |
PDT |
DDT |
8.5 |
9.44 |
10.40 |
1 |
14.4 |
208.33 |
25 |
| SMDJ9.0A |
SMDJ9.0CA |
PDV |
DDV |
9.0 |
10.00 |
11.10 |
1 |
15.4 |
194.81 |
10 |
| SMDJ10A |
SMDJ10CA |
PDX |
DDX |
10.0 |
11.10 |
12.30 |
1 |
17.0 |
176.47 |
5 |
| SMDJ11A |
SMDJ11CA |
PDZ |
DDZ |
11.0 |
12.20 |
13.50 |
1 |
18.2 |
164.84 |
5 |
| SMDJ12A |
SMDJ12CA |
PEE |
DEE |
12.0 |
13.30 |
14.70 |
1 |
19.9 |
150.75 |
5 |
| SMDJ13A |
SMDJ13CA |
PEG |
DEG |
13.0 |
14.40 |
15.90 |
1 |
21.5 |
139.53 |
5 |
| SMDJ14A |
SMDJ14CA |
PEK |
DEK |
14.0 |
15.60 |
17.20 |
1 |
23.2 |
129.31 |
5 |
| SMDJ15A |
SMDJ15CA |
PEM |
DEM |
15.0 |
16.70 |
18.50 |
1 |
24.4 |
122.95 |
5 |
| SMDJ16A |
SMDJ16CA |
PEP |
DEP |
16.0 |
17.80 |
19.70 |
1 |
26.0 |
115.38 |
5 |
| SMDJ17A |
SMDJ17CA |
PER |
DER |
17.0 |
18.90 |
20.90 |
1 |
27.6 |
108.70 |
5 |
| SMDJ18A |
SMDJ18CA |
PET |
DET |
18.0 |
20.00 |
22.10 |
1 |
29.2 |
102.74 |
5 |
| SMDJ19A |
SMDJ19CA |
PEB |
DEB |
19.0 |
21.10 |
23.30 |
1 |
30.8 |
97.47 |
5 |
| SMDJ20A |
SMDJ20CA |
PEV |
DEV |
20.0 |
22.20 |
24.50 |
1 |
32.4 |
92.59 |
5 |
| SMDJ22A |
SMDJ22CA |
PEX |
DEX |
22.0 |
24.40 |
26.90 |
1 |
35.5 |
84.51 |
5 |
| SMDJ24A |
SMDJ24CA |
PEZ |
DEZ |
24.0 |
26.70 |
29.50 |
1 |
38.9 |
77.12 |
5 |
| SMDJ26A |
SMDJ26CA |
PFE |
DFE |
26.0 |
28.90 |
31.90 |
1 |
42.1 |
71.26 |
5 |
| SMDJ28A |
SMDJ28CA |
PFG |
DFG |
28.0 |
31.10 |
34.40 |
1 |
45.4 |
66.08 |
5 |
| SMDJ30A |
SMDJ30CA |
PFK |
DFK |
30.0 |
33.30 |
36.80 |
1 |
48.4 |
61.98 |
5 |
| SMDJ33A |
SMDJ33CA |
PFM |
DFM |
33.0 |
36.70 |
40.60 |
1 |
53.3 |
56.29 |
5 |
| SMDJ36A |
SMDJ36CA |
PFP |
DFP |
36.0 |
40.00 |
44.20 |
1 |
58.1 |
51.64 |
5 |
| SMDJ40A |
SMDJ40CA |
PFR |
DFR |
40.0 |
44.40 |
49.10 |
1 |
64.5 |
46.51 |
5 |
| SMDJ43A |
SMDJ43CA |
PFT |
DFT |
43.0 |
47.80 |
52.80 |
1 |
69.4 |
43.23 |
5 |
| SMDJ45A |
SMDJ45CA |
PFV |
DFV |
45.0 |
50.00 |
55.30 |
1 |
72.7 |
41.27 |
5 |
| SMDJ48A |
SMDJ48CA |
PFX |
DFX |
48.0 |
53.30 |
58.90 |
1 |
77.4 |
38.76 |
5 |
| SMDJ51A |
SMDJ51CA |
PFZ |
DFZ |
51.0 |
56.70 |
62.70 |
1 |
82.4 |
36.41 |
5 |
| SMDJ54A |
SMDJ54CA |
RGE |
DGE |
54.0 |
60.00 |
66.30 |
1 |
87.1 |
34.44 |
5 |
| SMDJ58A |
SMDJ58CA |
PGG |
DGG |
58.0 |
64.40 |
71.20 |
1 |
93.6 |
32.05 |
5 |
| SMDJ60A |
SMDJ60CA |
PGK |
DGK |
60.0 |
66.70 |
73.70 |
1 |
96.8 |
30.99 |
5 |
| SMDJ64A |
SMDJ64CA |
PGM |
DGM |
64.0 |
71.10 |
78.60 |
1 |
103.0 |
29.13 |
5 |
| SMDJ70A |
SMDJ70CA |
PGP |
DGP |
70.0 |
77.80 |
86.00 |
1 |
113.0 |
26.55 |
5 |
| SMDJ75A |
SMDJ75CA |
PGR |
DGR |
75.0 |
83.30 |
92.10 |
1 |
121.0 |
24.79 |
5 |
| SMDJ78A |
SMDJ78CA |
PGT |
DGT |
78.0 |
86.70 |
95.80 |
1 |
126.0 |
23.81 |
5 |
| SMDJ80A |
SMDJ80CA |
PGB |
DGB |
80.0 |
88.80 |
97.60 |
1 |
129.6 |
23.15 |
5 |
| SMDJ85A |
SMDJ85CA |
PGV |
DGV |
85.0 |
94.40 |
104.00 |
1 |
137.0 |
21.90 |
5 |
| SMDJ90A |
SMDJ90CA |
PGX |
DGX |
90.0 |
100.00 |
111.00 |
1 |
146.0 |
20.55 |
5 |
| SMDJ100A |
SMDJ100CA |
PGZ |
DGZ |
100.0 |
111.00 |
123.00 |
1 |
162.0 |
18.52 |
5 |
| SMDJ110A |
SMDJ110CA |
PHE |
DHE |
110.0 |
122.00 |
135.00 |
1 |
177.0 |
16.95 |
5 |
| SMDJ120A |
SMDJ120CA |
PHG |
DHG |
120.0 |
133.00 |
147.00 |
1 |
193.0 |
15.54 |
5 |
| SMDJ130A |
SMDJ130CA |
PHK |
DHK |
130.0 |
144.00 |
159.00 |
1 |
209.0 |
14.35 |
5 |
| SMDJ140A |
SMDJ140CA |
PHB |
DHB |
140.0 |
155.00 |
171.00 |
1 |
226.8 |
13.23 |
5 |
| SMDJ150A |
SMDJ150CA |
PHM |
DHM |
150.0 |
167.00 |
185.00 |
1 |
243.0 |
12.35 |
5 |
| SMDJ160A |
SMDJ160CA |
PHP |
DHP |
160.0 |
178.00 |
197.00 |
1 |
259.0 |
11.58 |
5 |
| SMDJ170A |
SMDJ170CA |
PHR |
DHR |
170.0 |
189.00 |
209.00 |
1 |
275.0 |
10.91 |
5 |
| SMDJ180A |
SMDJ180CA |
PHT |
DHT |
180.0 |
201.00 |
220.00 |
1 |
291.6 |
10.29 |
5 |
| SMDJ190A |
SMDJ190CA |
PHV |
DHV |
190.0 |
211.00 |
232.00 |
1 |
307.8 |
9.75 |
5 |
| SMDJ200A |
SMDJ200CA |
PHW |
DHW |
200.0 |
224.00 |
247.00 |
1 |
324.0 |
9.26 |
5 |
| SMDJ220A |
SMDJ220CA |
PHX |
DHX |
220.0 |
246.00 |
272.00 |
1 |
356.0 |
8.43 |
5 |
| SMDJ250A |
SMDJ250CA |
PHZ |
DHZ |
250.0 |
279.00 |
309.00 |
1 |
405.0 |
7.41 |
5 |
| SMDJ300A |
SMDJ300CA |
PJE |
DJE |
300.0 |
335.00 |
371.00 |
1 |
486.0 |
6.17 |
5 |
| SMDJ350A |
SMDJ350CA |
PJG |
DJG |
350.0 |
391.00 |
432.00 |
1 |
567.0 |
5.29 |
5 |
| SMDJ400A |
SMDJ400CA |
PJK |
DJK |
400.0 |
447.00 |
494.00 |
1 |
648.0 |
4.63 |
5 |
| SMDJ440A |
SMDJ440CA |
PJM |
DJM |
440.0 |
492.00 |
543.00 |
1 |
713.0 |
4.21 |
5 |
Notes:
1. 1.Suffix 'A ' denotes 5% tolerance device.
2. 2.Add suffix ' CA ' after part number to specify Bi-directional devices.
3.For Bi-Directional devices having VR of 10 volts and under, the IR limit is double.
Features:
For surface mounted applications in order to optimize board space
Low leakage
Uni and Bidirectional unit
Glass passivated junction
Low inductance
Excellent clamping capability
3000W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%
Fast response time: typically less than 1.0ps from 0 Volts to VBR min
Typical IR less than 5μA above 12V.
High Temperature soldering: 260°C/40 seconds at terminals
Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT
Plastic package has Underwriters Laboratory Flammability 94V-0
Matte tin lead–free Plated
Halogen free and RoHS compliant
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
Applications:
TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications .
| Parameter |
Symbol |
Value |
Unit |
| Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2) |
PPPM |
3000 |
Watts |
| Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3) |
IPP |
See Next Table |
Amps |
| Power Dissipation on Infinite Heat Sink at TL=75°C |
PM(AV) |
6.0 |
Watt |
| Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) |
IFSM |
300 |
Amps |
| Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only (Note 4) |
VF |
3.5/5.0 |
Voltage |
| Operating junction and Storage Temperature Range. |
TJ , TSTG |
-55 to +150 |
℃ |
|
Notes:
1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25℃ per Fig. 2.
2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.
4. VF < 3.5V for VBR < 200V and VF< 6.5V for VBR > 201V.
|
