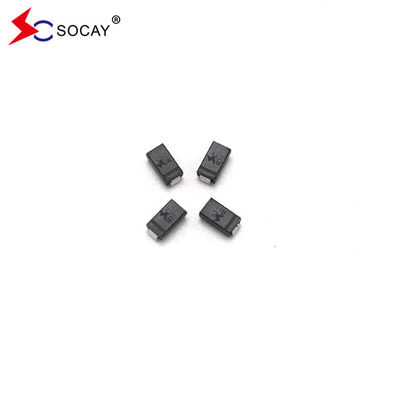

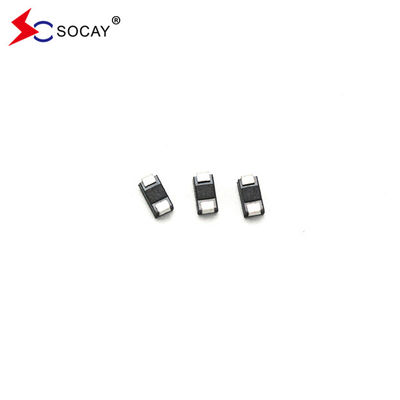

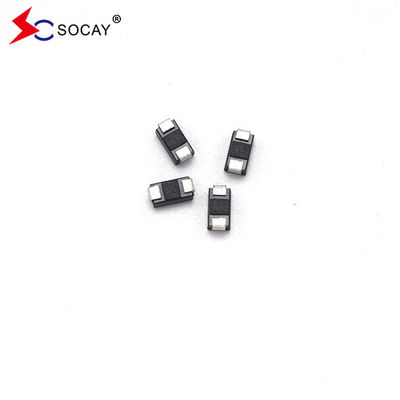

Fast Delivery Time SOCAY DO-214AC/SMA Package SMD TVS Diode SMAJ440A 713VC 400W Peak Power Capability

5000PCS
MOQ
Negotiable
Price
Fast Delivery Time SOCAY DO-214AC/SMA Package SMD TVS Diode SMAJ440A 713VC 400W Peak Power Capability
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: TVS Diodes
SMAJ440A Package Type: DO-214AC/SMA
SMAJ440A Vrwm: 440.0V
Vbr@It (Min.): 492.0V
Vbr@It (Max.): 543.0V
SMAJ440A It: 1mA
Vc@Ipp: 713.0V
SMAJ440A Ipp: 0.56A
Ir@Vrwm: 5μA
Storage Temperature Range: -55 To +150 ℃
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMAJ440A
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

Fast Delivery Time SOCAY DO-214AC/SMA Package SMD TVS Diode SMAJ440A 713VC 400W Peak Power Capability



DATASHEET:  SMAJ_v2207.1.pdf





SMAJ Series 3.3 To 440V 400W TVS Description:

From circuit design to product testing (and provide test reports), we will provide you with one-stop services in the field of circuit protection. With excellent quality and service, SOCAY has won extensive praise from customers and respect from the industry. The SMAJ series 3.3 To 440V 400W TVS is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

TVS Part Number TVS Marking

TVS Reverse

Stand-Off

Voltage VRWM (V)

TVS Breakdown

Voltage VBR (V)

@IT

TVS Test

Current

IT (mA)

TVS Maximum

Clamping

Voltage VC @IPP (V)

TVS Maximum

Peak

Pulse

Current IPP (A)

TVS Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMAJ400A SMAJ400CA DK HK 400.0 447.00 494.00 1 648.0 0.62 5
SMAJ440A SMAJ440CA DM HM 440.0 492.00 543.00 1 713.0 0.56 5
