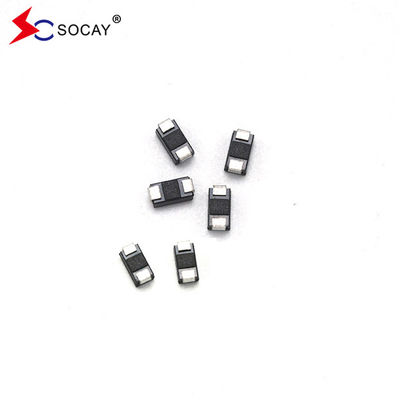

Large Stock of Goods, Bi-directional SMD TVS Diode SMAJ400CA, 648VC IPP 0.62A 400W

Large Stock of Goods, Bi-directional SMD TVS Diode SMAJ400CA, 648VC IPP0.62A  400W

Bi-directional SMD TVS Diode SMAJ400CA DATASHEET:  SMAJ_v2207.1.pdf

Bi-directional SMD TVS Diode SMAJ400CA Features:

u SMD TVS Diode SMAJ400CA is For surface mounted applications in order to optimize board space

u Low leakage

u Uni and Bidirectional unit

u Glass passivated junction

u SMD TVS Diode SMAJ400CA has Low inductance

u Excellent clamping capability

u Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01% is 400W

u SMD TVS Diode SMAJ400CA 's Fast response time: typically less than 1.0ps from 0 Volts to VBR min

u SMD TVS Diode SMAJ400CA 's Typical IR less than 5μA above 12V

u High Temperature soldering: 260°C/40 seconds at terminals

u Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT

u SMD TVS Diode SMAJ400CA 's Plastic package has Underwriters Laboratory Flammability 94V-0

u Matte tin lead–free Plated

u Halogen free and RoHS compliant

u Typical failure mode is short from over-specified voltage or current

u Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

u IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)

u SMD TVS Diode SMAJ400CA 's ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)

u EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
