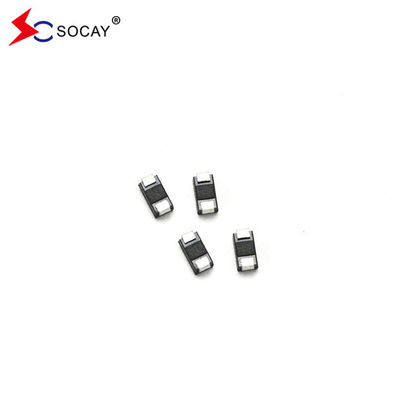

SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection

5000PCS
MOQ
Negotiable
Price
SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection
Features Gallery Product Description Request A Quote
Features
Specifications
SMAJ58CA Name: TVS Diodes
Package Type: DO-214AC/SMA
SMAJ58CA Vrwm: 58.0V
Vbr@It (Min.): 64.40V
Vbr@It (Max.): 71.20V
SMAJ58CA It: 1mA
SMAJ58CA Vc@Ipp: 93.6V
SMAJ58CA Ipp: 4.27A
Ir@Vrwm: 5μA
SMAJ58CA Storage Temperature Range: -55 To +150 ℃
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMAJ58CA
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection



Transient Voltage Suppressor SMAJ58CA DATASHEET:  SMAJ_v2207.1.pdf







Transient Voltage Suppressor SMAJ58CA Explanation:

The Transient Voltage Suppress or diode (also known as a TVS Diode, transil or thyrector) SMAJ58CA is a protection diode designed to protect electronic circuits against transients and overvoltage threats such as EFT (electrically fast transients) and ESD (electro-static discharge).The Transient Voltage Suppressor SMAJ58CA is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.



Part Number Marking

Reverse

Stand-Off

Voltage VRWM (V)

Breakdown

Voltage VBR (V)

@IT

Test

Current

IT (mA)

Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMAJ45A SMAJ45CA CV YV 45.0 50.00 55.30 1 72.7 5.50 5
SMAJ48A SMAJ48CA CX YX 48.0 53.30 58.90 1 77.4 5.17 5
SMAJ51A SMAJ51CA CZ YZ 51.0 56.70 62.70 1 82.4 4.85 5
SMAJ54A SMAJ54CA RE ZE 54.0 60.00 66.30 1 87.1 4.59 5
SMAJ58A SMAJ58CA RG ZG 58.0 64.40 71.20 1 93.6 4.27 5





SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 0



SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 1





SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 2







SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 3



SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 4

SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 5

SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 6

SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 7

SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 8

SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 9

SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 10

SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 11

SOCAY SMAJ Series Transient Voltage Suppressor SMAJ58CA Professional in Circuit Protection 12
