Home /Products/TVS Diodes/BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A

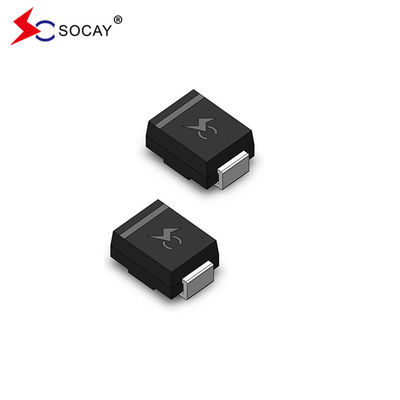

BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A

5000PCS
MOQ
Negotiable
Price
BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A
Features Gallery Product Description Request A Quote
Features
Specifications
SMBJ16A Name: TVS Diodes
SMBJ16A Package Type: DO-214AA/SMB
SMBJ16A Vrwm: 16V
SMBJ16A Vbr@It (Min.): 17.8V
SMBJ16A Vbr@It (Max.): 19.7V
SMBJ16A It: 1mA
SMBJ16A Vc@Ipp: 26V
SMBJ16A Ir@Vrwm: 5μA
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMBJ16A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: tape reel
Delivery Time: 1-2weeks
Payment Terms: T/T, Western Union
Supply Ability: 10000000pcs
Product Description

BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A



TVS Diode SMBJ16A DATASHEET:  SMBJ_v88.2.pdf







TVS Diode SMBJ16A Explanation:

The TVS Diode SMBJ16A is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.



TVS Diode Part Number Marking

TVS Diode Reverse

Stand-Off

Voltage VRWM (V)

TVS Diode Breakdown

Voltage VBR (V)

@IT

TVS Diode Test

Current

IT (mA)

TVS Diode Maximum

Clamping

Voltage VC @IPP (V)

TVS Diode Maximum

Peak

Pulse

Current IPP (A)

TVS Diode Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMBJ3.3A — K1 — 3.3 5.20 6.50 10 8.0 75.00 600
SMBJ5.0A SMBJ5.0CA KE AE 5.0 6.40 7.00 10 9.2 65.22 800
SMBJ6.0A SMBJ6.0CA KG AG 6.0 6.67 7.37 10 10.3 58.25 800
SMBJ6.5A SMBJ6.5CA KK AK 6.5 7.22 7.98 10 11.2 53.57 500
SMBJ7.0A SMBJ7.0CA KM AM 7.0 7.78 8.60 10 12.0 50.00 200
SMBJ7.5A SMBJ7.5CA KP AP 7.5 8.33 9.21 1 12.9 46.51 100
SMBJ8.0A SMBJ8.0CA KR AR 8.0 8.89 9.83 1 13.6 44.12 50
SMBJ8.5A SMBJ8.5CA KT AT 8.5 9.44 10.40 1 14.4 41.67 10
SMBJ9.0A SMBJ9.0CA KV AV 9.0 10.00 11.10 1 15.4 38.96 5
SMBJ10A SMBJ10CA KX AX 10.0 11.10 12.30 1 17.0 35.29 5
SMBJ11A SMBJ11CA KZ WZ 11.0 12.20 13.50 1 18.2 32.97 5
SMBJ12A SMBJ12CA LE BE 12.0 13.30 14.70 1 19.9 30.15 5
SMBJ13A SMBJ13CA LG BG 13.0 14.40 15.90 1 21.5 27.91 5
SMBJ14A SMBJ14CA LK BK 14.0 15.60 17.20 1 23.2 25.86 5
SMBJ15A SMBJ15CA LM BM 15.0 16.70 18.50 1 24.4 24.59 5
SMBJ16A SMBJ16CA LP BP 16.0 17.80 19.70 1 26.0 23.08 5



BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A 0

BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A 1





BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A 2



BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A 3

BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A 4

BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A 5

BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A 6

BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A 7

BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A 8



BOM List Service SMBJ16A DO-214AA Original Circuit Protection TVS Diode SMBJ16A 9







Tag:

Bi directional TVS Diode

TVS Component

TVS Diode SMD
