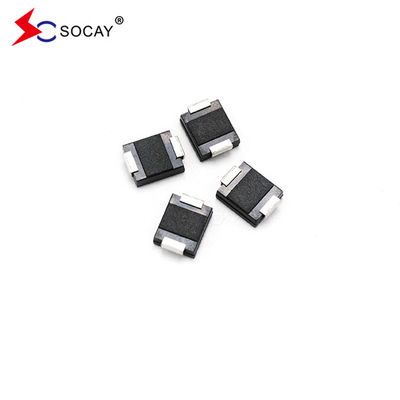

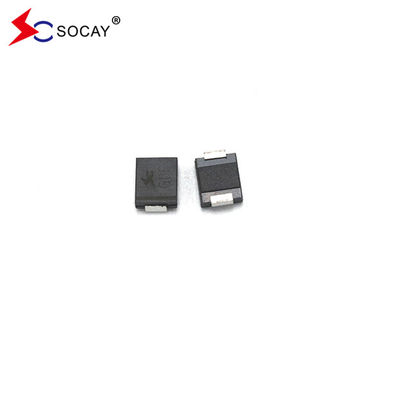

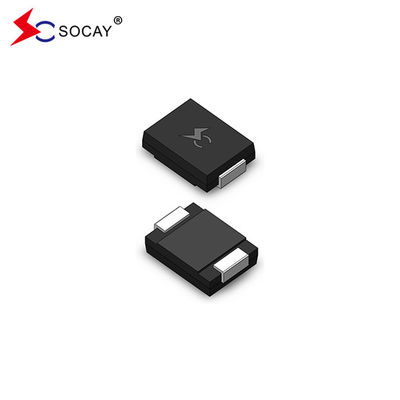

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized

3000PCS
MOQ
Negotiable
Price
Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized
Features Gallery Product Description Request A Quote
Features
Specifications
SMCJ5.0CA Name: TVS Diodes
SMCJ5.0CA Package Type: DO-214AB/SMC
SMCJ5.0CA Vrwm: 5.0V
SMCJ5.0CA Vbr@It (Min.): 6.40V
SMCJ5.0CA Vbr@It (Max.): 7.00V
SMCJ5.0CA It: 10mA
SMCJ5.0CA Vc@Ipp: 9.2V
SMCJ5.0CA Ipp: 163.04A
SMCJ5.0CA Ir@Vrwm: 1000μA
Storage Temperature Range: -55 To +150 ℃
Highlight:

Bidirectional TVS Diodes

,

TVS Diodes SMCJ5.0CA

,

TVS Transient Voltage Suppression
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMCJ5.0CA
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

Bi-directional TVS Diode SMCJ5.0CA, 9.2VC Rransient Voltage Suppressor, UL Recognized



DATASHEET:  SMCJ_v2107.1 .pdf





TVS Diode SMCJ5.0CA Description:

The TVS Diode SMCJ5.0CA is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.





TVS Diode SMCJ5.0CA  Maximum Ratings (TA=25℃ unless otherwise noted):

TVS Diode Parameter Symbol Value TVS Diode Unit
SMCJ5.0CA Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2) PPPM 1500 Watts
SMCJ5.0CA Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3) IPP See Next Table Amps
Power Dissipation on Infinite Heat Sink at TL=75°C PM(AV) 6.5 Watt
SMCJ5.0CA Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 200 Amps
Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only (Note 4) VF 3.5/5.0 Voltage
SMCJ5.0CA Operating junction and Storage Temperature Range. TJ , TSTG -55 to +150 ℃

Notes:

1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25℃ per Fig. 2.

2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.

4. VF < 3.5V for VBR < 200V and VF< 6.5V for VBR > 201V.







TVS Diode SMCJ5.0CA Electrical Characteristics (TA=25℃ unless otherwise noted):

TVS Diode Part Number Marking

TVS Diode Reverse

Stand-Off

Voltage VRWM (V)

TVS Diode Breakdown

Voltage VBR (V)

@IT

Test

Current

IT (mA)

TVS Diode Maximum

Clamping

Voltage VC @IPP (V)

TVS Diode Maximum

Peak Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMCJ5.0A SMCJ5.0CA GDE BDE 5.0 6.40 7.00 10 9.2 163.04 1000
SMCJ6.0A SMCJ6.0CA GDG BDG 6.0 6.67 7.37 10 10.3 145.63 1000
SMCJ6.5A SMCJ6.5CA GDK BDK 6.5 7.22 7.98 10 11.2 133.93 500
SMCJ7.0A SMCJ7.0CA GDM BDM 7.0 7.78 8.60 10 12.0 125.00 200
SMCJ7.5A SMCJ7.5CA GDP BDP 7.5 8.33 9.21 1 12.9 116.28 100
SMCJ8.0A SMCJ8.0CA GDR BDR 8.0 8.89 9.83 1 13.6 110.29 50
SMCJ8.5A SMCJ8.5CA GDT BDT 8.5 9.44 10.40 1 14.4 104.17 20
SMCJ9.0A SMCJ9.0CA GDV BDV 9.0 10.00 11.10 1 15.4 97.40 10
SMCJ10A SMCJ10CA GDX BDX 10.0 11.10 12.30 1 17.0 88.24 5





Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 0

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 1

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 2Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 3

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 4


Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 5

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 6

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 7



Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 8

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 9

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 10

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 11

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 12

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 13

Bidirectional TVS Diodes SMCJ5.0CA 9.2VC Transient Voltage Suppression UL Recognized 14
