Home /Products/TVS Diodes/TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet

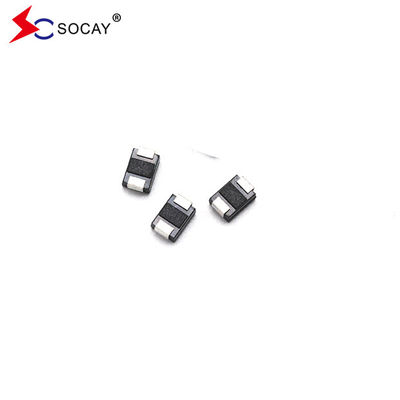

TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet

5000PCS
MOQ
Negotiable
Price
TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet
Features Gallery Product Description Request A Quote
Features
Specifications
SMBJ36A Name: TVS Diodes
SMBJ36A Package Type: DO-214AA/SMB
SMBJ36A Vrwm: 36V
SMBJ36A Vbr@It (Min.): 40V
SMBJ36A Vbr@It (Max.): 44.2V
SMBJ36A It: 1mA
SMBJ36A Vc@Ipp: 58.1V
SMBJ36A Ipp: 10.33A
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMBJ36A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: tape reel
Delivery Time: 1-2weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000000pcs
Product Description

TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet



TVS Diode Uni-directional DATASHEET:  SMBJ_v88.2.pdf





TVS Diode Uni-directional Maximum Ratings (TA=25℃ unless otherwise noted):

1. Peak Pulse Power Dissipation with a 10/1000µs waveform: 600 Watts

2. Peak Pulse Current with a 10/1000µs waveform: See Next Table

3. Power Dissipation on Infinite Heat Sink at TL=75°C: 5.0 Watts

4. Peak Forward Surge Current, 8.3ms Single Half Sine Wave: 100 Amps

5. Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only: 3.5/5.0 Voltage

6. Operating junction and Storage Temperature Range: -55 to +150 ℃



TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet 0

TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet 1





TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet 2



TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet 3

TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet 4

TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet 5

TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet 6

TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet 7

TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet 8



TVS Diode Uni-directional DO-214AA RoHS IN STOCK sample available SMBJ36A TVS 600w diode datasheet 9
