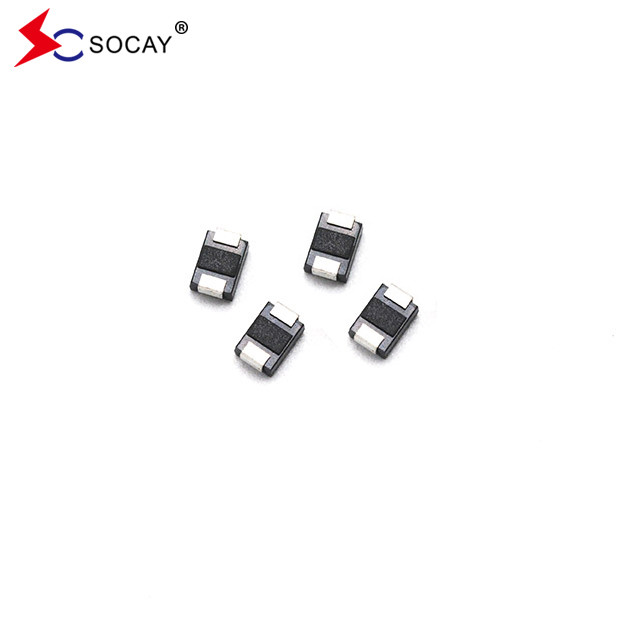

New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components

5000PCS
MOQ
Negotiable
Price
New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components
Features Gallery Product Description Request A Quote
Features
Specifications
SMBJ440CA Name: TVS Diodes
SMBJ440CA Package Type: DO-214AA/SMB
SMBJ440CA Vrwm: 440V
SMBJ440CA Vbr@It (Min.): 492V
SMBJ440CA Vbr@It (Max.): 543V
SMBJ440CA It: 1mA
SMBJ440CA Vc@Ipp: 713V
SMBJ440CA Ipp: 65.22A
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMBJ440CA
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: tape reel
Delivery Time: 1-2weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000000pcs
Product Description

New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components



SMBJ440A SMBJ440CA Diode DATASHEET:  SMBJ_v88.2.pdf





SMBJ440A SMBJ440CA Diode Description:

The SMBJ440A SMBJ440CA Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. SMBJ440A SMBJ440CA Diode TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.  Power Dissipation on Infinite Heat Sink at TL=75°C  is 5.0 Watt.



Diode Part Number Diode Marking

Diode Reverse

Stand-Off

Voltage VRWM (V)

Diode Breakdown

Voltage VBR (V)

@IT

Diode Test

Current

IT (mA)

Diode Maximum

Clamping

Voltage VC @IPP (V)

Diode Maximum

Peak

Pulse

Current IPP (A)

Diode Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMBJ400A SMBJ400CA QK FK 400.0 447.00 494.00 1 648.0 0.93 5
SMBJ440A SMBJ440CA QM FM 440.0 492.00 543.00 1 713.0 0.84 5



New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components 0

New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components 1





New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components 2



New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components 3

New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components 4

New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components 5

New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components 6

New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components 7

New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components 8



New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components 9
