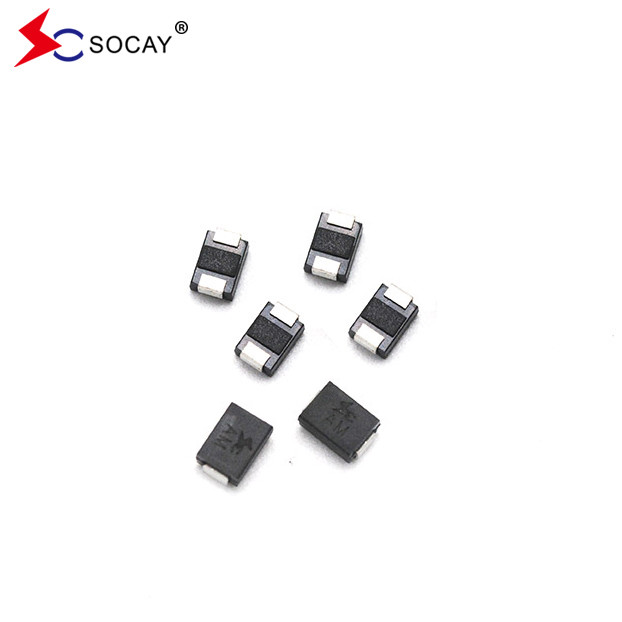

TVS DIODE SOCAY 5VWM 9.2VC DO214AA SMBJ5.0A SMBJ5.0CA PROTECTION DEVICE

TVS DIODE SOCAY 5VWM 9.2VC DO214AA SMBJ5.0A SMBJ5.0CA PROTECTION DEVICE

TVS DIODE DATASHEET:  SMBJ_v88.2.pdf

DO214AA SMBJ5.0A SMBJ5.0CA Features:

• DO214AA SMBJ5.0A SMBJ5.0CA are For surface mounted applications in order to optimize board space
• DO214AA SMBJ5.0A SMBJ5.0CA have Low leakage
• DO214AA SMBJ5.0A SMBJ5.0CA are Uni and Bidirectional unit
• Glass passivated junction
• DO214AA SMBJ5.0A SMBJ5.0CA have Low inductance
• DO214AA SMBJ5.0A SMBJ5.0CA have Excellent clamping capability
• DO214AA SMBJ5.0A SMBJ5.0CA have 600W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%
• DO214AA SMBJ5.0A SMBJ5.0CA 's Fast response time: typically less than 1.0ps from 0 Volts to VBR min
• Typical IR less than 5μA above 12V.
• High Temperature soldering: 260°C/40 seconds at terminals
• Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT
• Plastic package has Underwriters Laboratory Flammability 94V-0
• DO214AA SMBJ5.0A SMBJ5.0CA 's Matte tin lead–free Plated
• Halogen free and RoHS compliant
• DO214AA SMBJ5.0A SMBJ5.0CA 's Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
• EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

DO214AA SMBJ5.0A SMBJ5.0CA Electrical Characteristics (T_A=25℃ unless otherwise noted):
