Home /Products/TVS Diodes/ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand

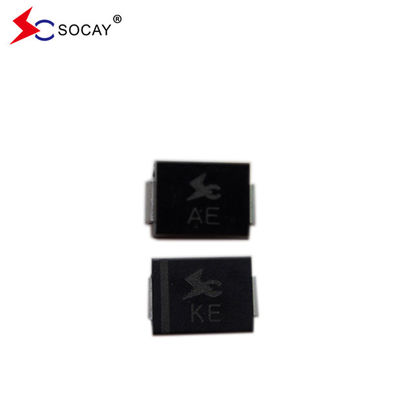

ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand

5000PCS
MOQ
Negotiable
Price
ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand
Features Gallery Product Description Request A Quote
Features
Specifications
SMBJ28CA Name: TVS Diodes
SMBJ28CA Package Type: DO-214AA/SMB
SMBJ28CA Vrwm: 28V
SMBJ28CA Vbr@It (Min.): 14.4V
SMBJ28CA Vbr@It (Max.): 31.10V
SMBJ28CA It: 1mA
SMBJ28CA Vc@Ipp: 45.4V
SMBJ28CA Ipp: 13.22A
Ir@Vrwm: 5μA
Storage Temperature Range: -55 To +150 ℃
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMBJ28CA
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: tape reel
Delivery Time: 1-2weeks
Payment Terms: T/T, Western Union
Supply Ability: 10000000pcs
Product Description

ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand



DATASHEET:  SMBJ_v88.2.pdf





TVS Diodes Description:

The Transient Voltage Suppress or diode (also known as a TVS Diode, transil or thyrector) DO-214AA-2 SMBJ28A is a protection diode designed to protect electronic circuits against transients and overvoltage threats such as EFT (electrically fast transients) and ESD (electro-static discharge).  Typical failure mode is short from over-specified voltage or current. The SMBJ series ESD Suppressors TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.



SMBJ series Part Number SMBJ series Marking

SMBJ series Reverse

Stand-Off

Voltage VRWM (V)

SMBJ series Breakdown

Voltage VBR (V)

@IT

SMBJ series Test

Current

IT (mA)

SMBJ series Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMBJ20A SMBJ20CA LV BV 20.0 22.20 24.50 1 32.4 18.52 5
SMBJ22A SMBJ22CA LX BX 22.0 24.40 26.90 1 35.5 16.90 5
SMBJ24A SMBJ24CA LZ BZ 24.0 26.70 29.50 1 38.9 15.42 5
SMBJ26A SMBJ26CA ME CE 26.0 28.90 31.90 1 42.1 14.25 5
SMBJ28A SMBJ28CA MG CG 28.0 31.10 34.40 1 45.4 13.22 5







ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand 0

ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand 1





ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand 2



ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand 3

ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand 4

ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand 5

ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand 6

ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand 7

ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand 8



ESD Suppressors TVS Diodes 28volts 5uA DO-214AA-2 SMBJ SMBJ28ACA SOCAY Brand 9
