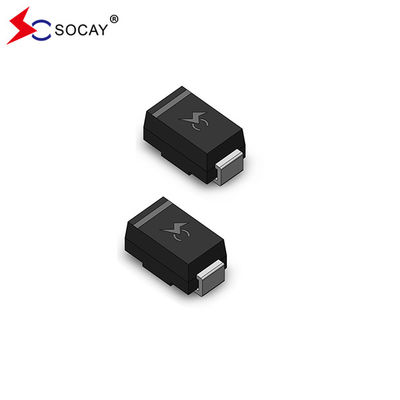

30V Surface Mount Transient Voltage Suppressor TVS SMAJ30A DO-214AC SMA

30V Surface Mount Transient Voltage Suppressor TVS SMAJ30A DO-214AC SMA

TVS SMAJ30A DATASHEET:  SMAJ_v2207.1.pdf

TVS SMAJ30A Summarized Account:

The TVS SMAJ30A is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Its Power Dissipation on Infinite Heat Sink at T_L=75°C is 1.0W. TVS SMAJ30A 's Peak Forward Surge Current 8.3ms Single Half Sine Wave is 40A.

TVS SMAJ30A Characteristics:

• TVS SMAJ30A is suitable for surface mounted applications in order to optimize board space
• TVS SMAJ30A has Low leakage
• TVS SMAJ30A is a Bidirectional unit
• TVS SMAJ30A is Glass passivated junction
• TVS SMAJ30A hasLow inductance
• TVS SMAJ30A has Excellent clamping capability
• TVS SMAJ30A 's Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01% is 400 Watts
• TVS SMAJ30A 's Fast response time: typically less than 1.0ps from 0 Volts to VBR min
• TVS SMAJ30A 's Typical IR less than 5μA above 12V
• TVS SMAJ30A 's High Temperature soldering: 260°C/40 seconds at terminals
• TVS SMAJ30A 's Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT
• TVS SMAJ30A 's Plastic package has Underwriters Laboratory Flammability 94V-0
• Matte tin lead–free Plated
• TVS SMAJ30A has Halogen free and RoHS compliant
• Typical failure mode is short from over-specified voltage or current
• TVS SMAJ30A 's Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
• EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

TVS SMAJ30A Electrical Characteristics (T_A=25℃ unless otherwise noted):
