Name: 24V Bi-directional TVS Diode SMAJ24CA, UL Recognized, Large Stock of Goods
Brand: SOCAY
SKU: SMAJ24CA
Rating: 4.6 (187 reviews)

24V Bi-directional TVS Diode SMAJ24CA, UL Recognized, Large Stock of Goods

5000PCS

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

SMAJ24CA Name: TVS Diodes

Package Type: DO-214AC/SMA

SMAJ24CA Vrwm: 24.0V

Vbr@It (Min.): 26.7V

Vbr@It (Max.): 29.50V

SMAJ24CA It: 1mA

SMAJ24CA Vc@Ipp: 38.9V

SMAJ24CA Ipp: 10.28A

SMAJ24CA Ir@Vrwm: 5μA

Storage Temperature Range: -55 To +150 ℃

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: SMAJ24CA

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

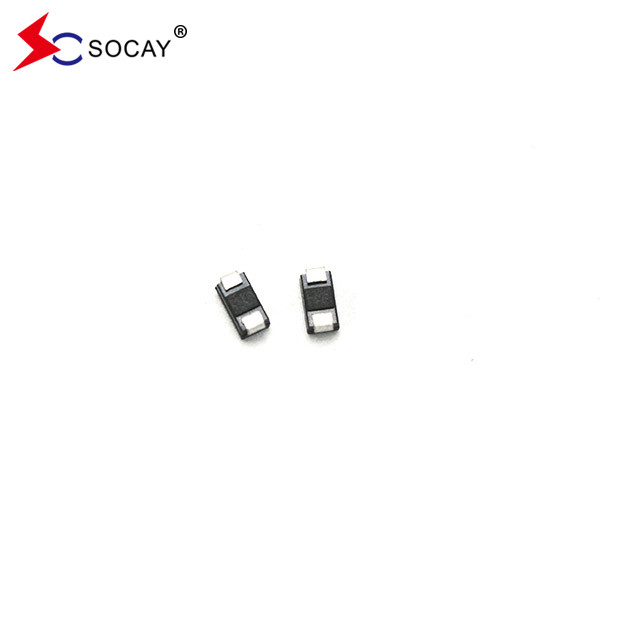

Gallery

24V Bi-directional TVS Diode SMAJ24CA, UL Recognized, Large Stock of Goods

Product Description

24V Bi-directional TVS Diode SMAJ24CA, UL Recognized, Large Stock of Goods

Bi-directional TVS Diode SMAJ24CA DATASHEET: SMAJ_v2207.1.pdf

Bi-directional TVS Diode SMAJ24CA Illustration:

TVS (Transient Voltage Suppressor) Bi-directional TVS Diode SMAJ24CAdiodes are components that are used to protect sensitive components such as semiconductors. Applications of Transient Voltage Suppressor Diode can be found in Data and Signal lines, Microprocessor and MOS memory, AC/DC power lines, and Telecommunication Equipments. Bi-directional TVS Diode SMAJ24CA 's main features: low clamping voltage, doesn't degrade, broad voltage spectrum,extremely fast reseponse time, limited surge current rating, high capacitance for low voltage types.

Diode Part Number		Diode Marking		Diode Reverse Stand-Off Voltage VRWM(V)	Diode Breakdown Voltage VBR (V) @IT		Diode Test Current IT (mA)	Diode Maximum Clamping Voltage VC @IPP (V)	Diode Maximum Peak Pulse Current IPP (A)	Diode Maximum Reverse Leakage IR @VRWM (μA)
Uni	Bi	Uni	Bi		MIN	MAX
SMAJ20A	SMAJ20CA	BV	XV	20.0	22.20	24.50	1	32.4	12.35	5
SMAJ22A	SMAJ22CA	BX	XX	22.0	24.40	26.90	1	35.5	11.27	5
SMAJ24A	SMAJ24CA	BZ	XZ	24.0	26.70	29.50	1	38.9	10.28	5
