400W 15V SMAJ15A SMD TVS Diode Transient Voltage Suppressor Low Inductance

5000PCS
MOQ
Negotiable
Price
400W 15V SMAJ15A SMD TVS Diode Transient Voltage Suppressor Low Inductance
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: TVS Diodes
Package Type: DO-214AC/SMA
Vrwm: 15V
Vbr@It (Min.): 16.70V
Vbr@It (Max.): 18.50V
It: 1mA
Vc@Ipp: 24.4V
Ipp: 16.39A
Ir@Vrwm: 5μA
Storage Temperature Range: -55 To +150 ℃
Highlight:

SMAJ15A SMD TVS Diode

,

15V SMD TVS Diode

,

400W TVS Transient Voltage Suppressor
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMAJ15A
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

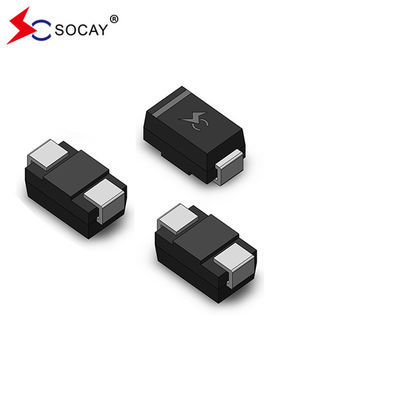

400W 15V Transient Voltage Suppressor SMAJ15A, SMD TVS, Low Inductance​



DATASHEET:  SMAJ_v2207.1.pdf



400W 15V SMAJ15A SMD TVS Diode Transient Voltage Suppressor Low Inductance 0

The SMAJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.



Part Number Marking

Reverse

Stand-Off

Voltage VRWM(V)

Breakdown

Voltage VBR (V)

@IT

Test

Current

IT (mA)

Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMAJ3.3A — A1 — 3.3 4.10 -- 1 8.0 50.00 600
SMAJ5.0A SMAJ5.0CA AE WE 5.0 6.40 7.00 10 9.2 43.48 800
SMAJ6.0A SMAJ6.0CA AG WG 6.0 6.67 7.37 10 10.3 38.83 800
SMAJ6.5A SMAJ6.5CA AK WK 6.5 7.22 7.98 10 11.2 35.71 500
SMAJ7.0A SMAJ7.0CA AM WM 7.0 7.78 8.60 10 12.0 33.33 200
SMAJ7.5A SMAJ7.5CA AP WP 7.5 8.33 9.21 1 12.9 31.01 100
SMAJ8.0A SMAJ8.0CA AR WR 8.0 8.89 9.83 1 13.6 29.41 50
SMAJ8.5A SMAJ8.5CA AT WT 8.5 9.44 10.40 1 14.4 27.78 10
SMAJ9.0A SMAJ9.0CA AV WV 9.0 10.00 11.10 1 15.4 25.97 5
SMAJ10A SMAJ10CA AX WX 10.0 11.10 12.30 1 17.0 23.53 5
SMAJ11A SMAJ11CA AZ WZ 11.0 12.20 13.50 1 18.2 21.98 5
SMAJ12A SMAJ12CA BE XE 12.0 13.30 14.70 1 19.9 20.10 5
SMAJ13A SMAJ13CA BG XG 13.0 14.40 15.90 1 21.5 18.60 5
SMAJ14A SMAJ14CA BK XK 14.0 15.60 17.20 1 23.2 17.24 5
SMAJ15A SMAJ15CA BM XM 15.0 16.70 18.50 1 24.4 16.39 5
SMAJ16A SMAJ16CA BP XP 16.0 17.80 19.70 1 26.0 15.38 5
SMAJ17A SMAJ17CA BR XR 17.0 18.90 20.90 1 27.6 14.49 5
SMAJ18A SMAJ18CA BT XT 18.0 20.00 22.10 1 29.2 13.70 5
SMAJ19A SMAJ19CA BB XB 19.0 21.10 23.30 1 30.8 13.00 5
SMAJ20A SMAJ20CA BV XV 20.0 22.20 24.50 1 32.4 12.35 5
SMAJ22A SMAJ22CA BX XX 22.0 24.40 26.90 1 35.5 11.27 5
SMAJ24A SMAJ24CA BZ XZ 24.0 26.70 29.50 1 38.9 10.28 5
SMAJ26A SMAJ26CA CE YE 26.0 28.90 31.90 1 42.1 9.50 5
SMAJ28A SMAJ28CA CG YG 28.0 31.10 34.40 1 45.4 8.81 5
SMAJ30A SMAJ30CA CK YK 30.0 33.30 36.80 1 48.4 8.26 5
SMAJ33A SMAJ33CA CM YM 33.0 36.70 40.60 1 53.3 7.50 5
SMAJ36A SMAJ36CA CP YP 36.0 40.00 44.20 1 58.1 6.88 5
SMAJ40A SMAJ40CA CR YR 40.0 44.40 49.10 1 64.5 6.20 5
SMAJ43A SMAJ43CA CT YT 43.0 47.80 52.80 1 69.4 5.76 5
SMAJ45A SMAJ45CA CV YV 45.0 50.00 55.30 1 72.7 5.50 5
SMAJ48A SMAJ48CA CX YX 48.0 53.30 58.90 1 77.4 5.17 5
SMAJ51A SMAJ51CA CZ YZ 51.0 56.70 62.70 1 82.4 4.85 5
SMAJ54A SMAJ54CA RE ZE 54.0 60.00 66.30 1 87.1 4.59 5
SMAJ58A SMAJ58CA RG ZG 58.0 64.40 71.20 1 93.6 4.27 5
SMAJ60A SMAJ60CA RK ZK 60.0 66.70 73.70 1 96.8 4.13 5
SMAJ64A SMAJ64CA RM ZM 64.0 71.10 78.60 1 103.0 3.88 5
SMAJ70A SMAJ70CA RP ZP 70.0 77.80 86.00 1 113.0 3.54 5
SMAJ75A SMAJ75CA RR ZR 75.0 83.30 92.10 1 121.0 3.31 5
SMAJ78A SMAJ78CA RT ZT 78.0 86.70 95.80 1 126.0 3.17 5
SMAJ80A SMAJ80CA RB ZB 80.0 88.80 97.60 1 129.6 3.09 5
SMAJ85A SMAJ85CA RV ZV 85.0 94.40 104.00 1 137.0 2.92 5
SMAJ90A SMAJ90CA RX ZX 90.0 100.00 111.00 1 146.0 2.74 5
SMAJ100A SMAJ100CA RZ ZZ 100.0 111.00 123.00 1 162.0 2.47 5
SMAJ110A SMAJ110CA SE VE 110.0 122.00 135.00 1 177.0 2.26 5
SMAJ120A SMAJ120CA SG VG 120.0 133.00 147.00 1 193.0 2.07 5
SMAJ130A SMAJ130CA SK VK 130.0 144.00 159.00 1 209.0 1.91 5
SMAJ140A SMAJ140CA SB VB 140.0 155.00 171.00 1 226.8 1.76 5
SMAJ150A SMAJ150CA SM VM 150.0 167.00 185.00 1 243.0 1.65 5
SMAJ160A SMAJ160CA SP VP 160.0 178.00 197.00 1 259.0 1.54 5
SMAJ170A SMAJ170CA SR VR 170.0 189.00 209.00 1 275.0 1.45 5
SMAJ180A SMAJ180CA ST VT 180.0 201.00 220.00 1 291.6 1.37 5
SMAJ190A SMAJ190CA SV VV 190.0 211.00 232.00 1 307.8 1.30 5
SMAJ200A SMAJ200CA SW VW 200.0 224.00 247.00 1 324.0 1.23 5
SMAJ220A SMAJ220CA SX VX 220.0 246.00 272.00 1 356.0 1.12 5
SMAJ250A SMAJ250CA SZ VZ 250.0 279.00 309.00 1 405.0 0.99 5
SMAJ300A SMAJ300CA DE HE 300.0 335.00 371.00 1 486.0 0.82 5
SMAJ350A SMAJ350CA DG HG 350.0 391.00 432.00 1 567.0 0.71 5
SMAJ400A SMAJ400CA DK HK 400.0 447.00 494.00 1 648.0 0.62 5
SMAJ440A SMAJ440CA DM HM 440.0 492.00 543.00 1 713.0 0.56 5

 Notes:

1.1.Suffix 'A ' denotes 5% tolerance device.

2. 2.Add suffix ' CA ' after part number to specify Bi-directional devices.

3. 3.For Bi-Directional devices having VR of 10 volts and under, the IR limit is double.
